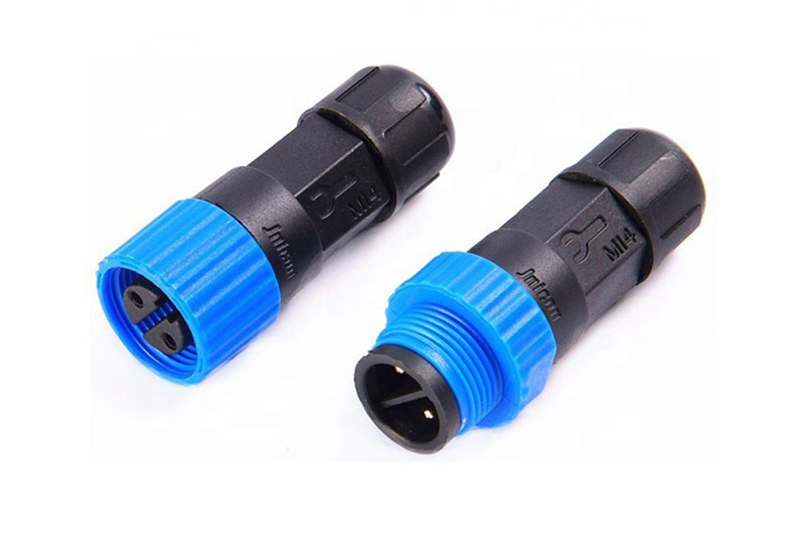

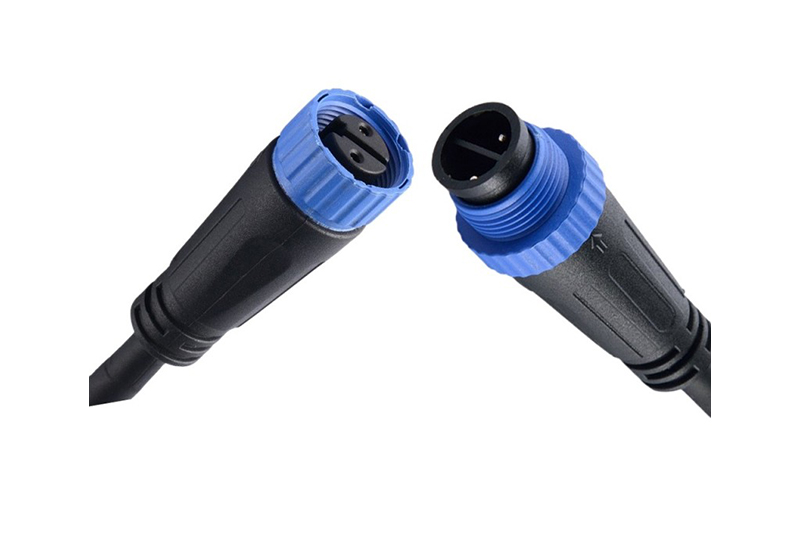

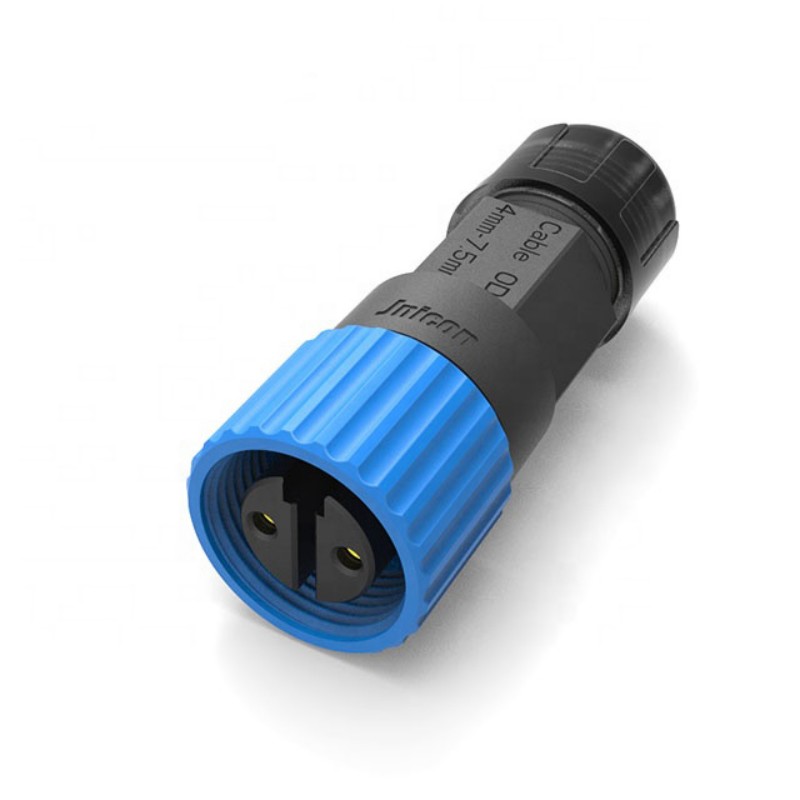

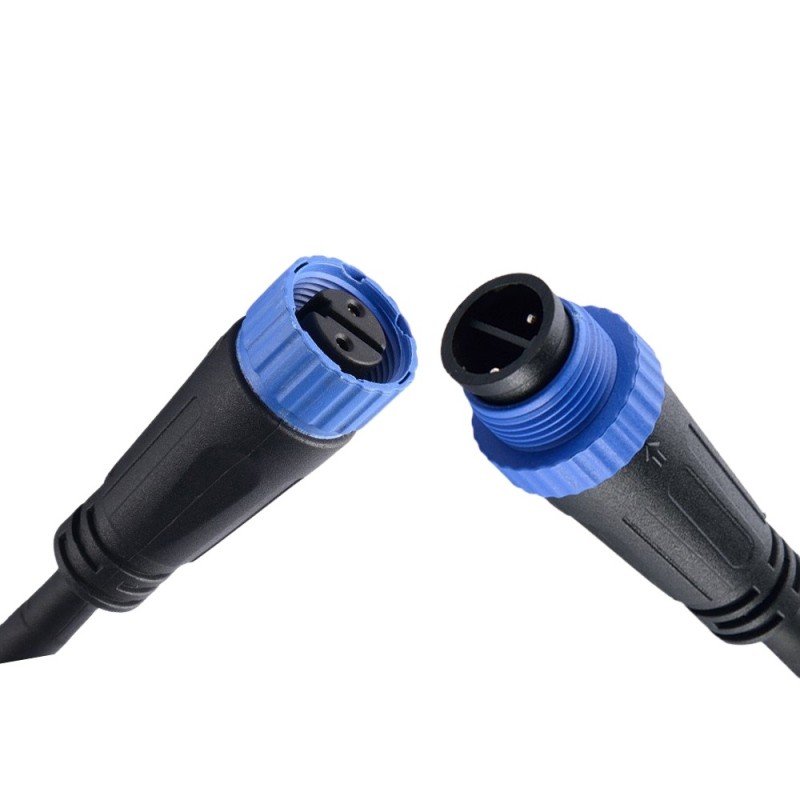

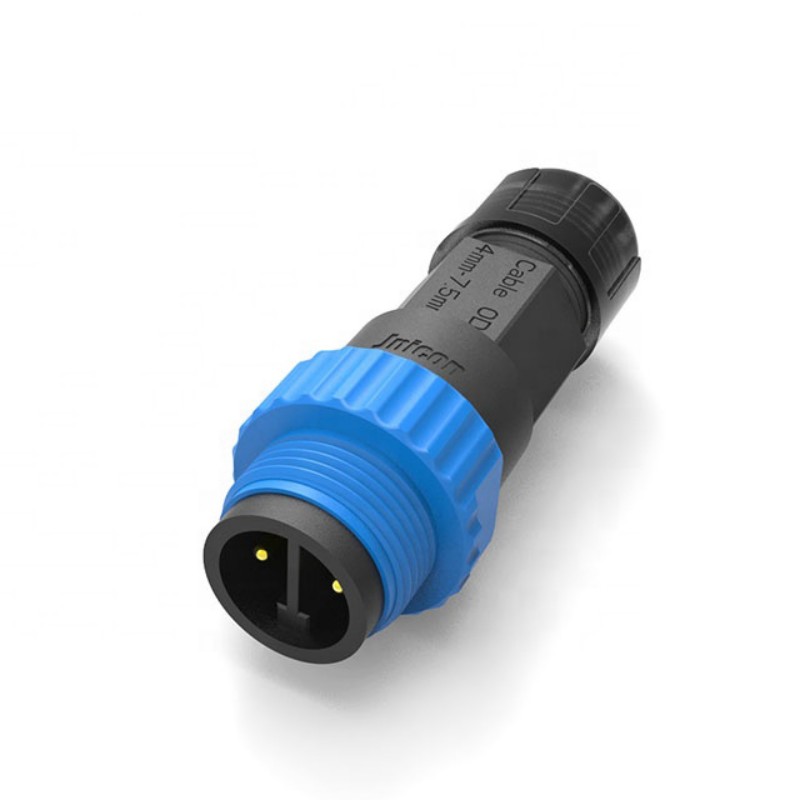

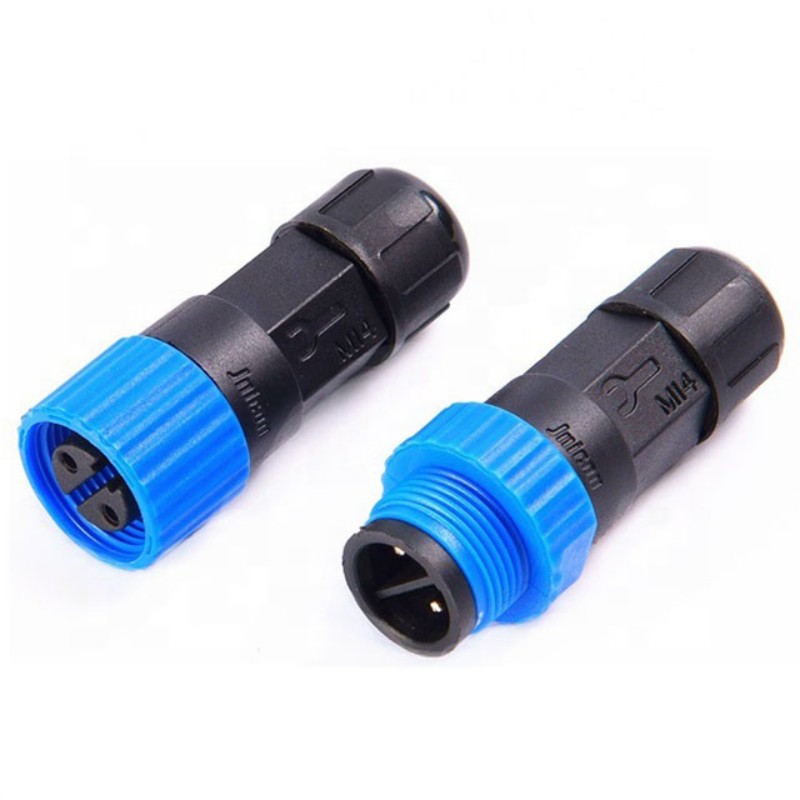

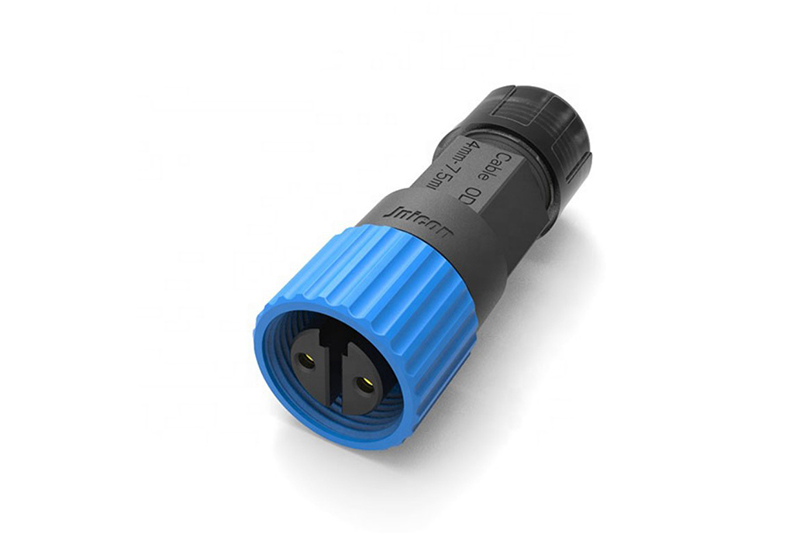

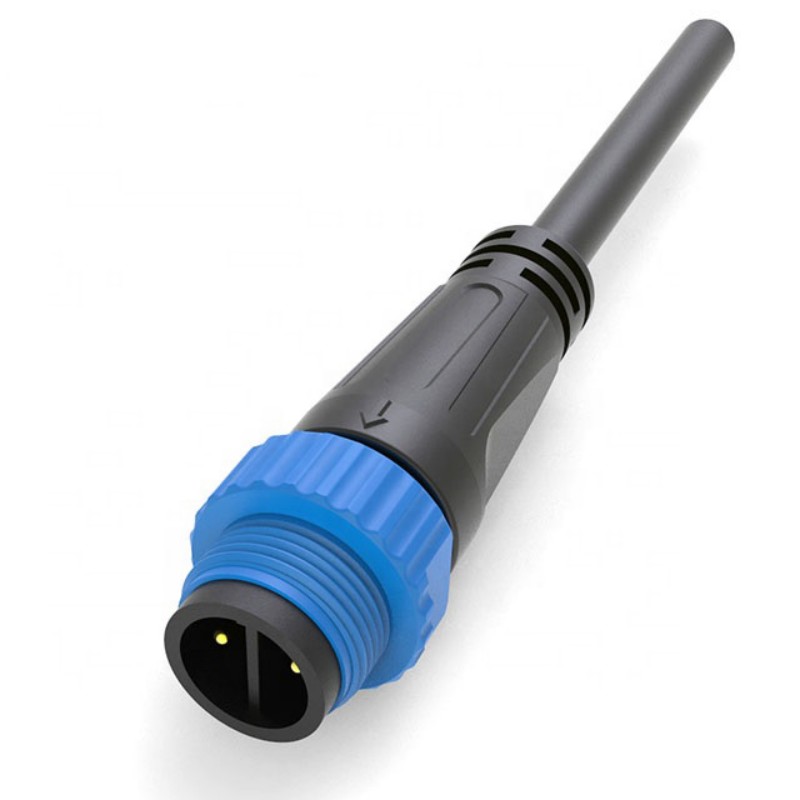

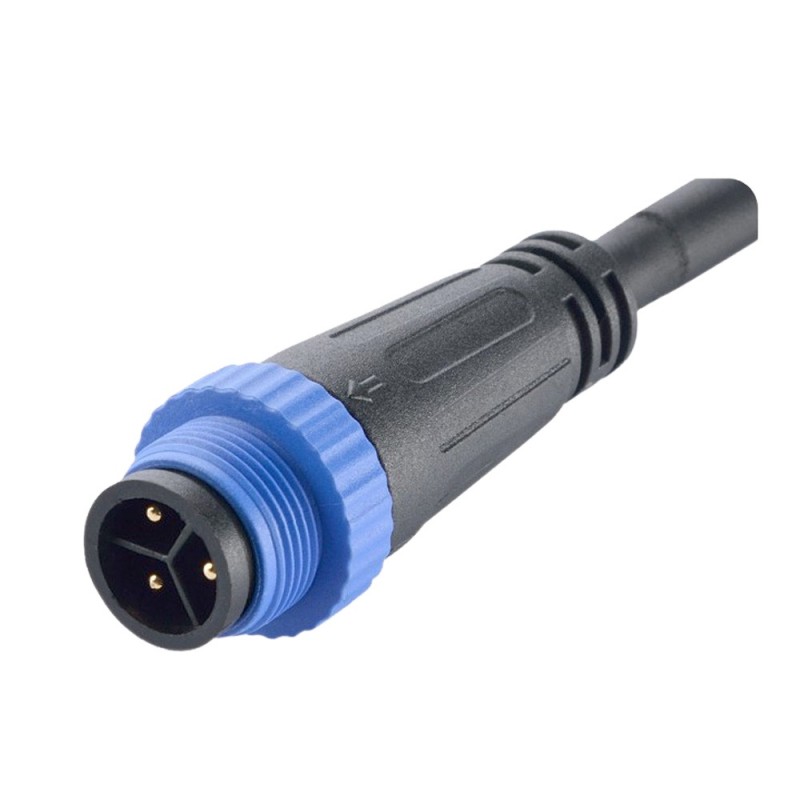

Waterproof M15 Electrical Outdoor Lighting Power Cable Connectors - China Suppliers & Factory, IP68 Rated
PRODUCT FEATURE
Product Specification
| Connecting Mode | Push Locking | |||
| Pins No. | 2 | 3 | 4 | 5(2+3) |
| Rated Current | 7A 300V |
7A+2A 125V+60V |
||
| Contact Diameter X No. | ø 1.2 | ø 1.2+ ø 1.0 | ||
| Withstanding Voltage | 1500V | 1000V | ||
| Protective Level | IP67 | |||
| Cable Gauge | 0.3mm²–1.0mm² (24–18AWG) |
|||
| Diameter Range | MAX ø 8.5mm | |||
| Operating Temp. | -40℃ ~ 105℃ | |||
| Copper Needles Material | Copper Alloy | |||
| Flame Resistant | 94-V0 | |||
Our Services
✔ We will help you to select the right product.
✔ Strong technical support by our salesman and R&D team.
✔ Provide production photo & video of your order.
✔ Fast delivery cause we are the original factory.
✔ After sales services, 5 years warranty.
✔ OEM & ODM acceptable.
Certifications
Our products are certificated by UL, CE, CQC, TUV, RoHS, CCC, IP67/IP68. Contact us to get the HD pictures of our certification! The quality is very good, if you need any other certification, we can do it for you too.
Contact Us
Frequently Asked Questions
-
What is the IP protection rating of the M15 connector?The M15 connector carries an IP67 protection rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water up to 1 meter for 30 minutes, making it ideal for outdoor and wet environments.
-
What pin configurations are available for the M15 connector?The M15 connector is available in 2-pin, 3-pin, 4-pin, and 5-pin (2+3) configurations, supporting a variety of wiring needs for outdoor lighting and electrical applications.
-
What is the operating temperature range of the M15 connector?The M15 connector is designed to operate reliably in temperatures ranging from -40℃ to 105℃, making it suitable for both extreme cold and high-heat environments.
-
Does the M15 connector support OEM and ODM orders?Yes, we fully support OEM and ODM orders. As the original factory, we can customize products to meet your specific requirements, including branding, packaging, and technical specifications.
-
What certifications does the M15 connector hold?Our M15 connectors are certified by UL, CE, CQC, TUV, RoHS, CCC, and meet IP67/IP68 standards. If you require additional certifications for your market, please contact us and we will assist you accordingly.
-
What after-sales support do you provide?We offer a 5-year warranty on our products along with strong technical support from our sales and R&D team. We also provide production photos and videos for your orders to ensure full transparency and quality assurance.
