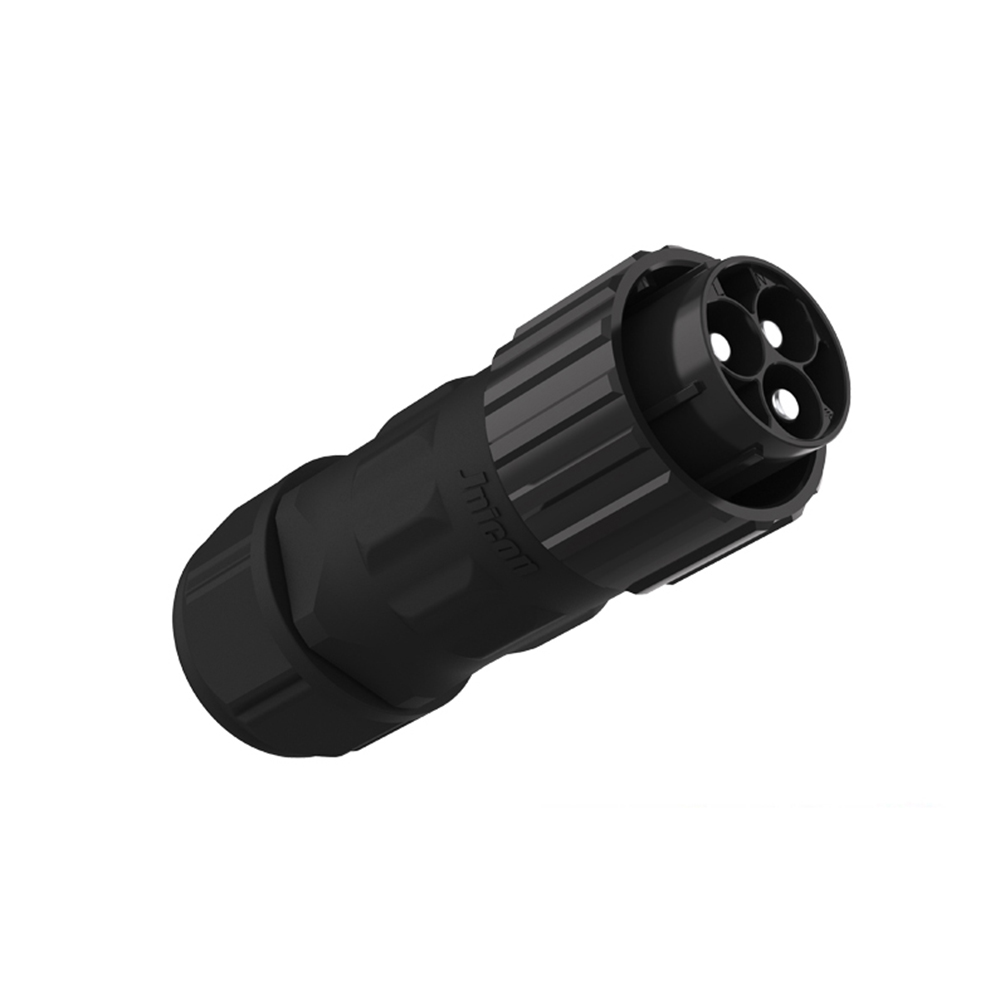

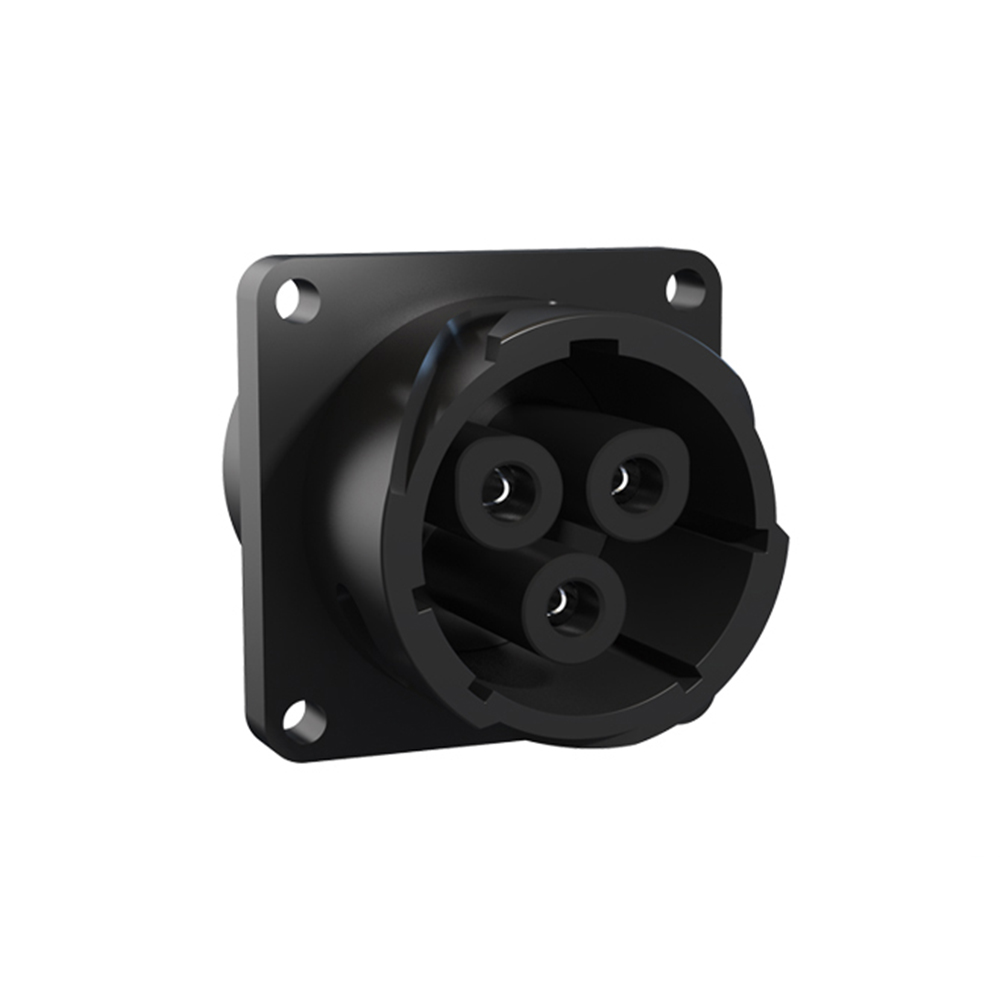

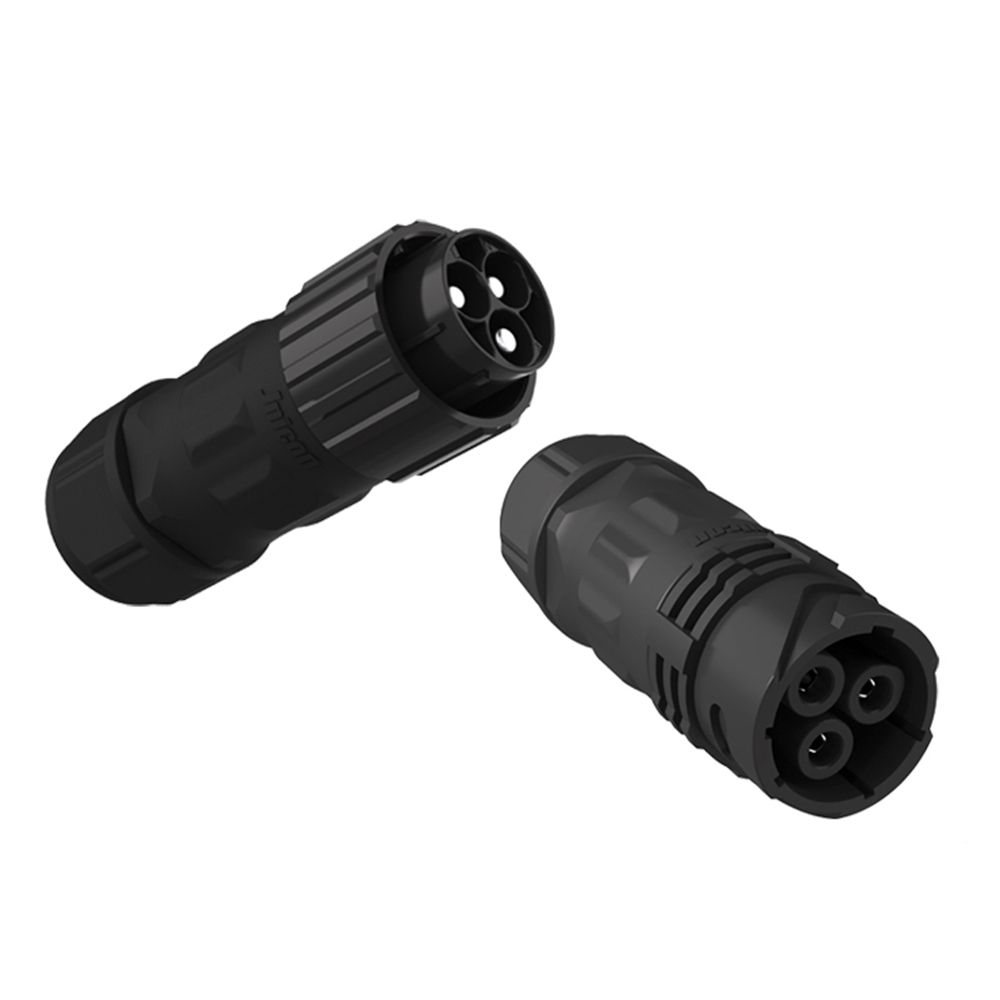

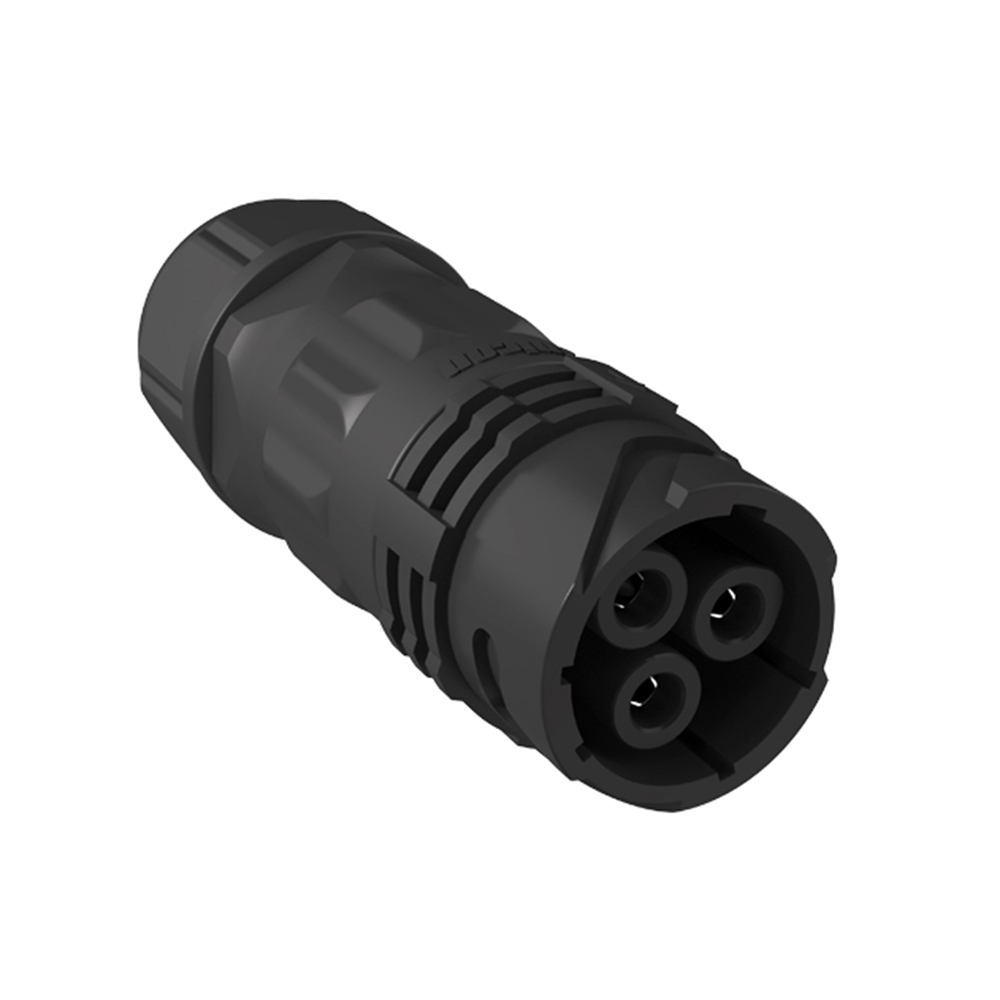

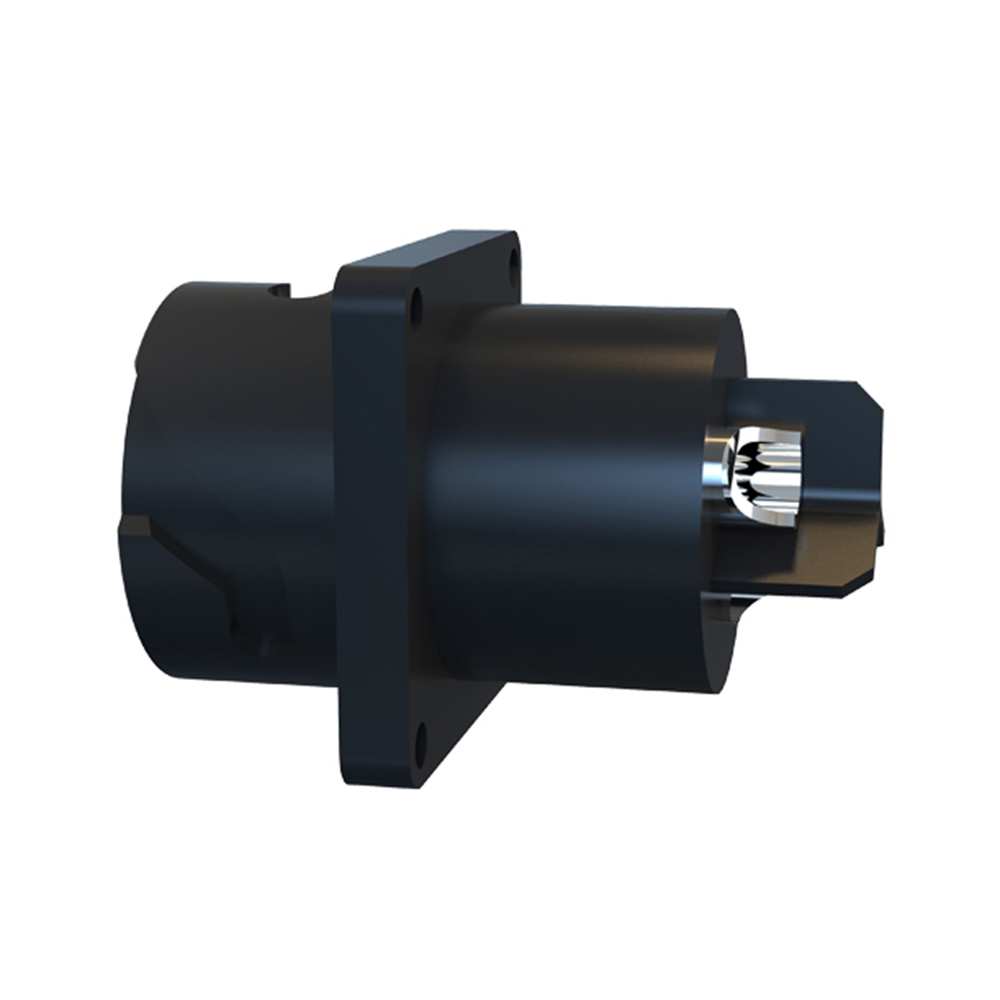

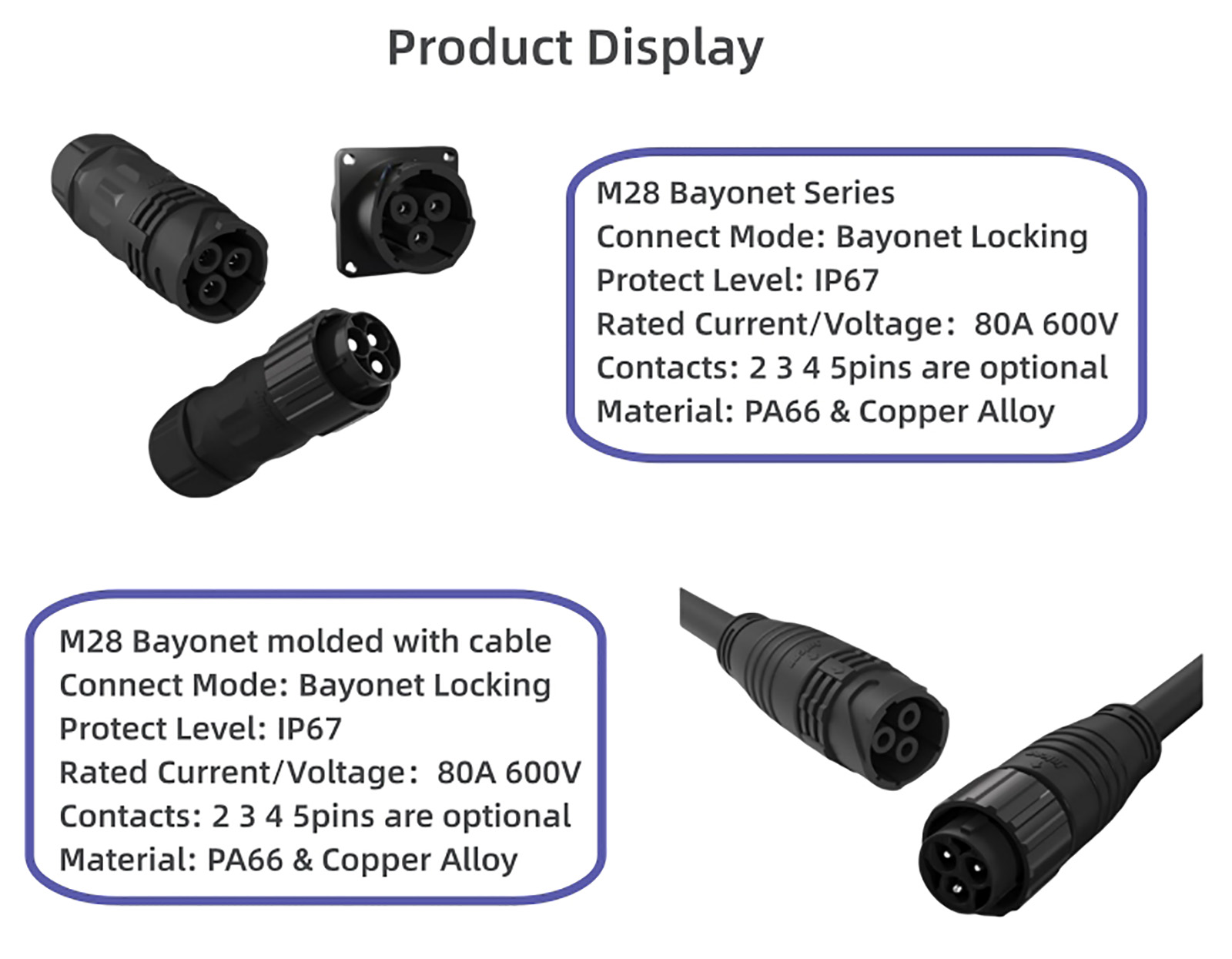

M28 bayonet IP67 waterproof connector
M28 Series connectors mainly feature:
⊕ Bayonet structure,simple and quick locking design, safe and reliable.
⊕ Crimping wiring way, no screws, no soldering needed.
⊕ Different current rated options: 80A max., welcome ODM.
⊕ Different pins arrangement: 2Pin,3Pin,4Pin and 5Pin.
⊕ Electric Shock protection design in Contact Pins.
⊕ IP67 Waterproof rating(when mated).
⊕ Massive Used in Photovoltaic Inverter power equipments.
Connecting Mode |
Crimp & Screw Locking & Welding |
||||

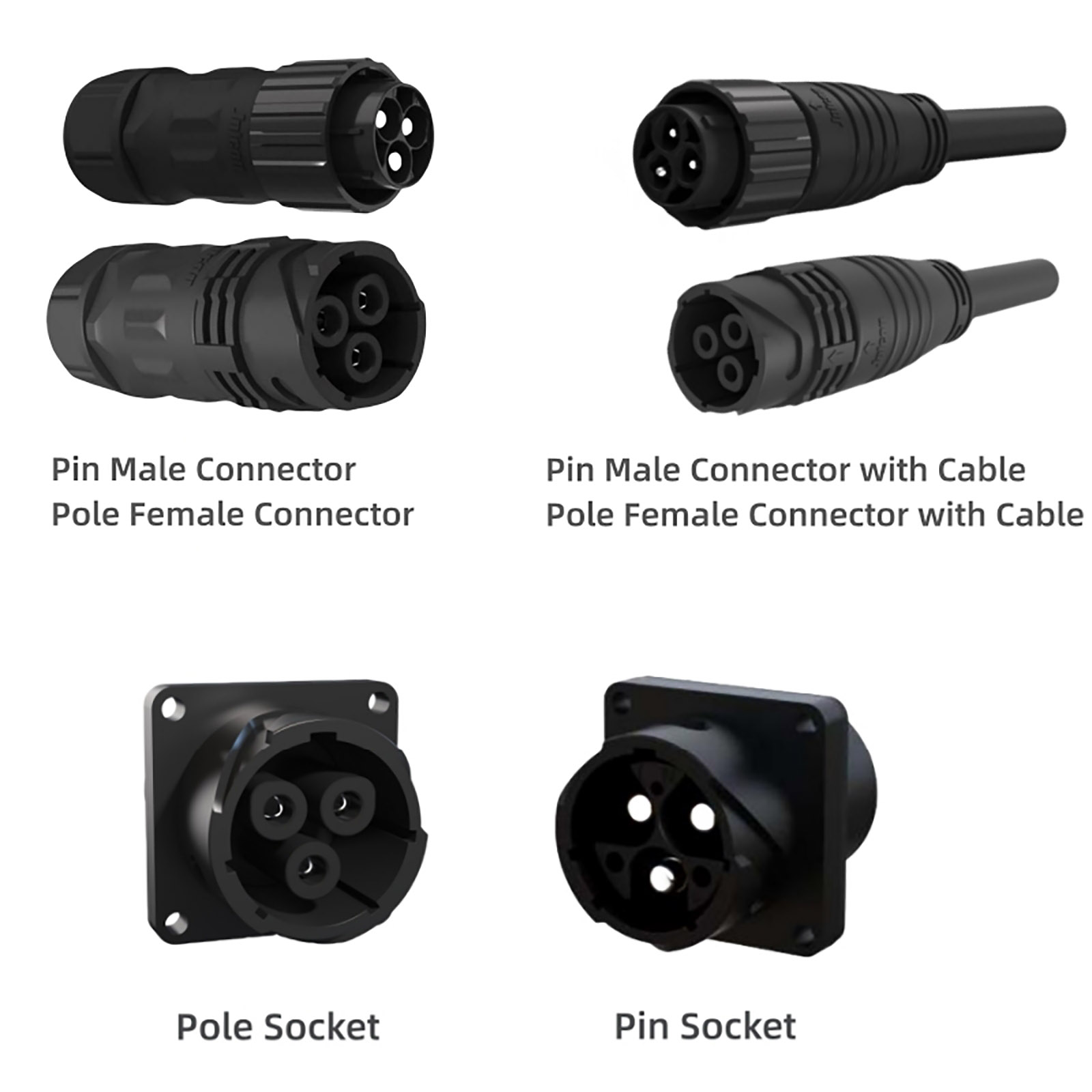

Pins No. |
2 |
3 |
4 |
5 |
2+8 |
Rated Current |
80A |
60A |
40A |
80A +10A |
|
Contact Diameter X No. |
ø 4.8 |
ø 3.6 |
ø 3.0 |
ø 4.8+ø 1.5 |
|
Withstanding Voltage |
2500V |
2500V |
2000V |
2500V |
|
Protective Level |
IP67 |
||||
Diamter Range |
ø 10.0mm- ø 19.0mm |
||||
Operating Tem. |
-40℃~105℃ |
||||
Copper Needles Material |
copper alloy |
||||
Flame Resistant |
94-V0 |
||||
-
We offer expert assistance to help you pick the perfect product.
-
Strong technical backing delivered by both our sales staff and R&D team.
-
Regular updates with production photos and videos for your orders.
-
Fast delivery efficiency ensured by our status as the original manufacturer.
-
Premium after-sales services included, featuring a 5-year warranty.
-
Customization solutions via OEM and ODM are fully acceptable.
Our products are officially certified by UL, CE, CQC, TUV, RoHS, CCC, and hold IP67/IP68 waterproof ratings.
Reach out to us and we will provide you with HD photos of all relevant certifications!
With top-tier product quality guaranteed, we are also able to apply for any other certifications you need.
