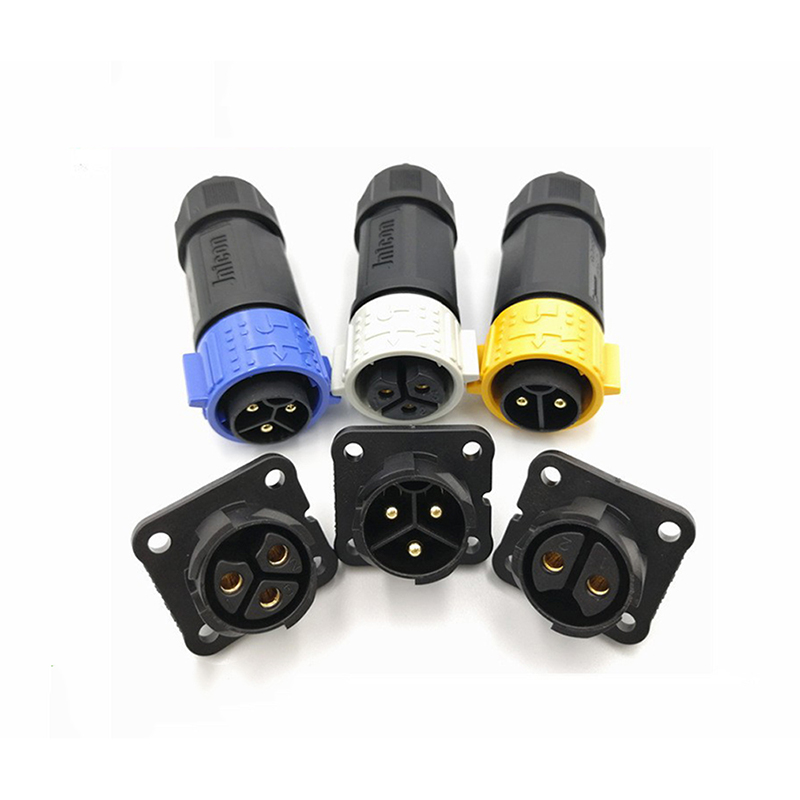

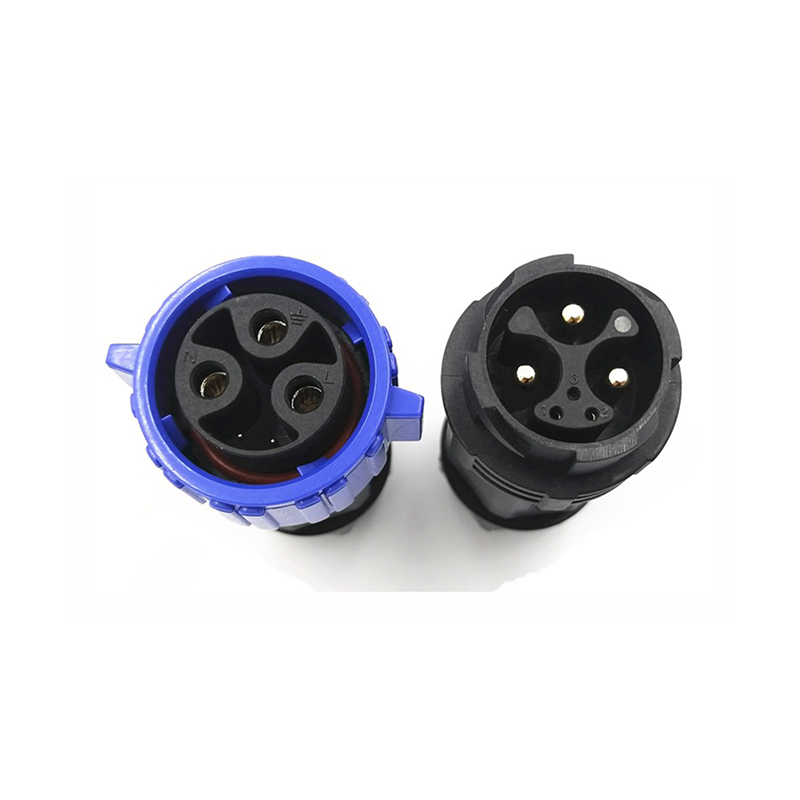

M25 quick-lock IP67 waterproof connector
M25 Series connectors mainly feature:
⊕ Advanced structure: Self-locking.

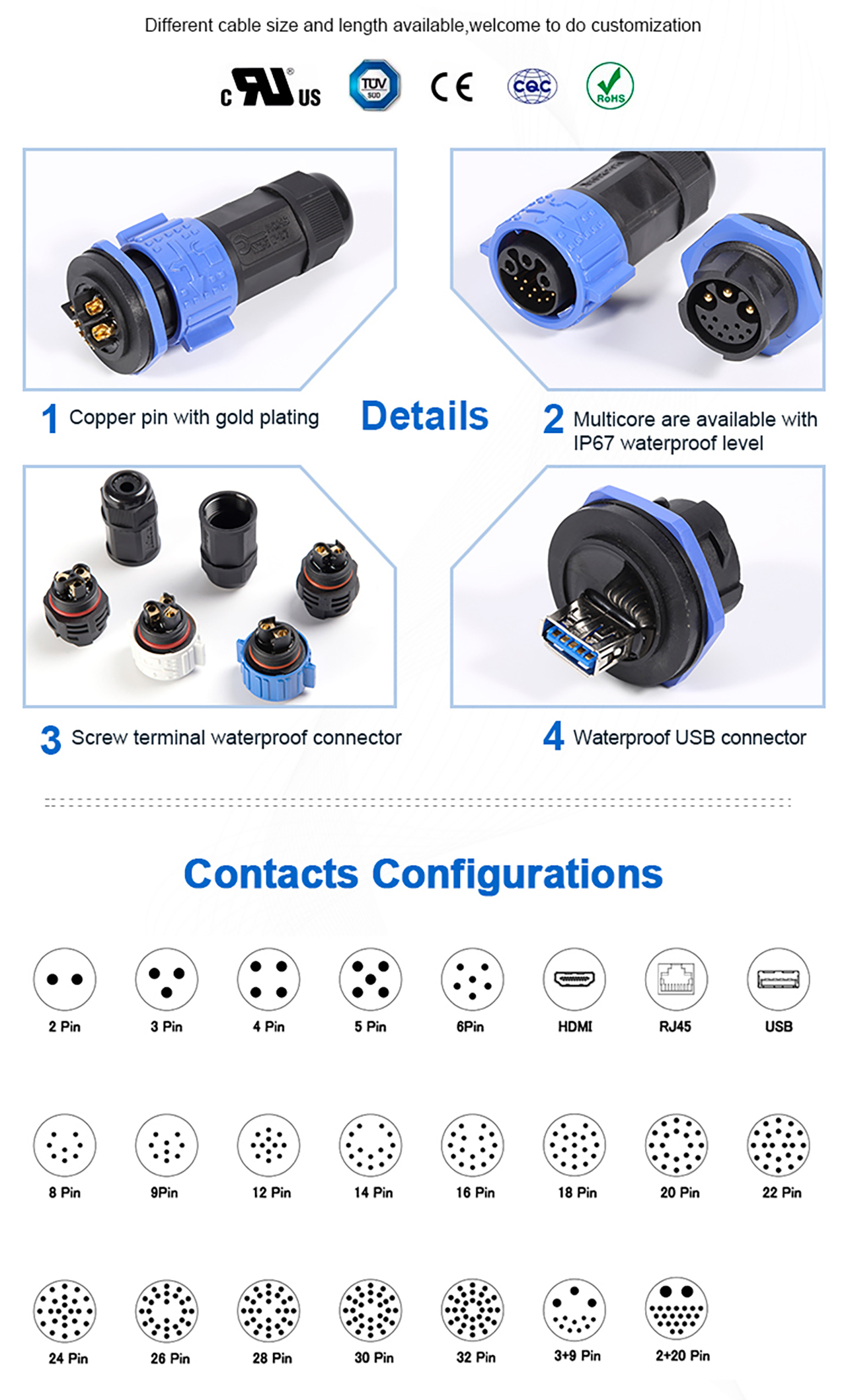

⊕ Multiple pin: 2, 3, 4, 5, 6, 7, 8, 9 to 22pin are optional.
* 2, 3, 4, 5pin for power
* 2+3, 2+4pin for combined power and signal.
⊕ Assembly: wire to wire type (without cable), wire to wire by over-molding, wire to board.
⊕ Colors: Black, blue, and yellow supported.
⊕ Cable length: Different cable length can be customized.
⊕ Application range: Led display, Audio equipment, street lighting, electrical equipment, automation machine, electric vehicle.
Connecting Mode |
Push Locking |
||||||||||||||
Pins No. |
2 |
3 |
4 |
5(3+2) |
6(3+3) |
7 |
8(3+5) |
9 |
10(2+8) |
11 |
12(3+9) |
15 |
16(3+13) |
21(3+18) |
22(2+20) |
Rated Current |
50A |
30A |
20A |
15A+5A |
5A |
50A 500V |
30A+5A |
20A+5A |
|||||||
Contact Diameter X No. |
ø3.5 |
ø3.5 |
ø2.4 |
ø2.4+ø0.8 |
ø1.0 |
ø3.5+ø1.0 |
ø2.7+ø1.0 |
ø2.7+ø1.0 |
|||||||
Withstanding Voltage |
2500V |
2000V |
1500V |
1000V |
500V |
2500V |
1500V |
1500V |
|||||||
Protective Level |
IP67 |
||||||||||||||
Cabel Gague |
MAX6.0mm2 |
MAX2.5mm2 |
0.3+2.5mm2 |
0.3-0.5mm2 |
MAX6.0mm2 |
0.3+2.5mm2 |
|||||||||
Diamter Range |
ø6-ø16 |
||||||||||||||
Operating Tem. |
-40℃~105℃ |
||||||||||||||
Copper Needles Material |
copper alloy |
||||||||||||||
Flame Resistant |
94-V0 |
||||||||||||||
-
Reduce risks
We will help you to select the right product. -
Enhance customer satisfaction
Strong technical support by our salesman and R&D team. -
Improving efficiency and reducing costs
Provide production photo & video of your order. -
Ensure compliance
Fast delivery cause we are the original factory. -
Ensure compliance
After sales services, 5 years warranty. -
Ensure compliance
OEM & ODM acceptable
Our products are certificated by UL,CE, CQC, TUV, RoHS, CCC,IP67/IP68. Contact us to get the HD pictures of our certification! The quality is very good, if you need any other certification, we can do it for you too.
