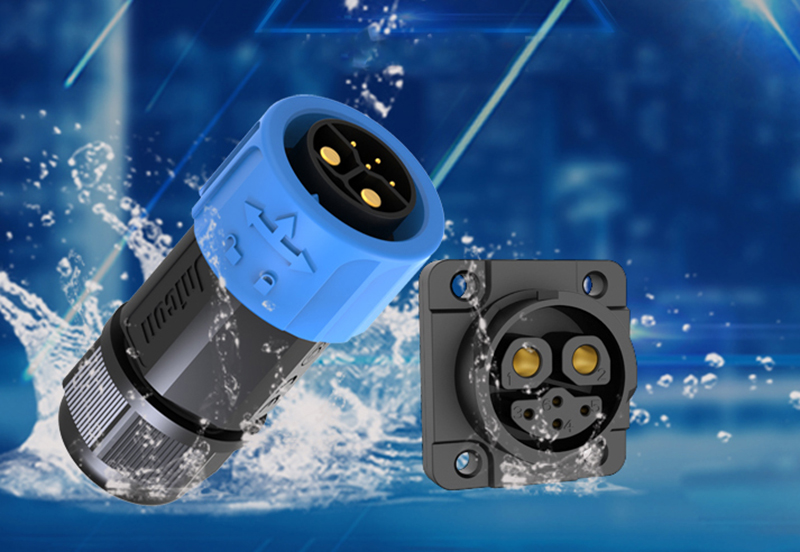

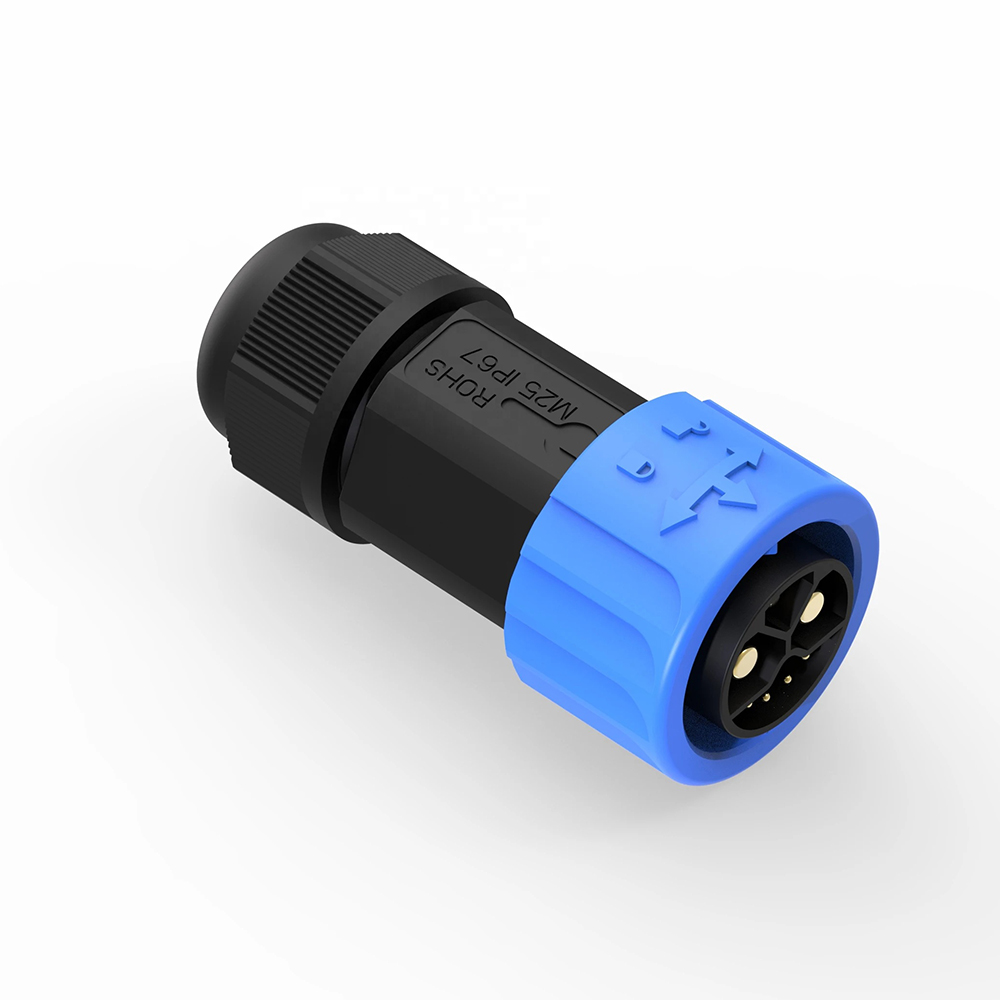

M23 IP67 waterproof quick-lock connector

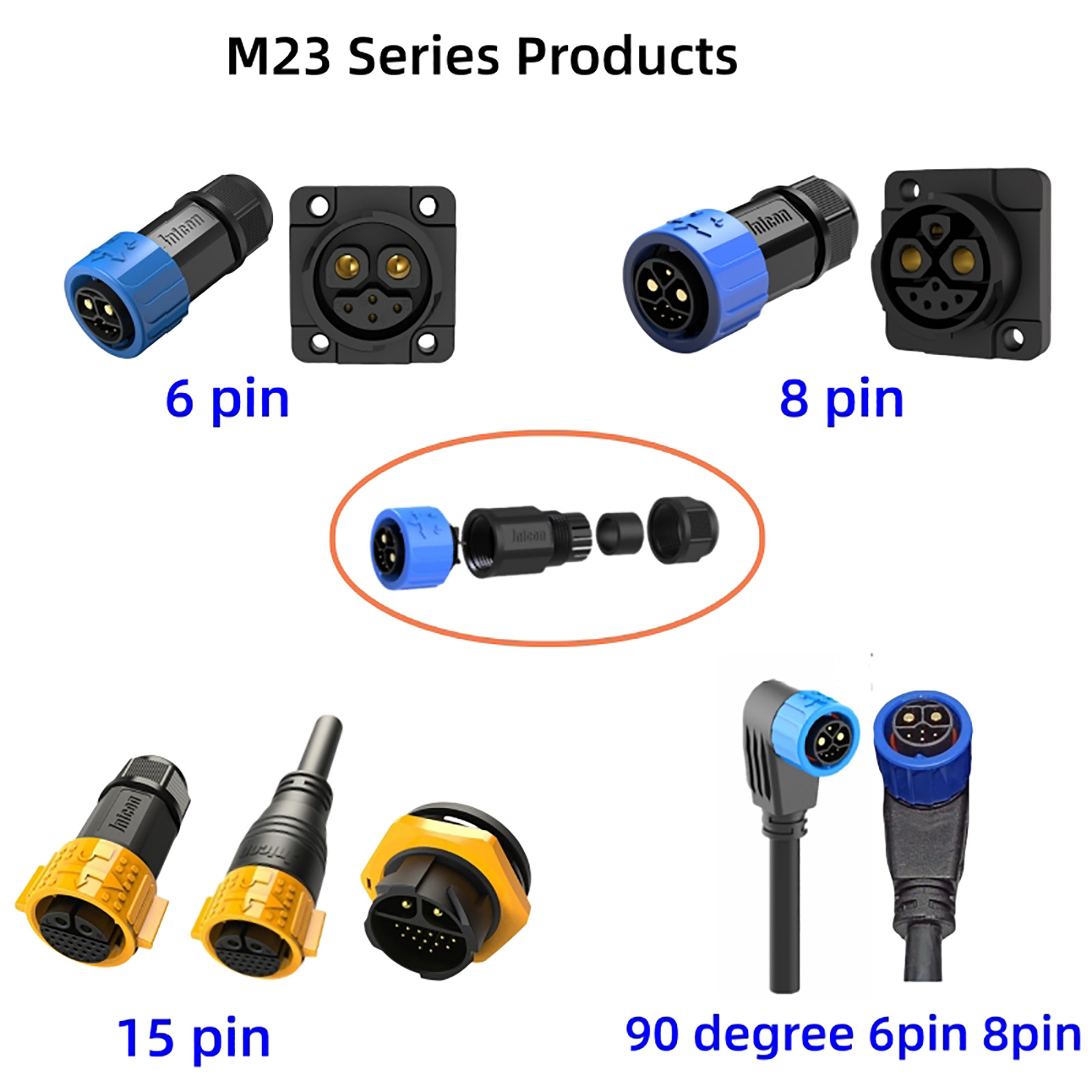

M23 Series connectors mainly feature:
⊕ Advanced structure: Self-locking.
⊕ Multiple pin: 6,8,15pins are optional.

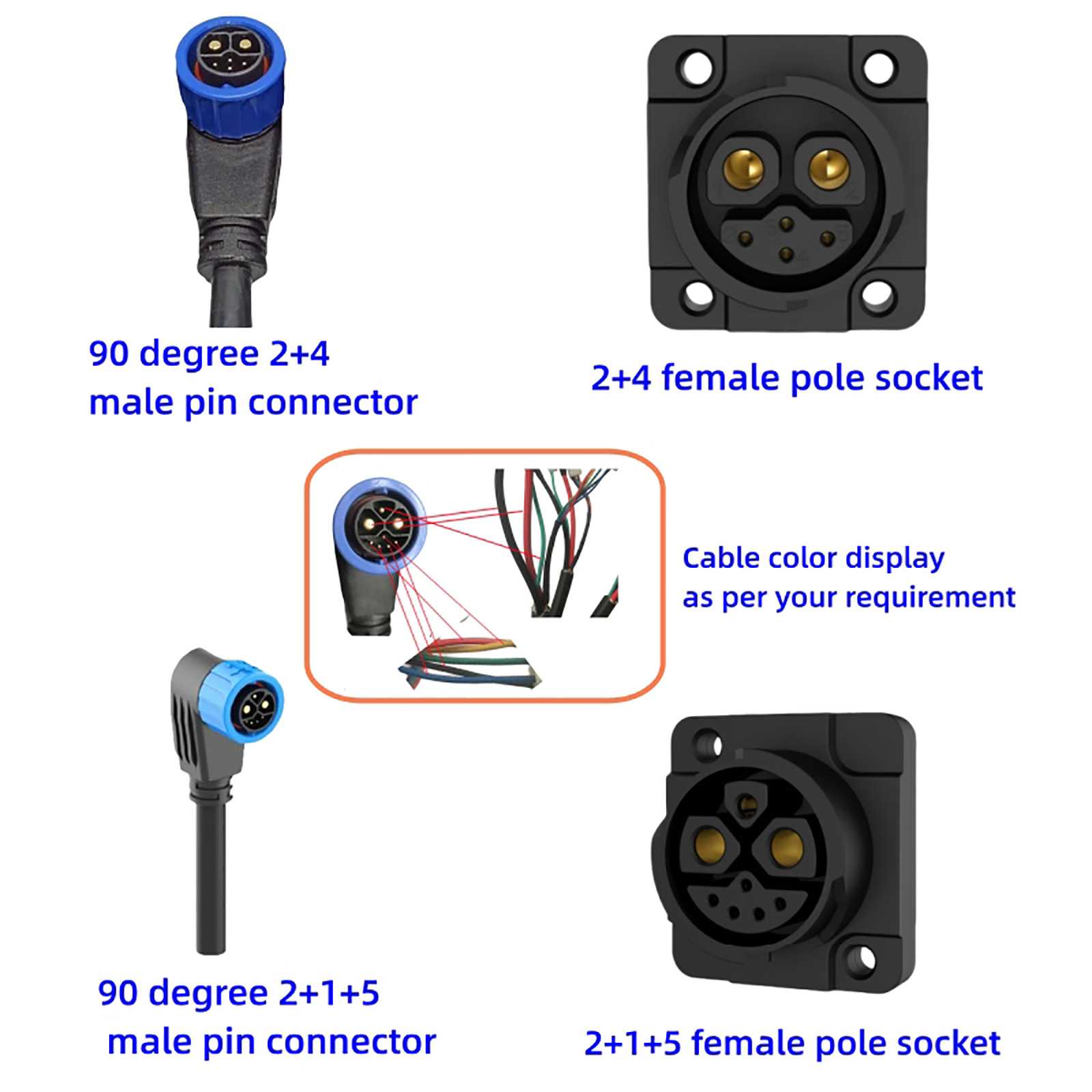

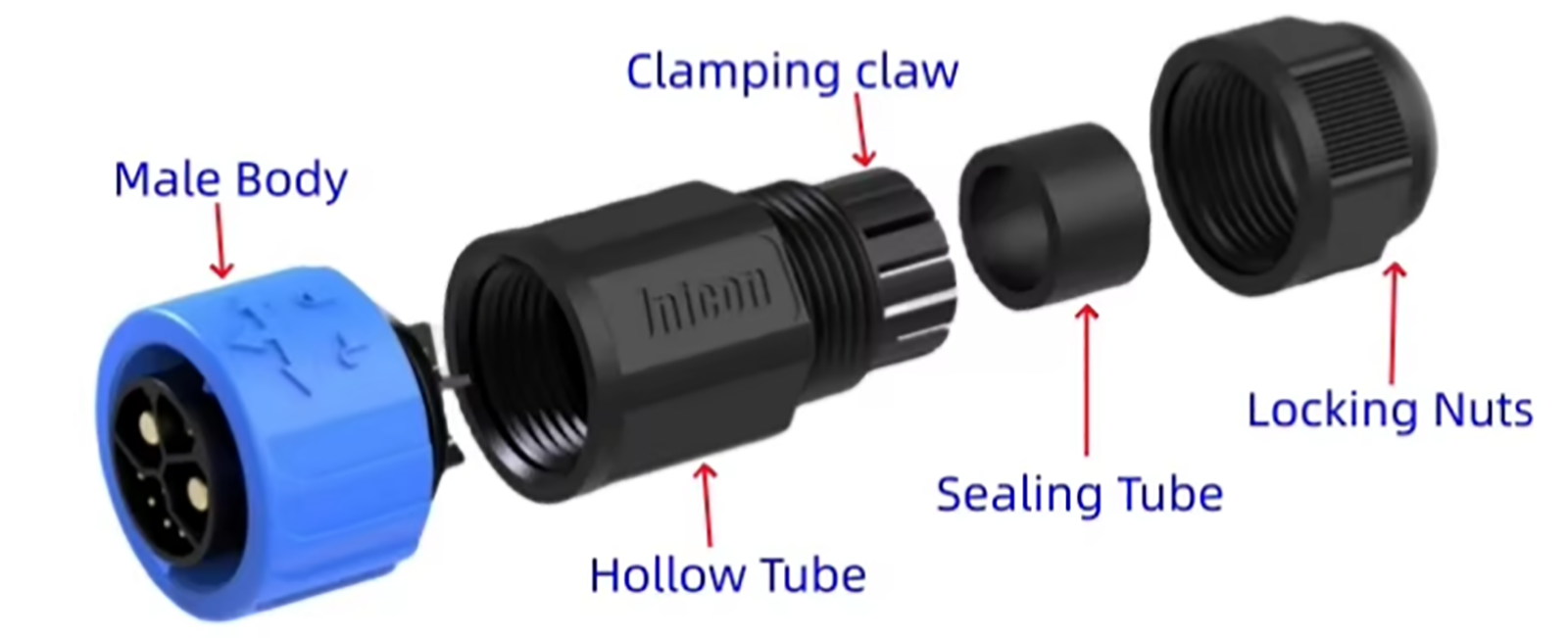

⊕ Assembly: wire to wire type (without cable), wire to wire by over-molding, wire to board.
⊕ Colors: Black, blue, and yellow supported.
⊕ Cable length: Different cable length can be customized.
Connecting Mode |
Push Locking |
||

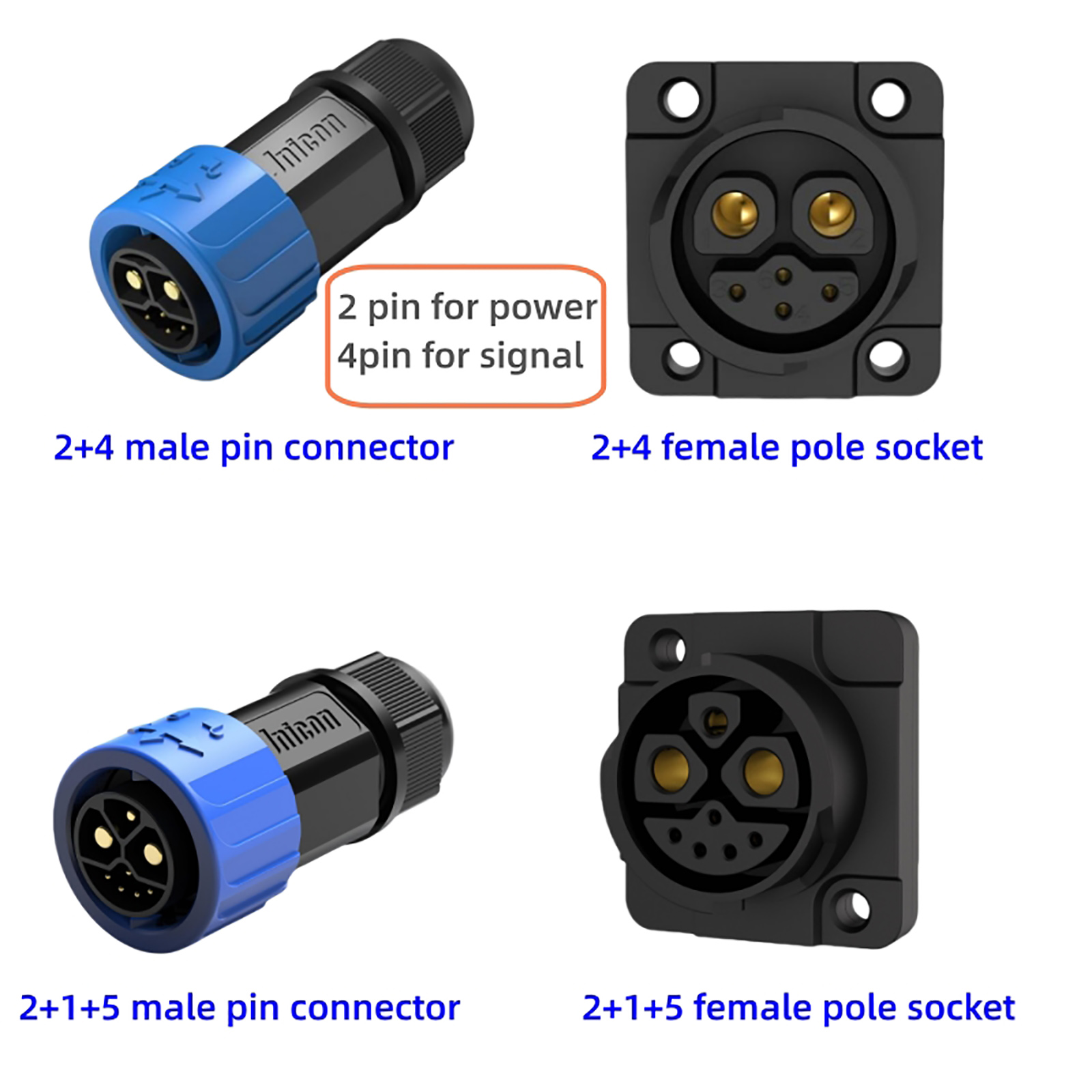

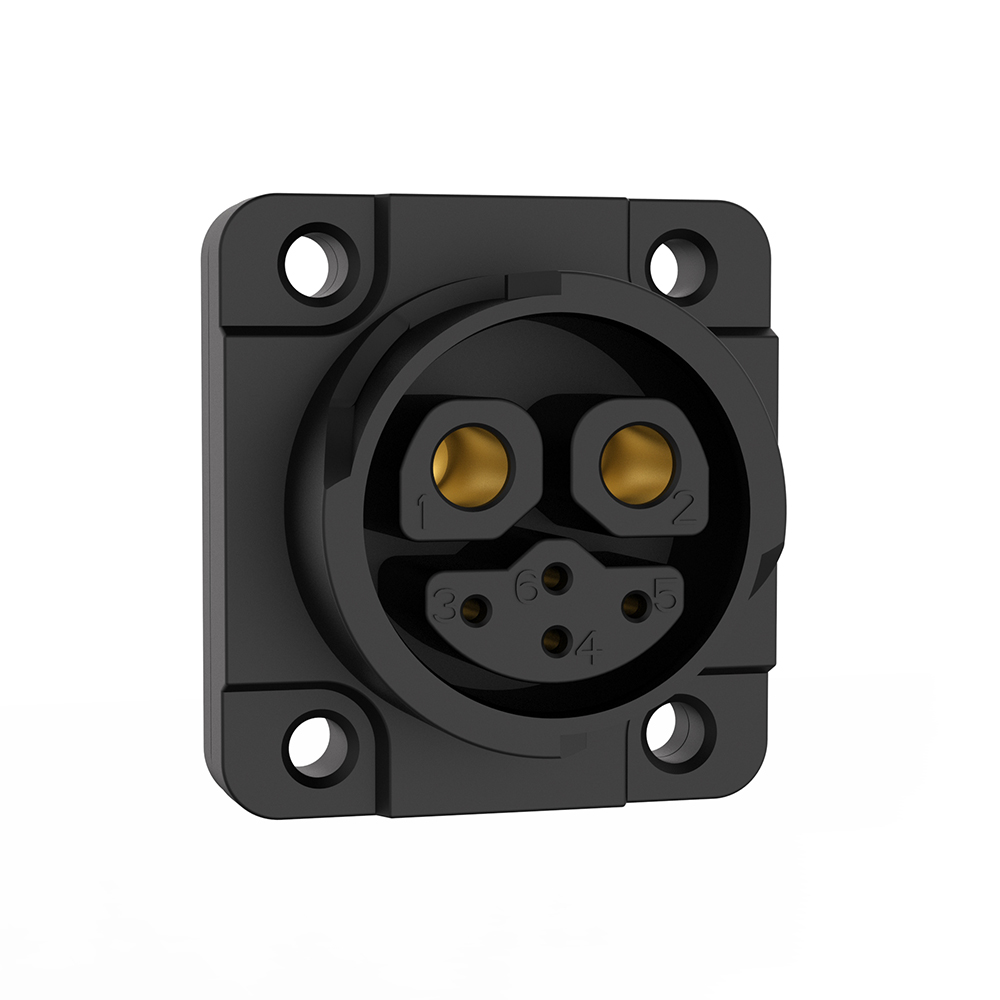

Pins No. |
6 (2+4) |
8 (2+1+5) |
15 (2+13) |
Rated Current |
50A+5A |
50A+15A+5A |
20A+5A |
Contact Diameter X No. |
ø3.6+ø1.0 |
ø3.6+ø2.0+ø1.0 |
ø2.4+ø1.0 |
Withstanding Voltage |
1500V 300V |
||
Protective Level |
IP67 |
||
Cabel Gague |
0.3mm2-6mm2 |
||

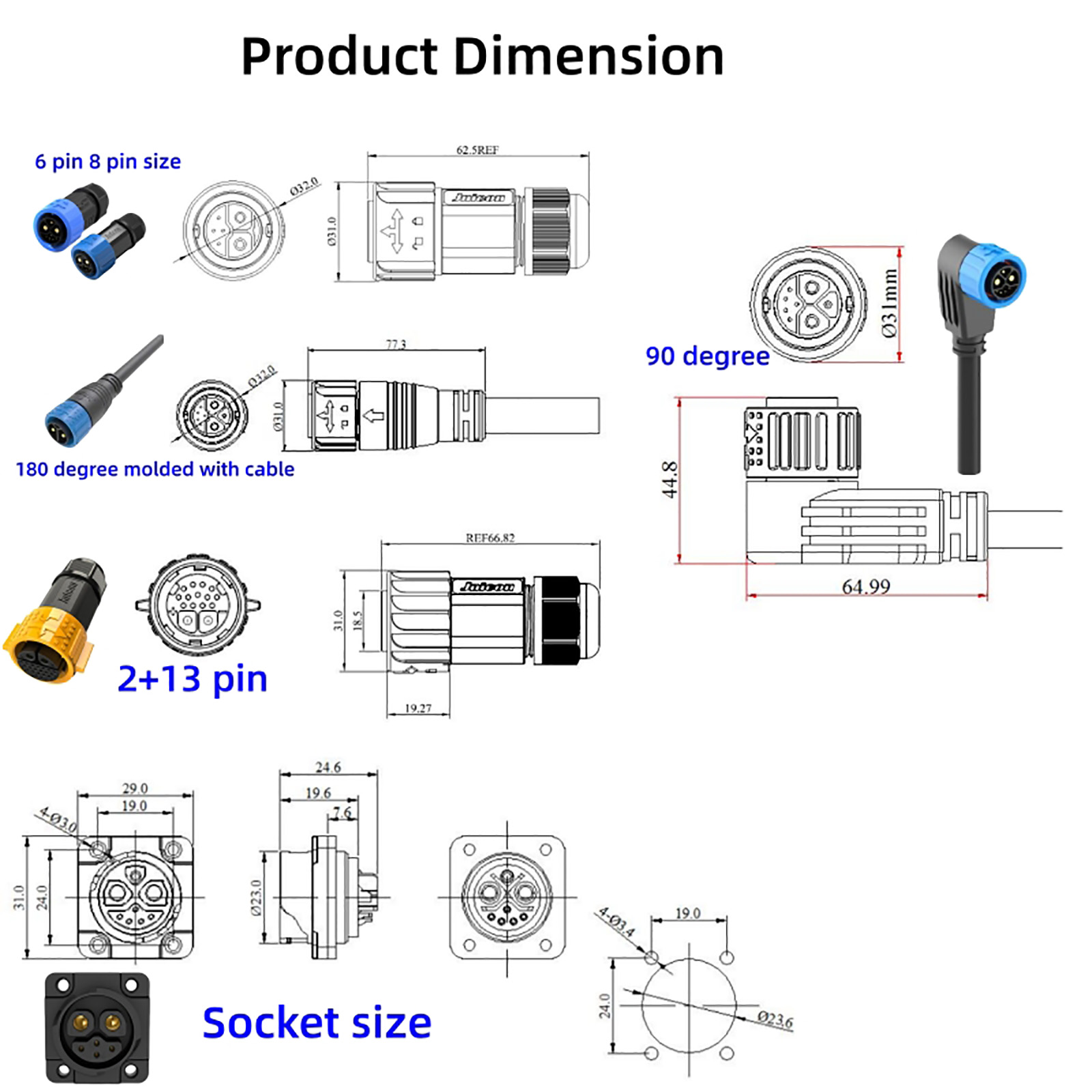

Diamter Range |
MAX ø16 |
||
Operating Tem. |
-40℃~105℃ |
||
Copper Needles Material |
copper alloy |
||
Flame Resistant |
94-V0 |
||
-
Expert product selection advice to meet your specific requirements.
-
Powerful technical support offered by our in-house sales and R&D personnel.
-
Production visuals (photos and videos) provided for your orders.
-
Quick delivery enabled by our identity as the original factory.
-
Dependable after-sales service with a 5-year warranty period.
-
Custom OEM and ODM services are welcome.
We are proud to state that our products carry a full range of certifications: UL, CE, CQC, TUV, RoHS, CCC, and IP67/IP68.
Get in touch with us to obtain HD pictures of these official certification documents!
Backed by outstanding product quality, we can also assist in acquiring any other certifications you require.
