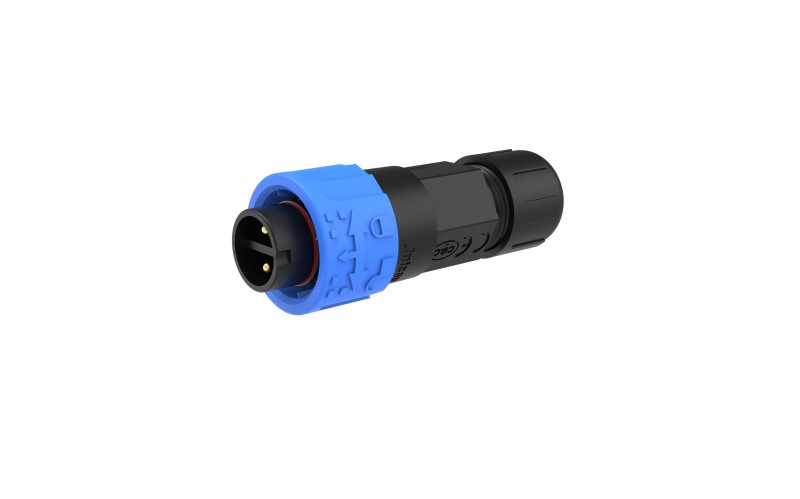

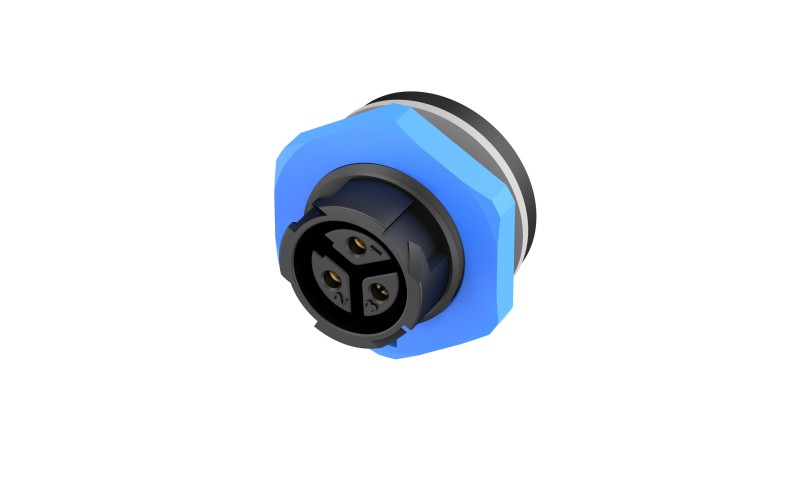

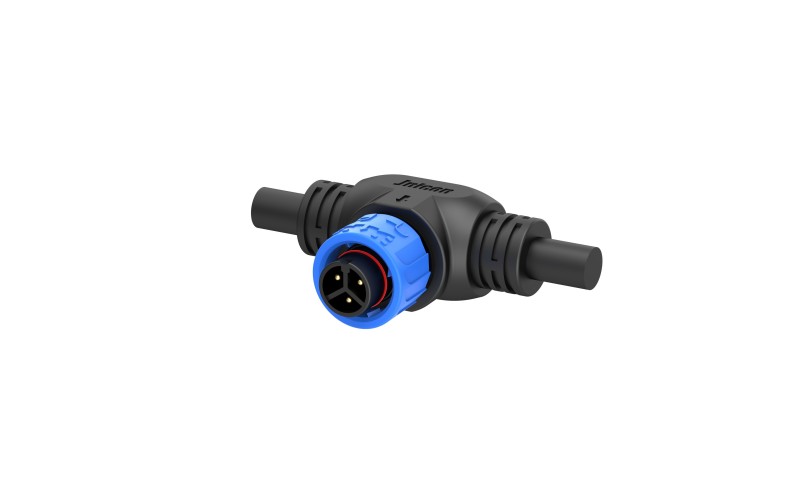

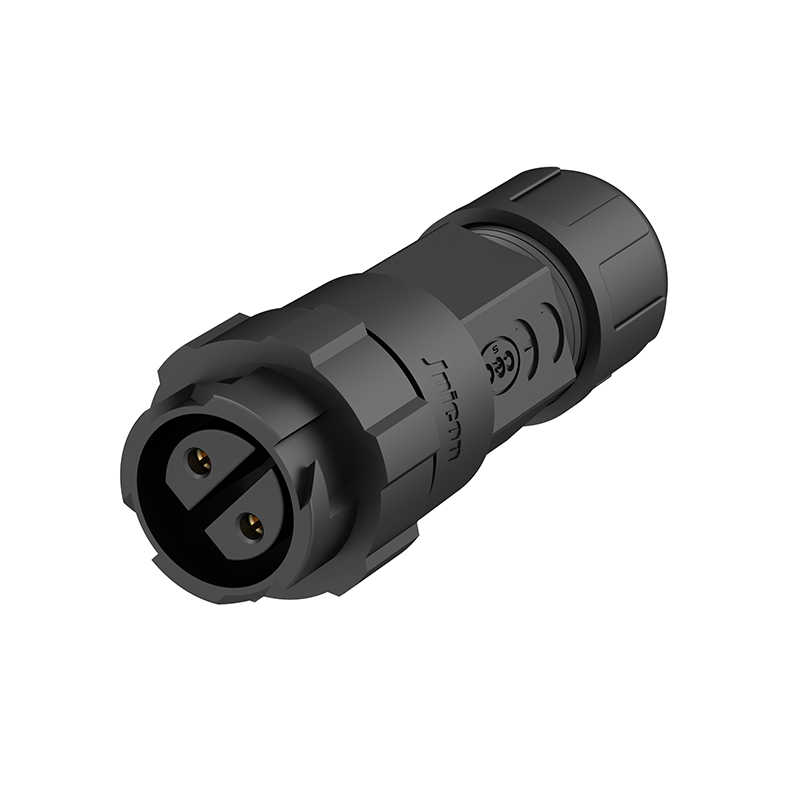

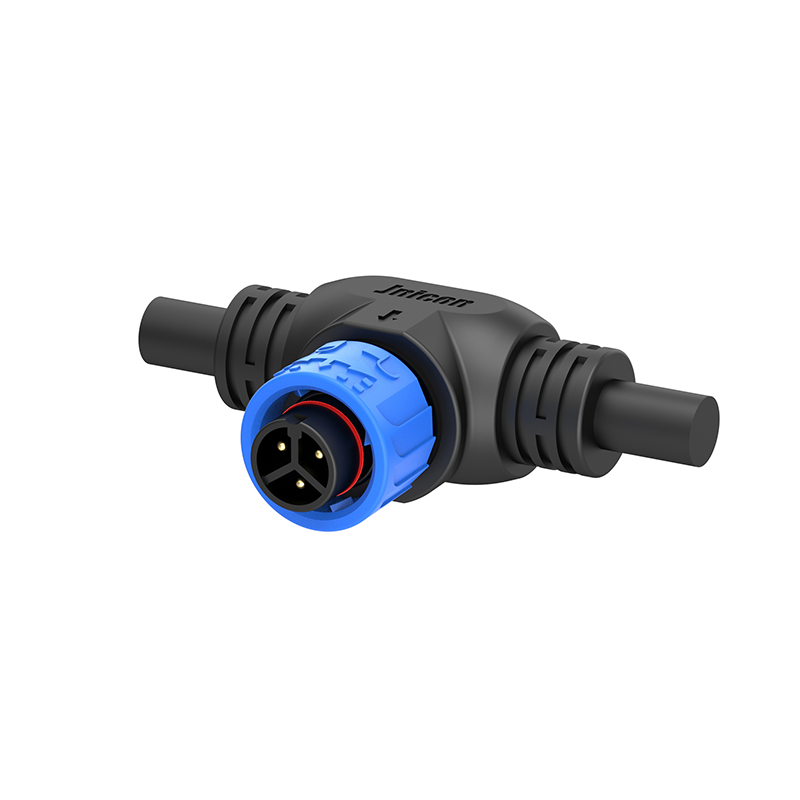

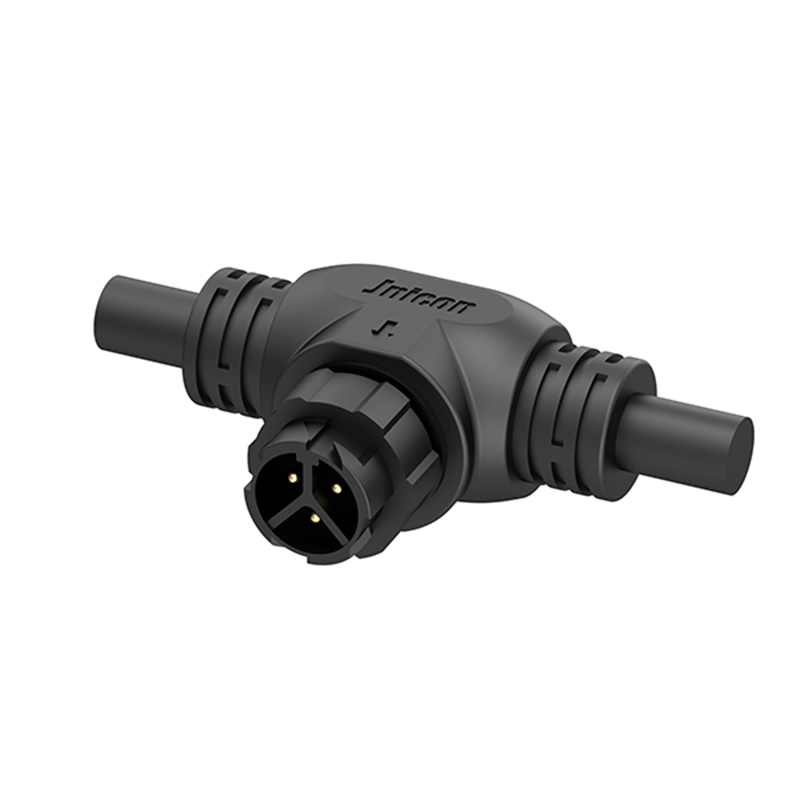

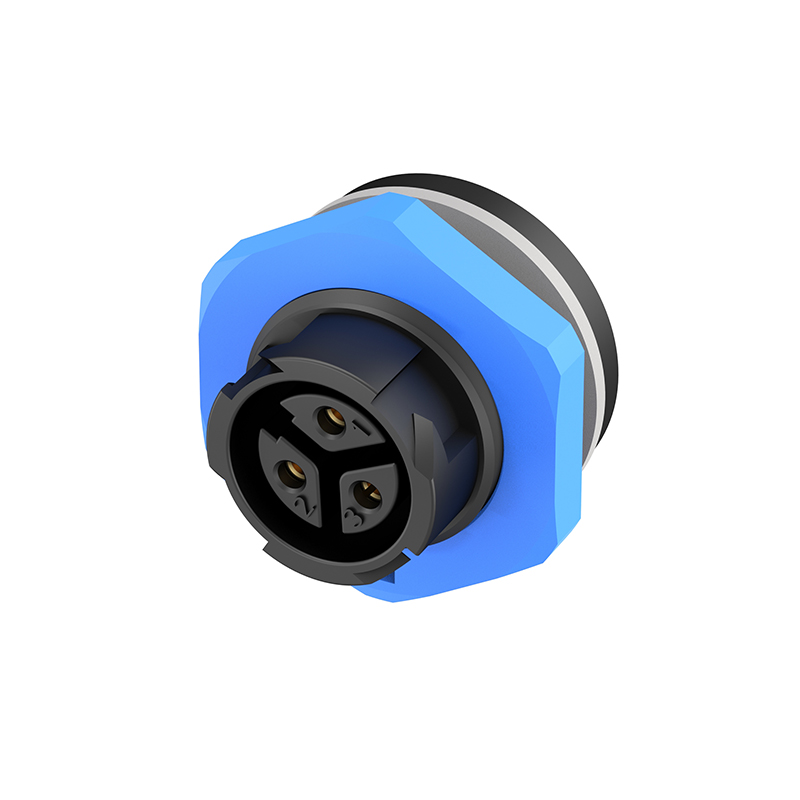

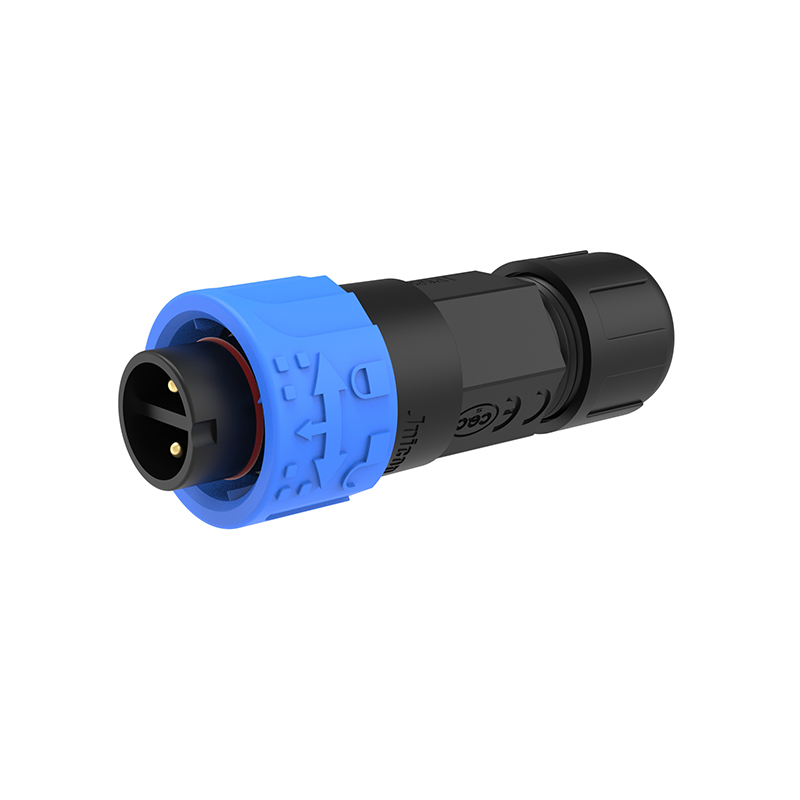

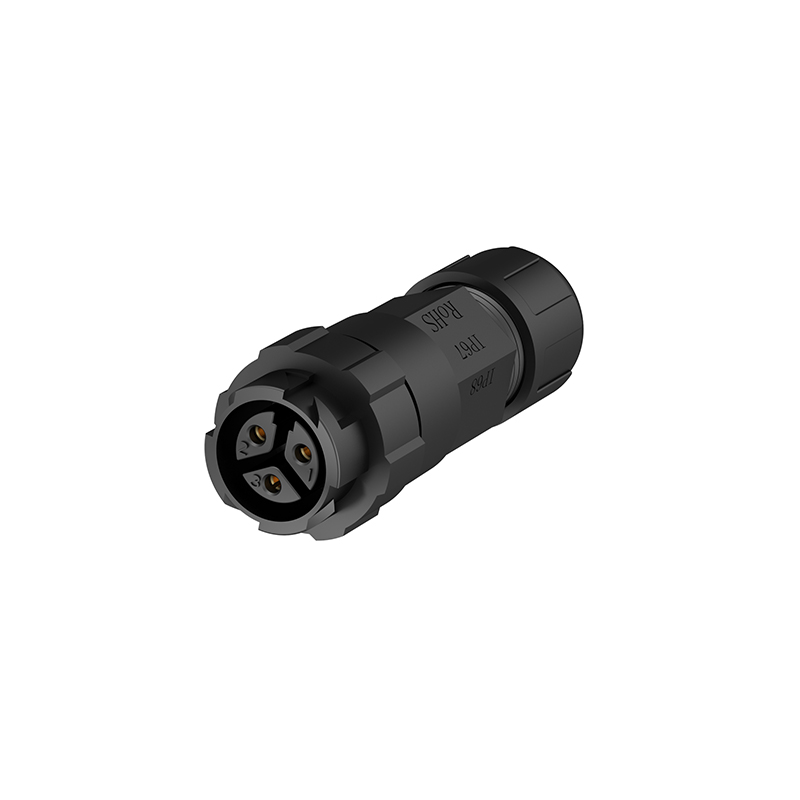

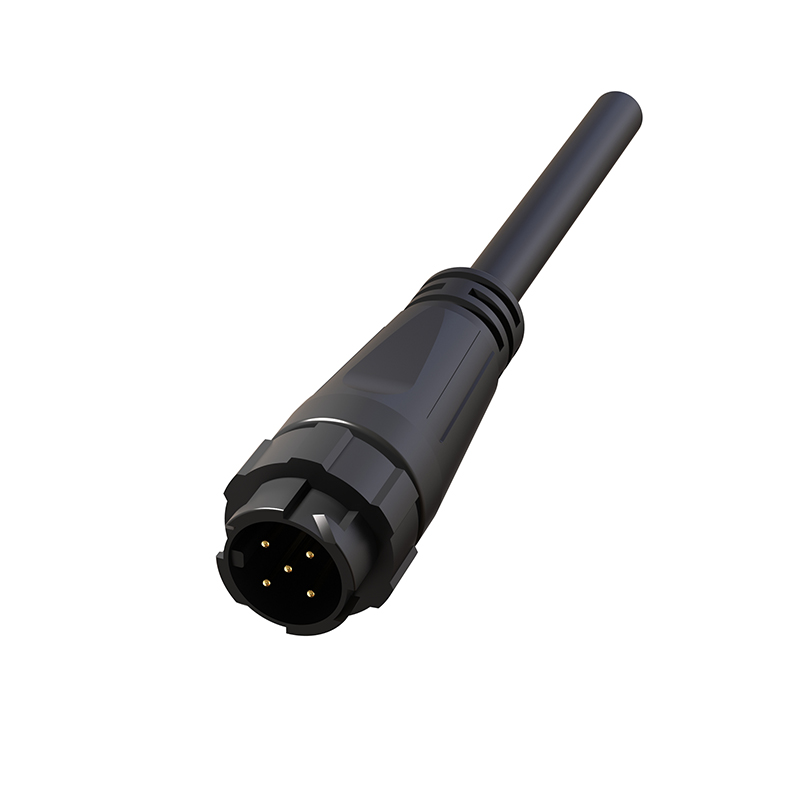

M16 IP67 Waterproof Electrical Connector - China Suppliers & Factory, Self-Locking Signal Connection Options
Product Feature
Clear clocking position indication
When the male and female plugs are butted together, the threads are tightened and waterproof, the test indicates that the male and female plugs are tightened in place.
IP67 & IP68 Waterproof Design
Real waterproof verification ensures that street lights can be used in harsh outdoor environments, adopt threaded connection, press and seal, one-piece injection molding, long-term waterproof and reliable, all shipment are tested by waterproof, you can use it with confidence.
Product Specification
Connecting Mode |
Push Locking |
||||||
Pins No. |
2 |
3 |
4 |
5 |
6(2+4) |
7 |
8 |
Rated Current |
10A |
10A |
8A |
10A+5A |
5A 60V |
||
Contact Diameter X No. |
ø 1.5 |
ø 1.0 |
ø 1.5+ø 1.0 |
ø 1.0 |
|||
Withstanding Voltage |
1500V |
500V |
|||||
Protective Level |
IP67 |
||||||
Cable Gauge |
0.5mm²-1.0mm² |
0.75mm²+0.5mm² |
0.3mm²+0.5mm² |
||||
Diameter Range |
MAX ø 9.0mm |
||||||
Operating Temp. |
-40℃ ~ 105℃ |
||||||
Copper Needles Material |
Copper Alloy |
||||||
Flame Resistant |
94-V0 |
||||||
Our Services
* We will help you to select the right product.
* Strong technical support by our salesman and R&D team.
* Provide production photo & video of your order.
* Fast delivery cause we are the original factory.
* After sales services, 5 years warranty.
* OEM & ODM acceptable.
Certifications
Our products are certificated by UL, CE, CQC, TUV, RoHS, CCC, IP67/IP68. Contact us to get the HD pictures of our certification! The quality is very good, if you need any other certification, we can do it for you too.
Contact Us
Frequently Asked Questions
What is the waterproof rating of the M16 connector?
The M16 connector features IP67 and IP68 waterproof ratings, making it suitable for harsh outdoor environments including street lighting applications. All shipments are individually tested for waterproof performance before delivery.
How many pin configurations are available for the M16 connector?
The M16 connector is available in 2, 3, 4, 5, 6 (2+4), 7, and 8 pin configurations, offering flexibility for a wide range of electrical connection requirements.
What is the operating temperature range of the M16 connector?
The M16 connector operates reliably within a temperature range of -40℃ to 105℃, making it suitable for extreme weather conditions both in cold and hot climates.
What certifications does the M16 connector hold?
Our M16 connectors are certified by UL, CE, CQC, TUV, RoHS, CCC, IP67/IP68. If you require additional certifications, please contact us and we can arrange them for your specific needs.
Do you support OEM and ODM orders for M16 connectors?
Yes, we fully support OEM and ODM orders. As the original factory, we can customize products to meet your specific requirements, including branding, packaging, and technical specifications.
What is the warranty period and how fast is the delivery?
We offer a 5-year after-sales warranty on our M16 connectors. As the original manufacturer, we are able to ensure fast delivery times. Our sales team and R&D team also provide strong technical support throughout the entire process.
