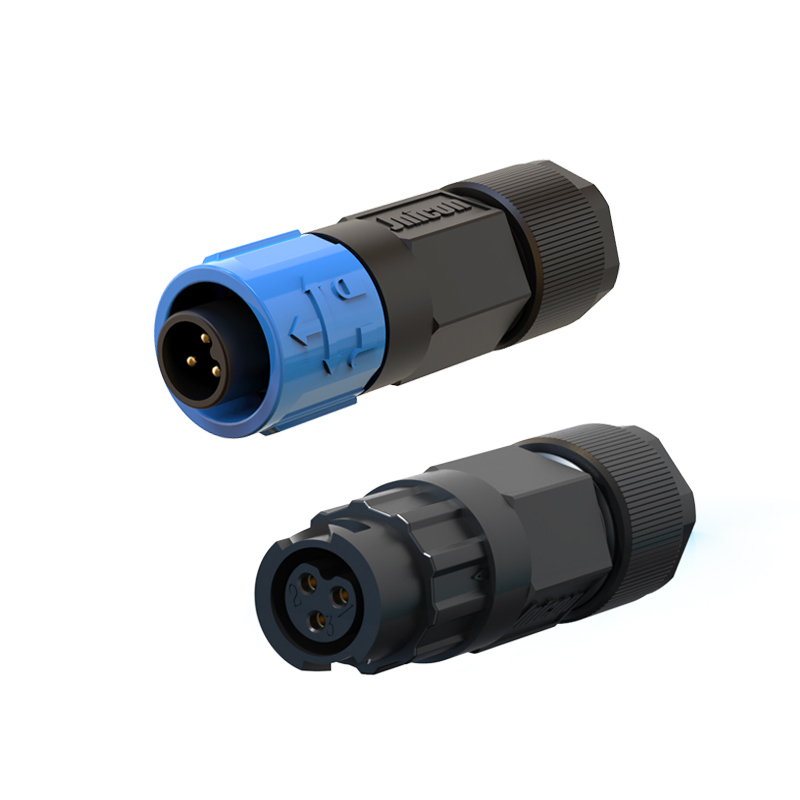

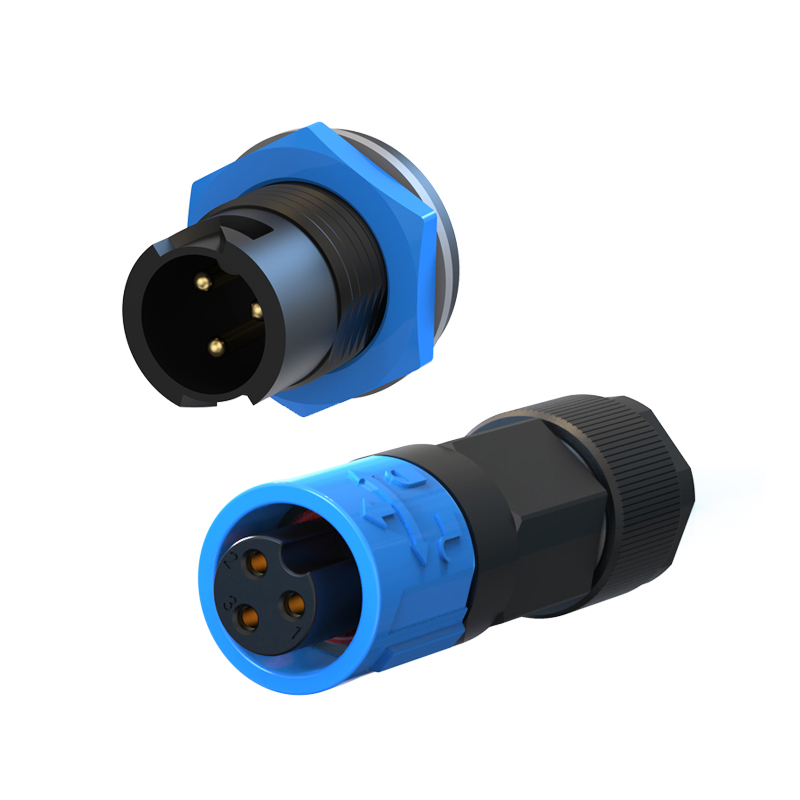

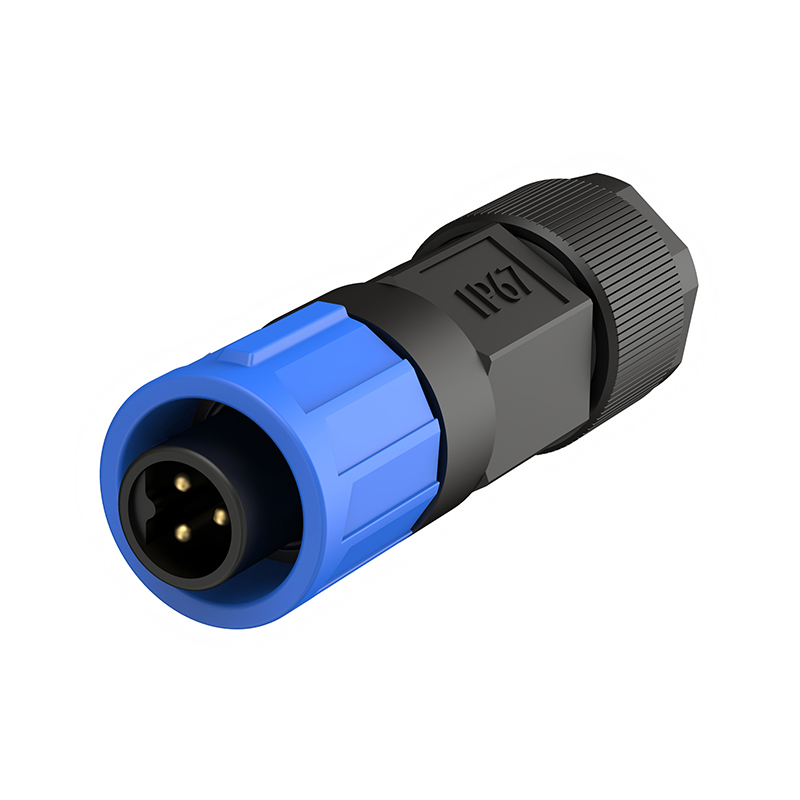

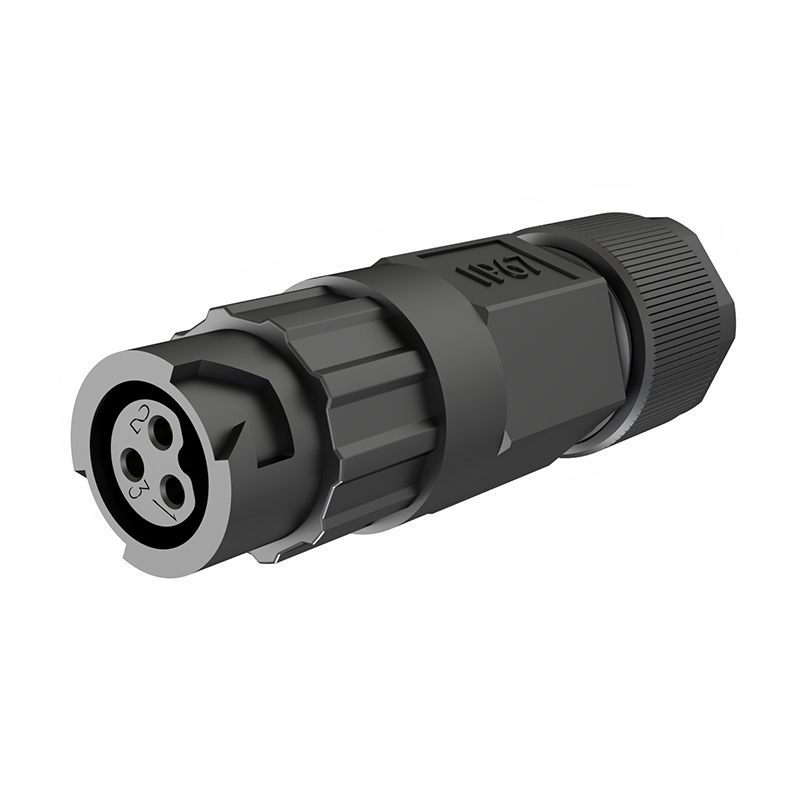

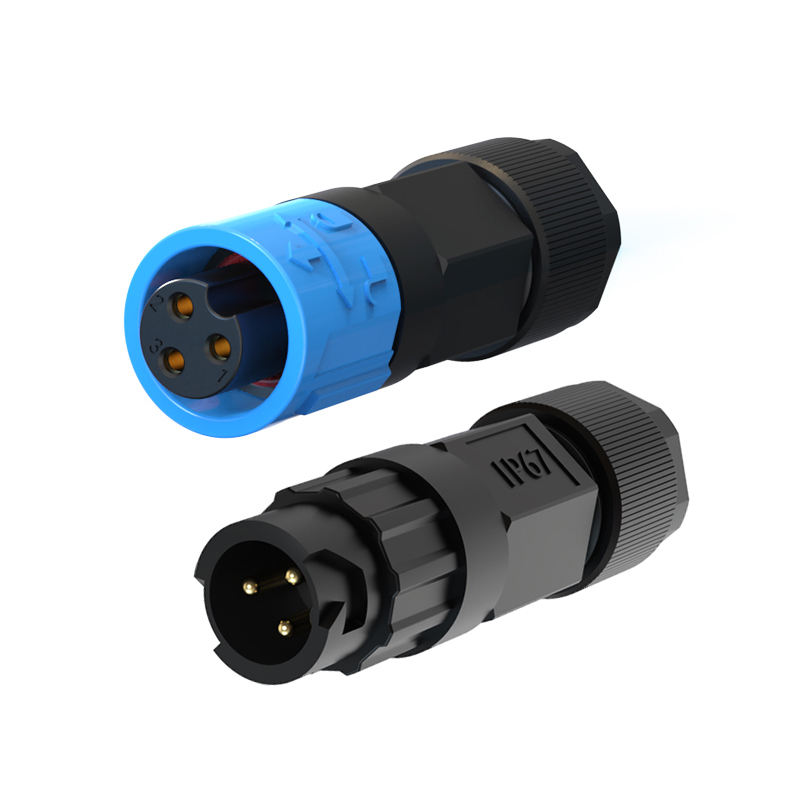

M12 Waterproof Connector Cable - IP67/68, Push Locking, Screw Locking, China Suppliers & Factory
Product Feature
⊕ Advanced structure: Self-locking, Screw locking and bayonet.
⊕ Multiple pin: 2, 3, 4, 5pin are optional.
⊕ Assembly: wire to wire type (without cable), wire to wire by over-molding, wire to board.
⊕ Colors: Black, blue, and yellow supported.
⊕ Cable length: Different cable length can be customized.
Product Specification
| Connecting Mode | Screw Locking | |||
| Pins No. | 2 | 3 | 4 | 5 |
| Rated Current | 10A / 300V | 10A +5A / 125V+60V | 10A / 125V | |
| Contact Diameter X No. | ø 1.5 | ø 1.5 + ø 1.0 | ø 1.5 | |
| Withstanding Voltage | 1500V | |||
| Protective Level | IP68 | |||
| Cable Gauge | 0.3mm²–1.5mm² (24–16AWG) | 0.3mm²+1.0mm² (24–18AWG) | ||
| Diameter Range | MAX ø 9.0mm | |||
| Operating Temp. | -40℃ ~ 105℃ | |||
| Copper Needles Material | Copper Alloy | |||
| Flame Resistant | 94-V0 | |||
Our Services
✔ We will help you to select the right product.
✔ Strong technical support by our salesman and R&D team.
✔ Provide production photo & video of your order.
✔ Fast delivery cause we are the original factory.
✔ After sales services, 5 years warranty.
✔ OEM & ODM acceptable.
Certifications
Our products are certificated by UL, CE, CQC, TUV, RoHS, CCC, IP67/IP68. Contact us to get the HD pictures of our certification! The quality is very good, if you need any other certification, we can do it for you too.
Company Profile
Jnicon Group is a leading high-tech enterprise specialized in advanced connection solutions, with core products including industrial connectors, high-current connectors, controllers, 5G base station connectors, LED connectors, marine and yacht connectors, glass sintered connectors and communication cables. Tailored for multi-scenario application needs, our products are widely adopted in high-growth and key industries like new energy vehicles (NEVs), energy storage, electric vehicles, solar inverters, AI automation, 5G communication, aerospace, oil exploration/production, high-speed rail, metro systems, LED lighting and shipbuilding worldwide.
