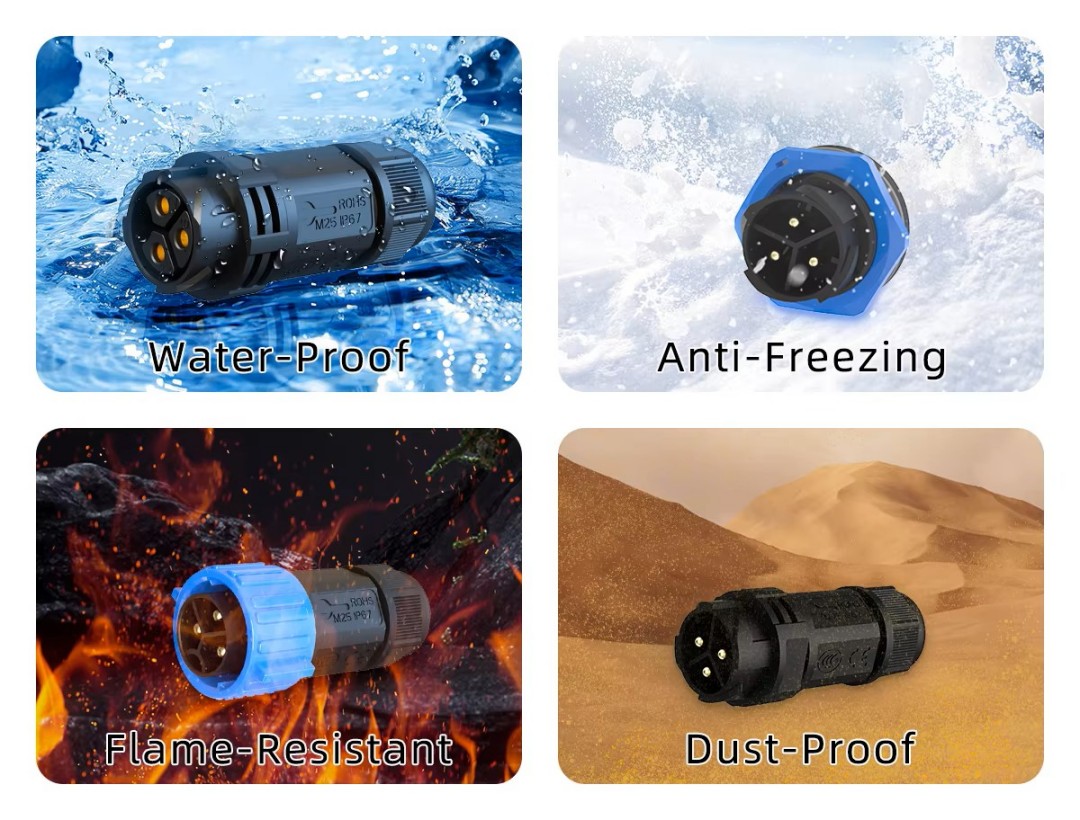

M12 Circular Sensor Cable Waterproof Connector
M12 Series connectors mainly feature:

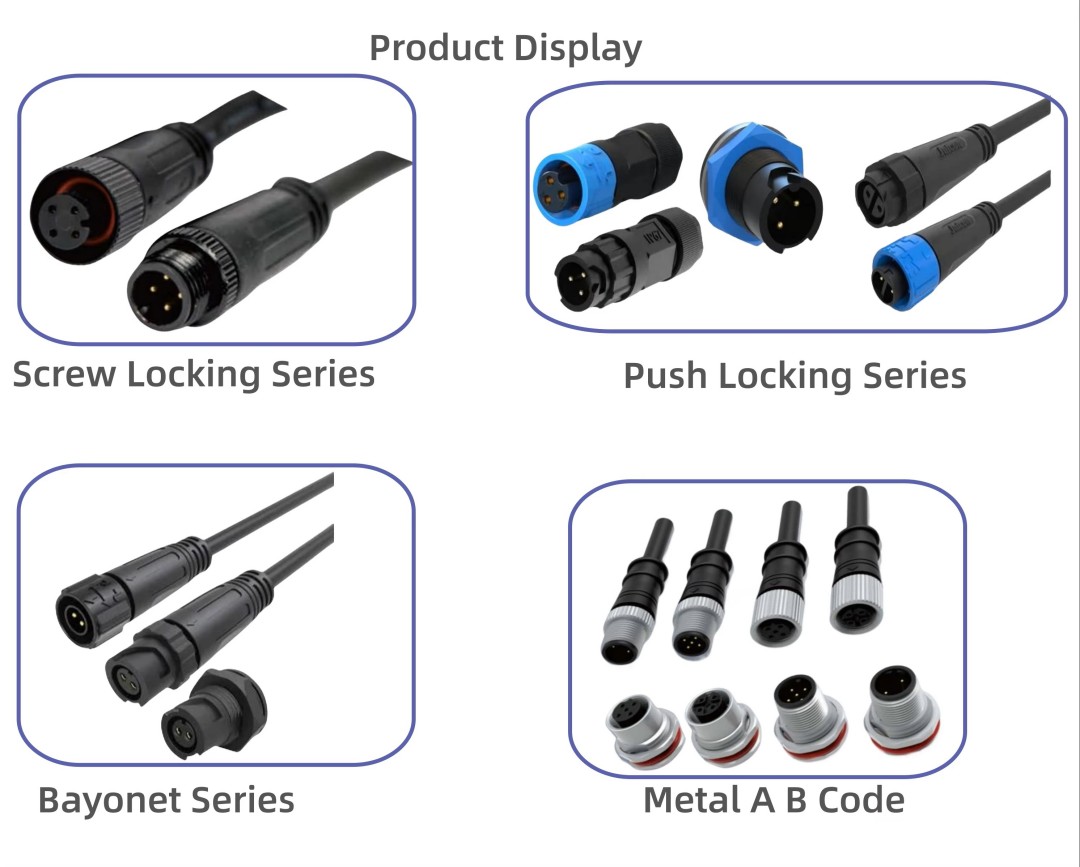

⊕ Advanced structure: Self-locking, Screw locking and bayonet.
⊕ Multiple pin: 2, 3, 4, 5pin are optional.
⊕ Assembly: wire to wire type (without cable), wire to wire by over-molding, wire to board.
⊕ Colors: Black, blue, and yellow supported.
⊕ Cable length: Different cable length can be customized.

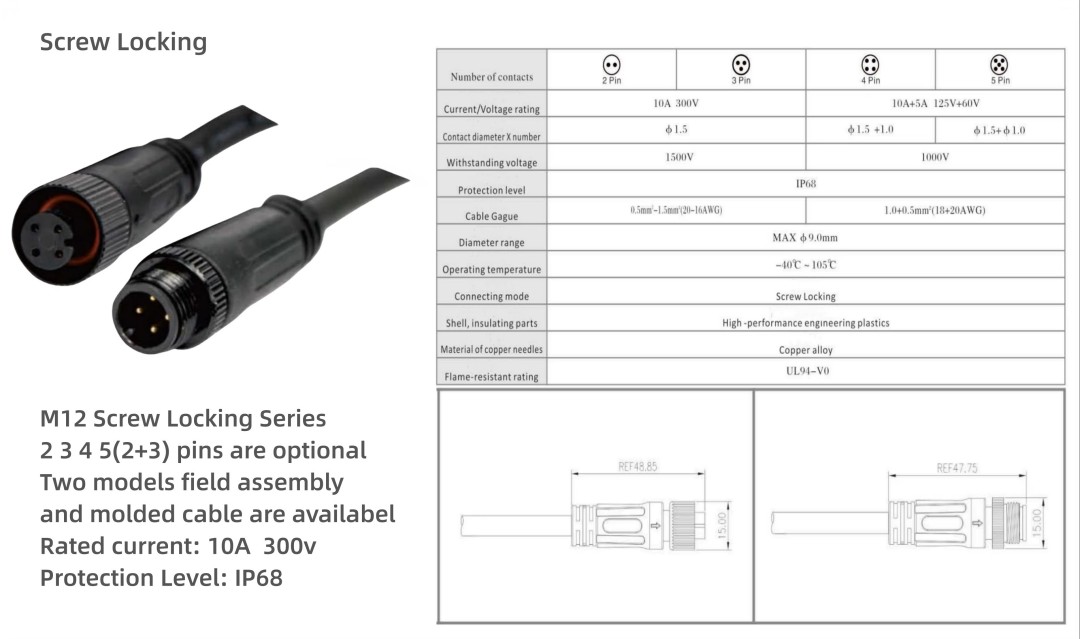

Connecting Mode |
Screw Locking |
|||
Pins No. |
2 |
3 |
4 |
5 |
Rated Current |
10A |
10A +5A |
10A |
|
Contact Diameter X No. |
ø 1.5 |
ø 1.5+ ø 1.0 |
ø 1.5 |
|
Withstanding Voltage |
1500V |
|||
Protective Level |
IP68 |
|||
Cabel Gague |
0.3mm2-1.5mm2 |
0.3mm2+1.0mm2 |
||
Diamter Range |
MAX ø 9.0mm |
|||
Operating Tem. |
-40℃~105℃ |
|||
Copper Needles Material |
copper alloy |
|||
Flame Resistant |
94-V0 |
|||
-
* We will help you to select the right product.
* Strong technical support by our salesman and R&D team.
* Provide production photo & video of your order. -
* Fast delivery cause we are the original factory.
* After sales services, 5 years warranty.
* OEM & ODM acceptable
Our products are certificated by UL,CE, CQC, TUV, RoHS, CCC,IP67/IP68. Contact us to get the HD pictures of our certification! The quality is very good, if you need any other certification, we can do it for you too.
