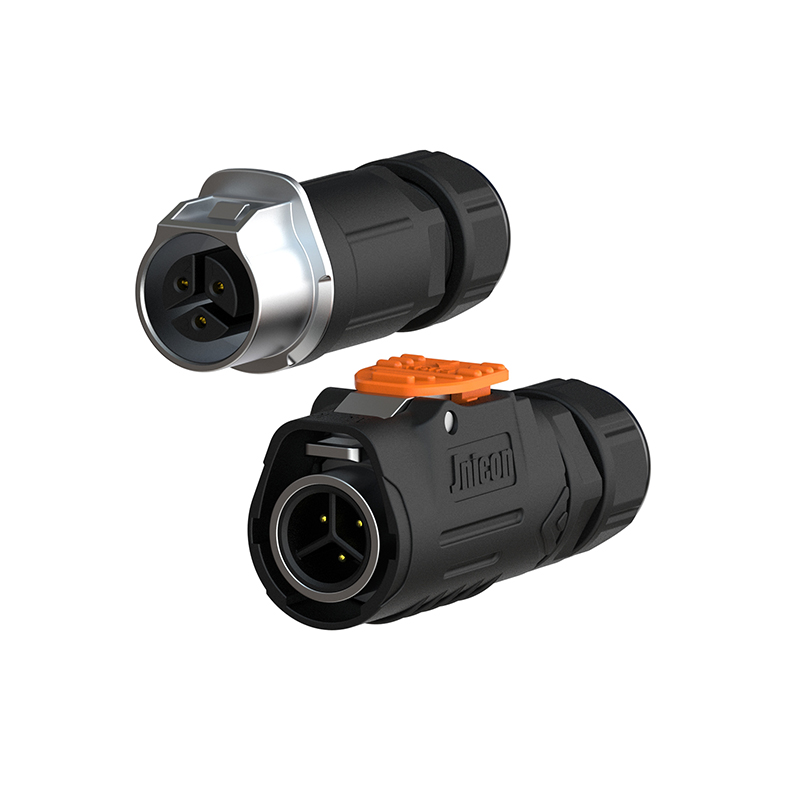

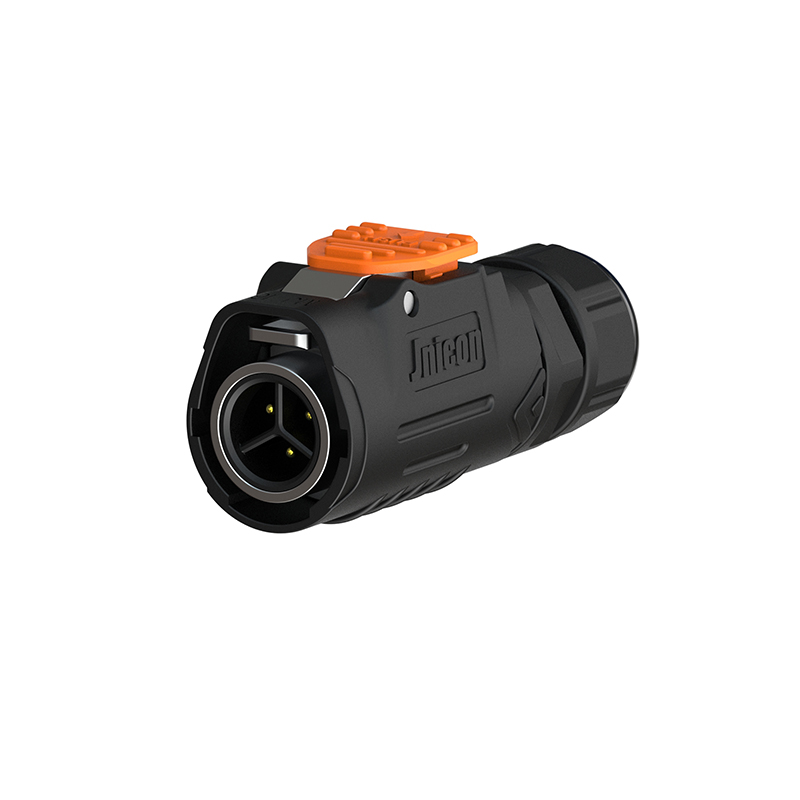

Jnicon Power Solar IP67 Metal Socket Quick Lock Waterproof Connector

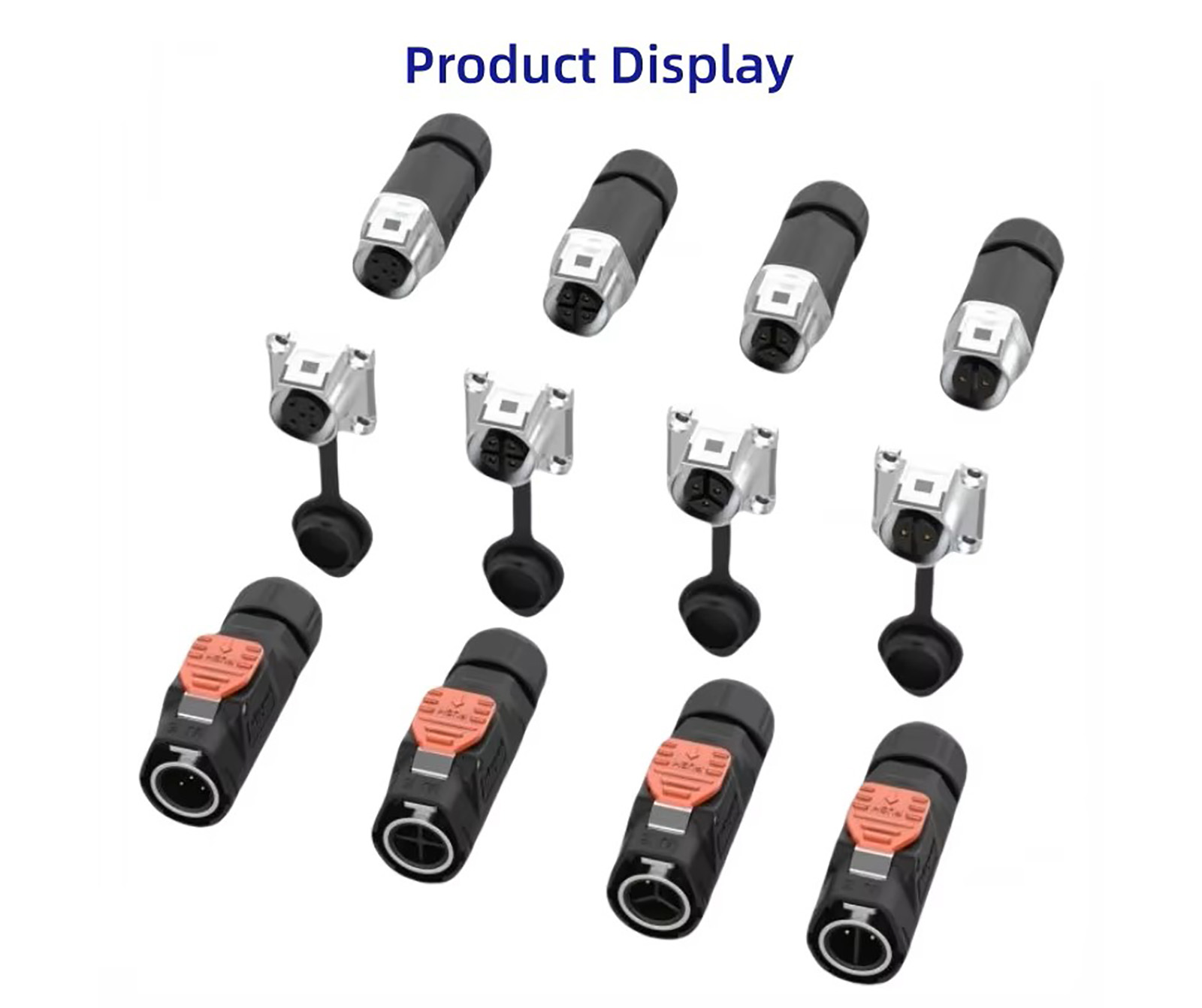

MJ16 Series connectors mainly feature:

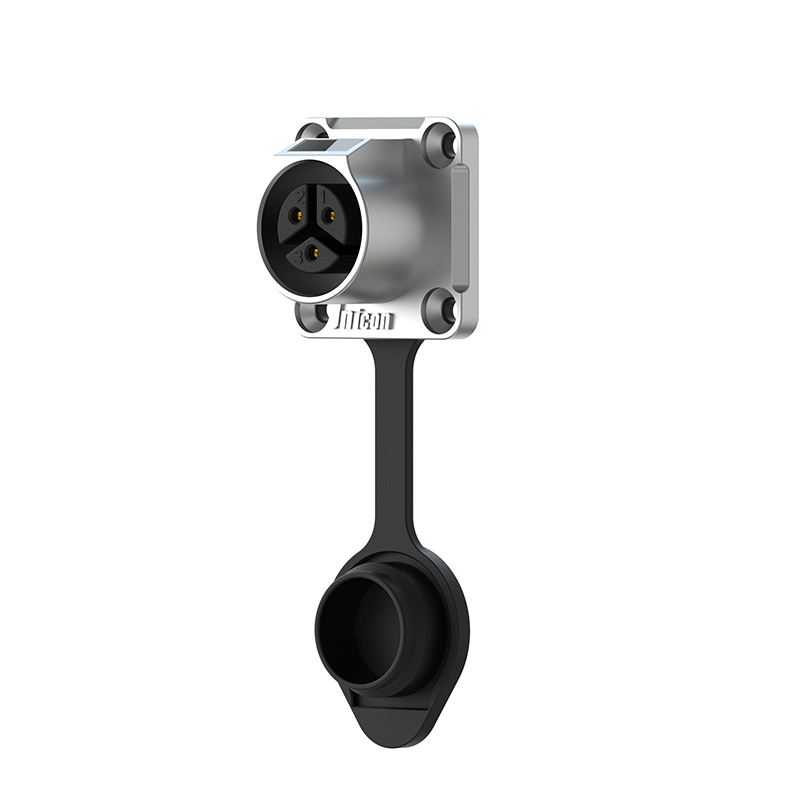

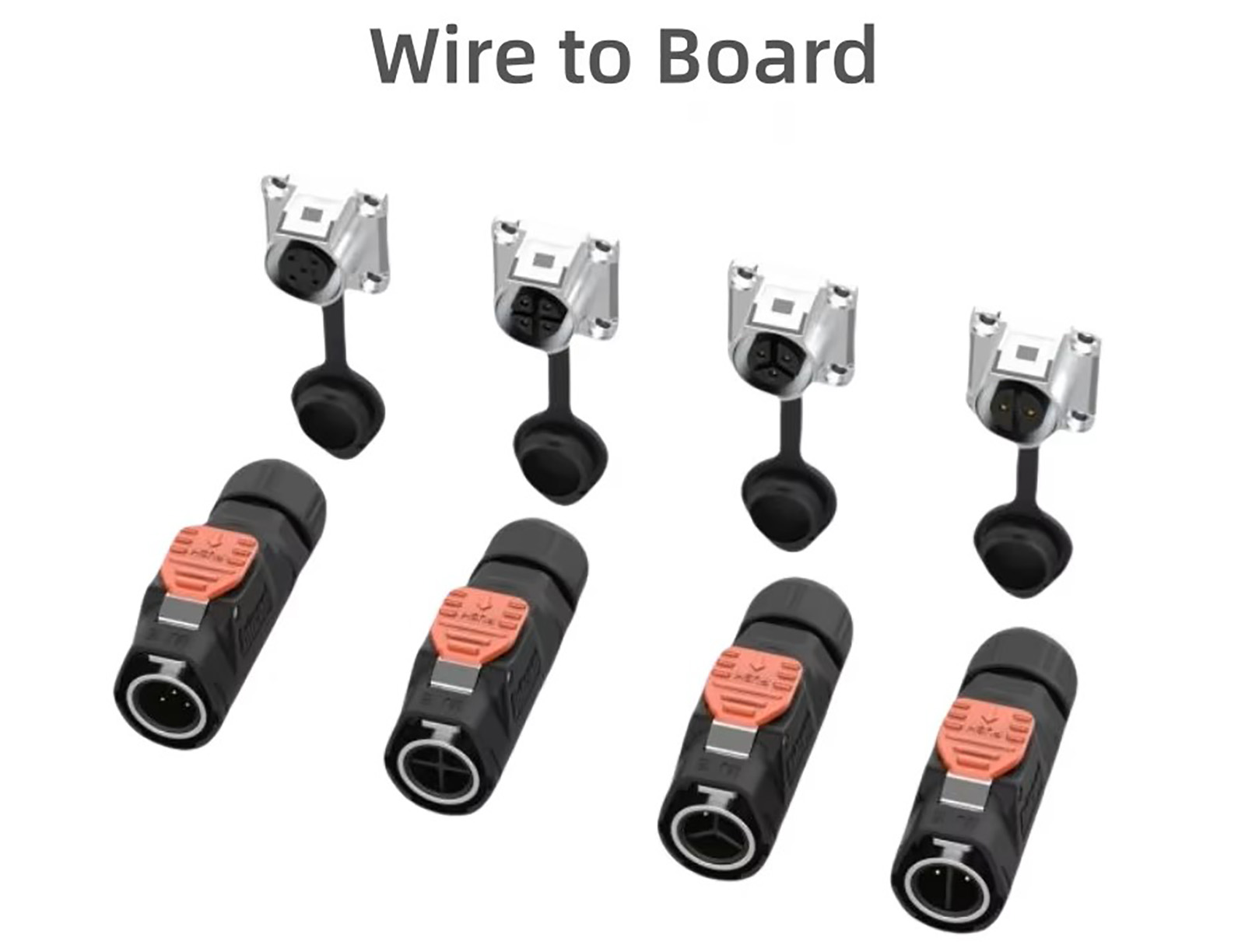

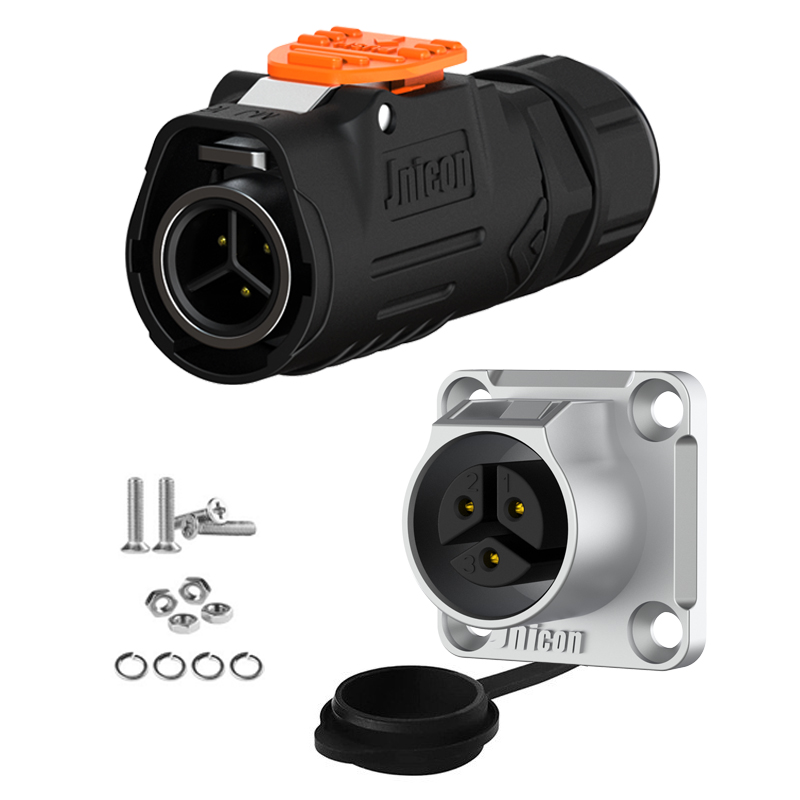

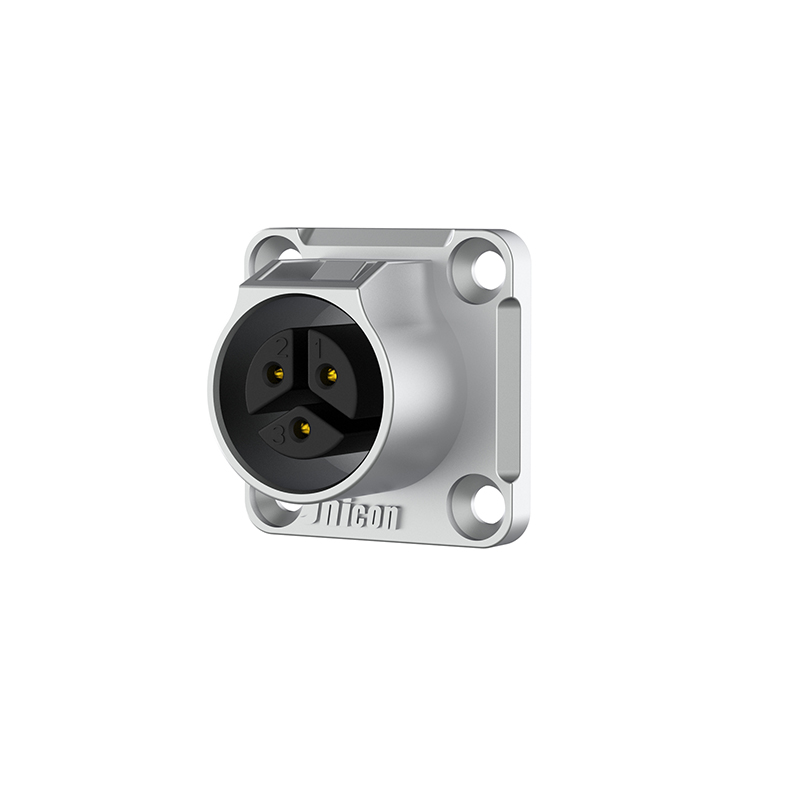

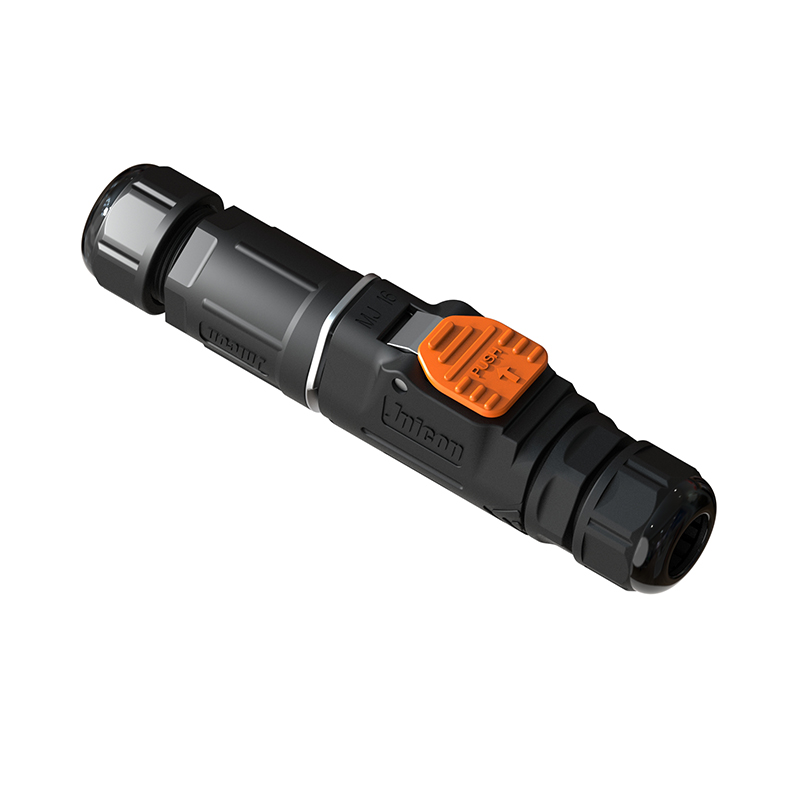

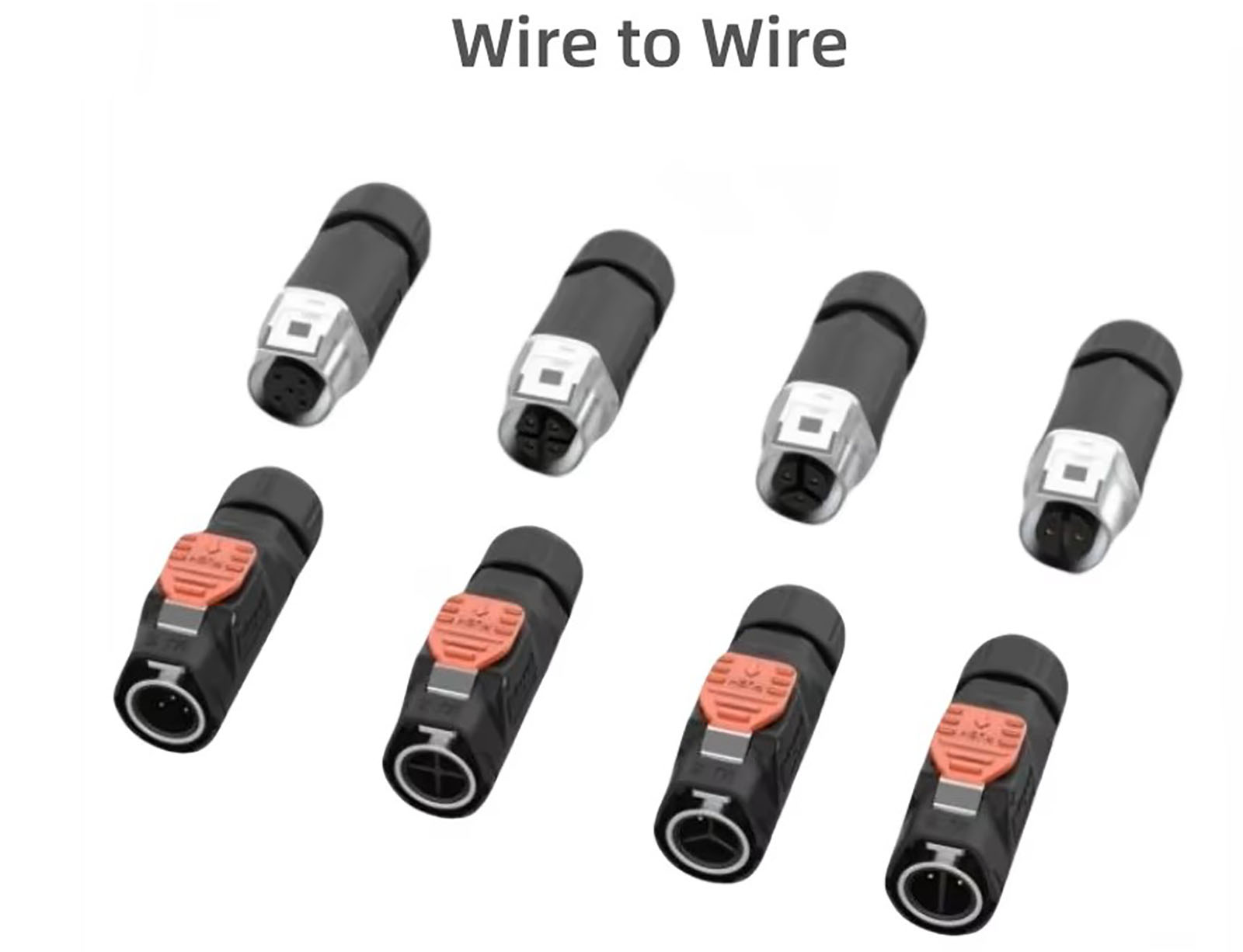

This series is available for cable to cable (in-line) and cable to panel connection.
Each side can choose from male or female contact.

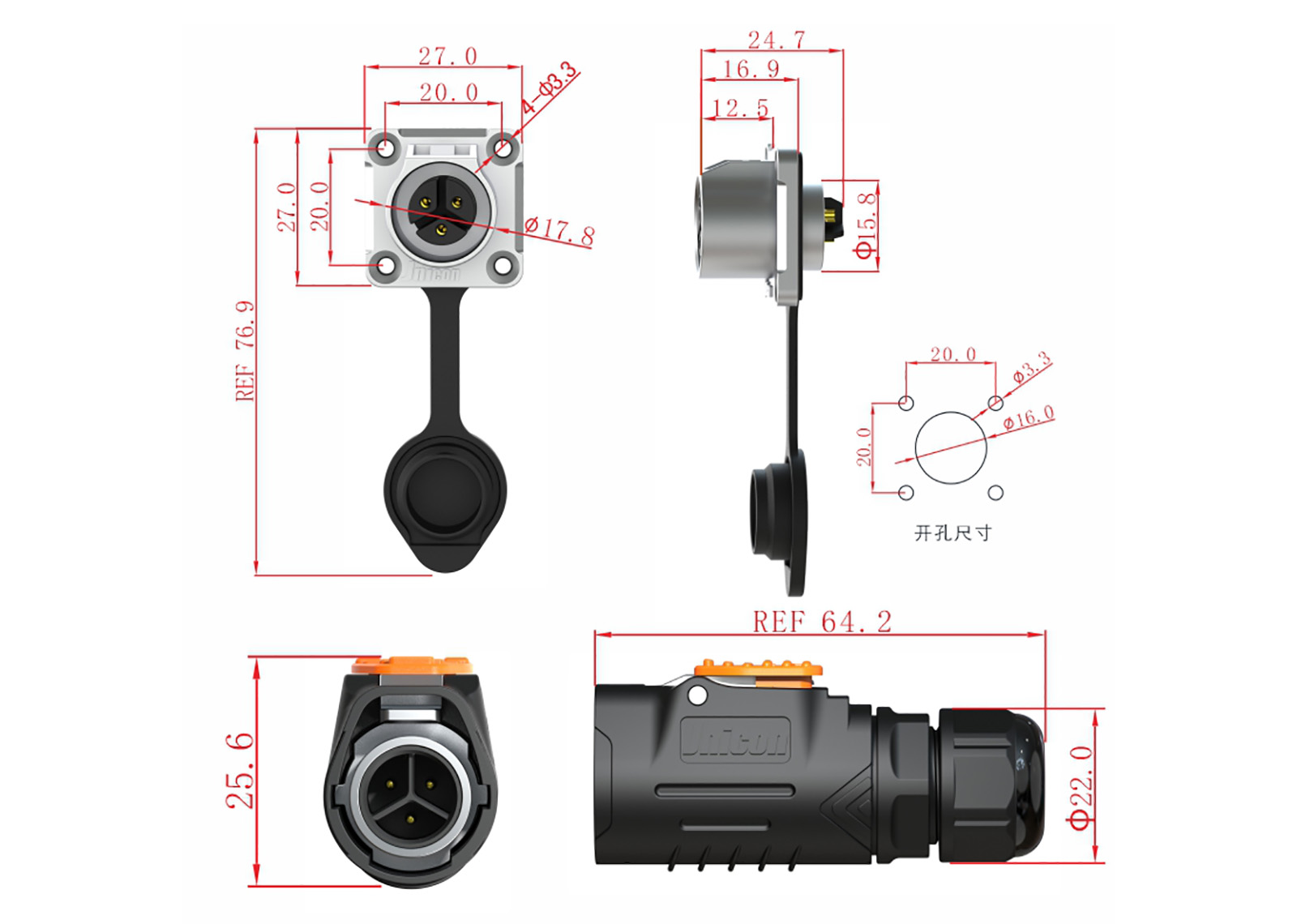

⊕ Panel-hole cutout size: 16mm
⊕ Number of contacts: 2-8 with gold plated contacts
⊕ Rated current: 10A-3A
⊕ IP rating: IP67 after mated
⊕ Cable outer diameter: Max 10mm²
Connecting Mode |
Push Locking |
|||
Pins No. |
2 |
3 |
4 |
5 |
Rated Current |
10A |
5A |
||
Contact Diameter X No. |
ø 1.5 |
ø 1.0 |
||
Withstanding Voltage |
1500V |
1000V |
||
Protective Level |
IP67 |
|||
Cabel Gague |
0.3mm2-1.5mm2 |
0.3mm2-0.75mm2 |
||
Diamter Range |
MAX ø 10.0mm |
|||
Operating Tem. |
-40℃~105℃ |
|||
Copper Needles Material |
copper alloy |
|||
Flame Resistant |
94-V0 |
|||

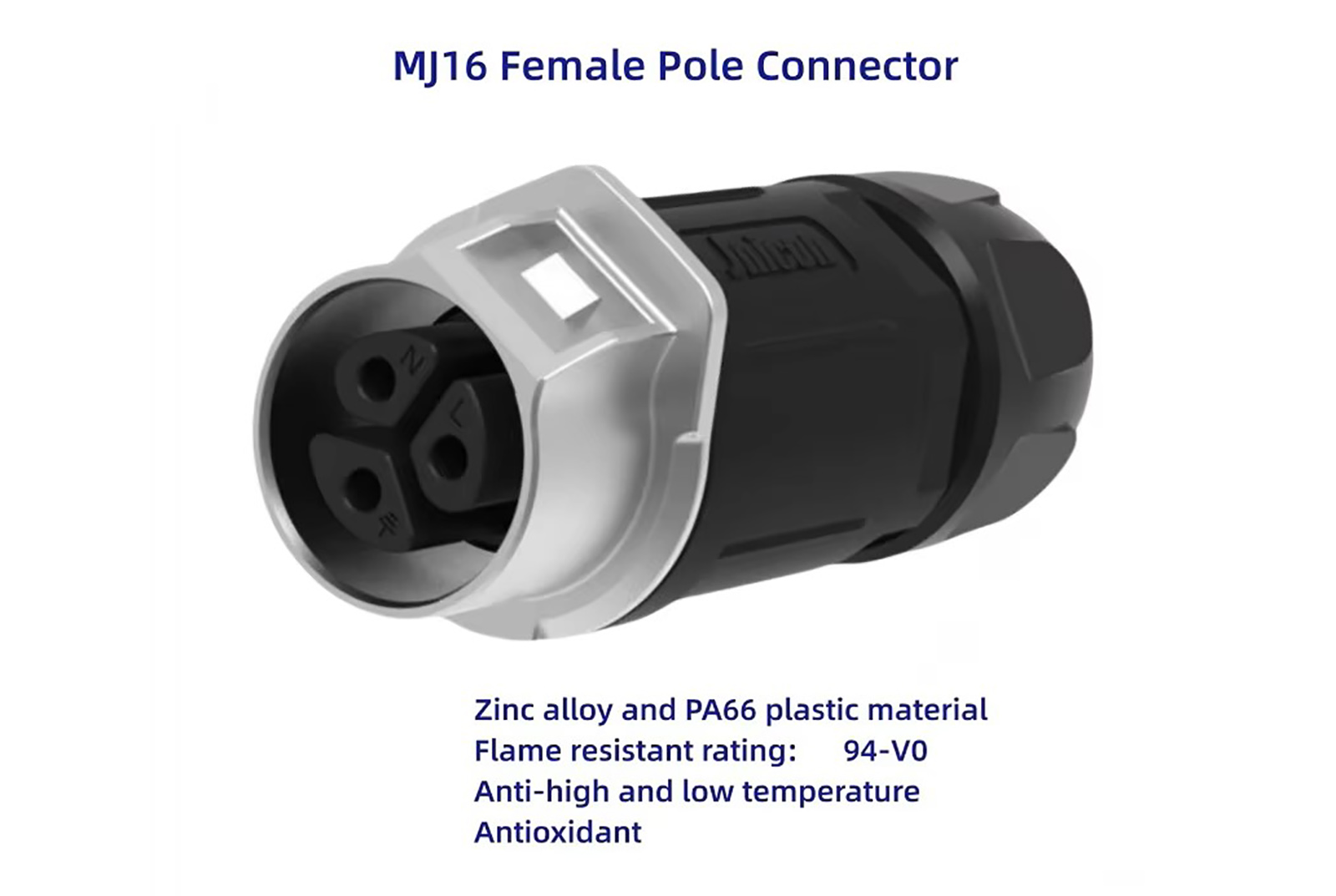

This IP67 waterproof connector is designed for high-end products. The Zin alloy metal made shell made it widely used in many high-end areas,such as medical devices, high-end equipments, testing or measuring equipments, communications field,marine equipments etc. It can be used for both data and power.
-
