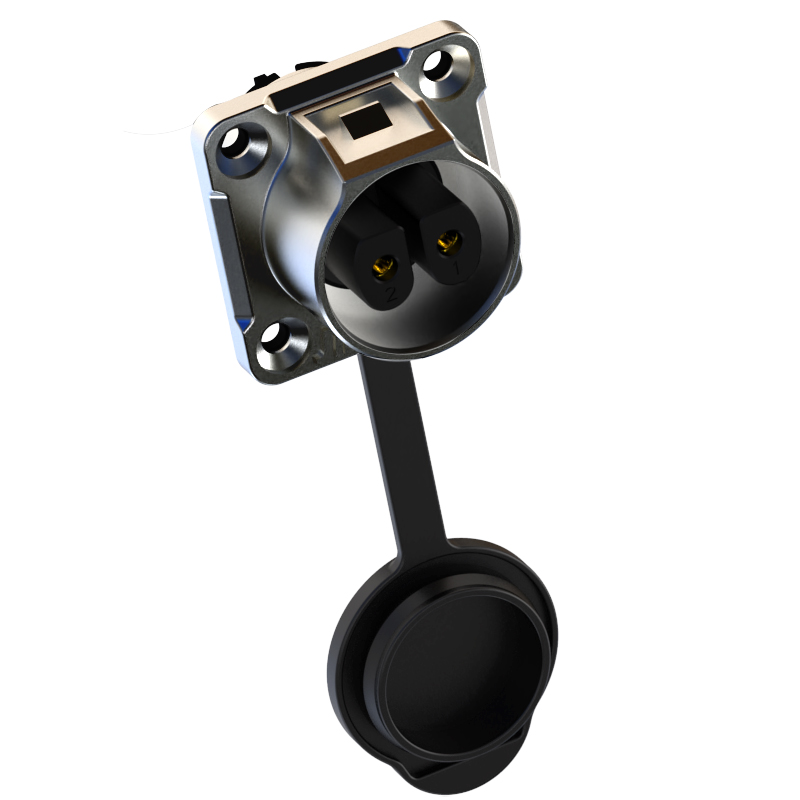

Jnicon MJ20 Power Solar IP67 Metal Socket Quick Lock Waterproof Connector

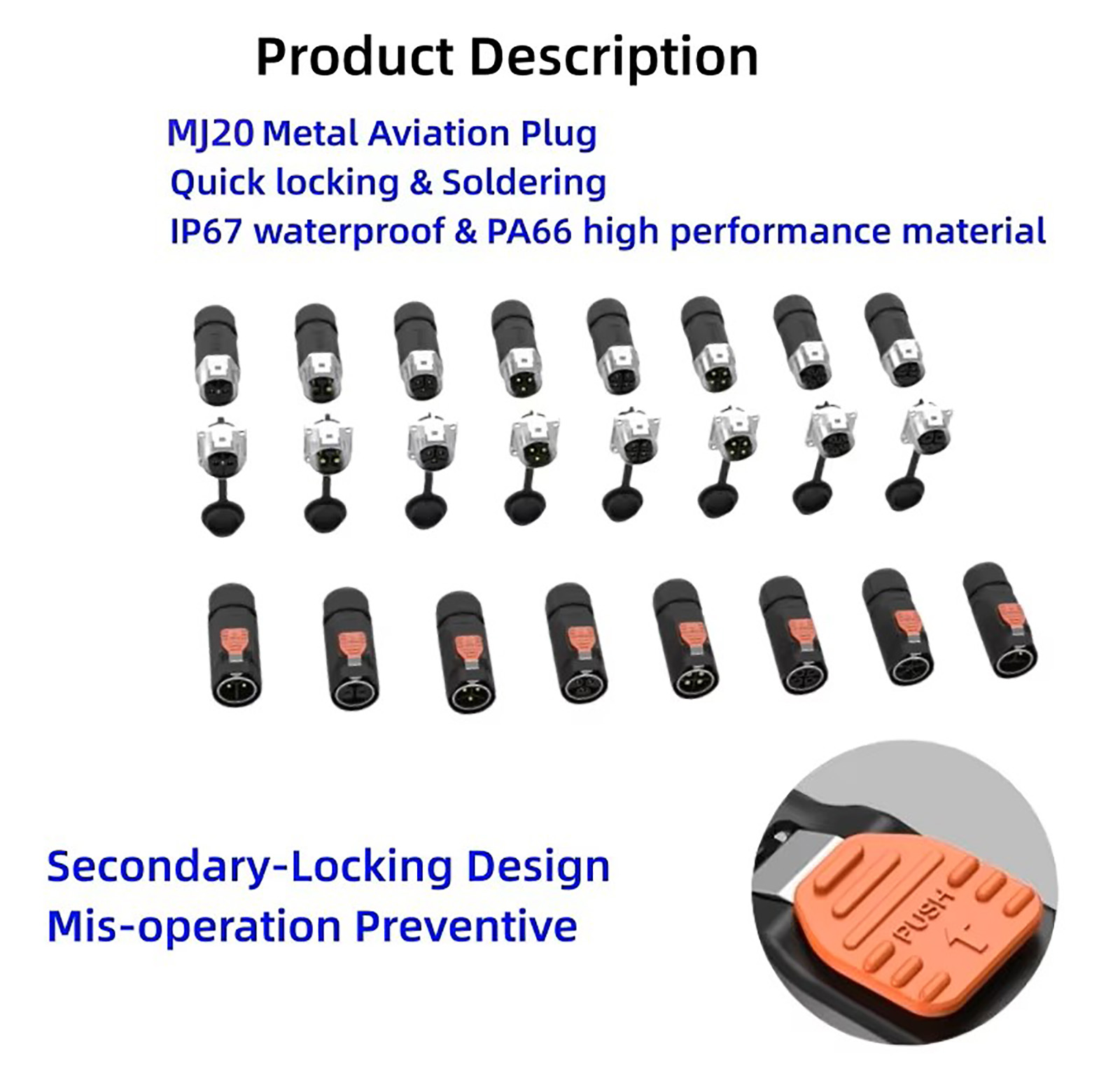

MJ20 Series connectors mainly feature:

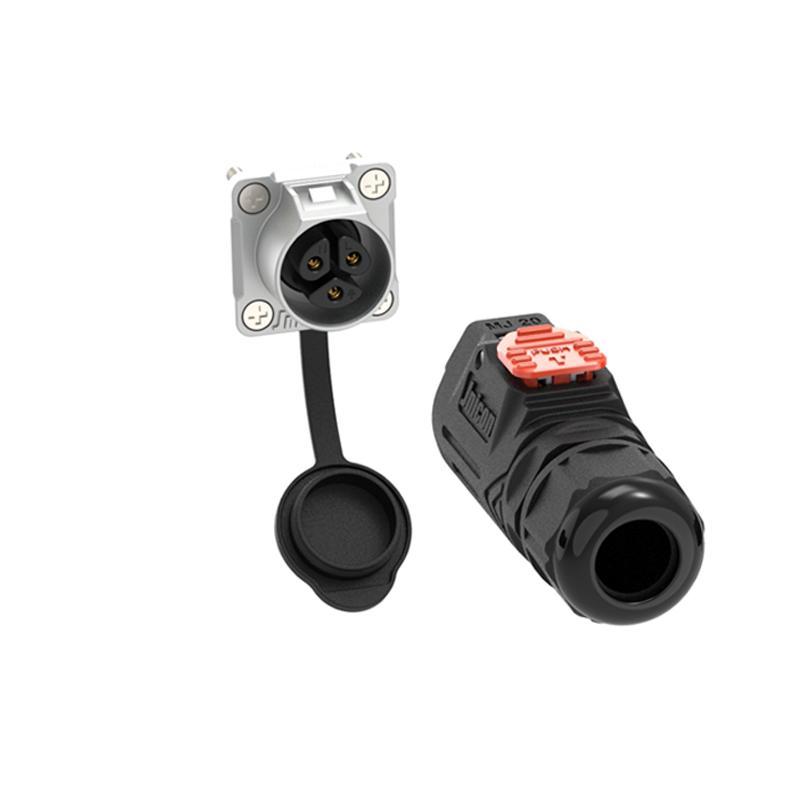

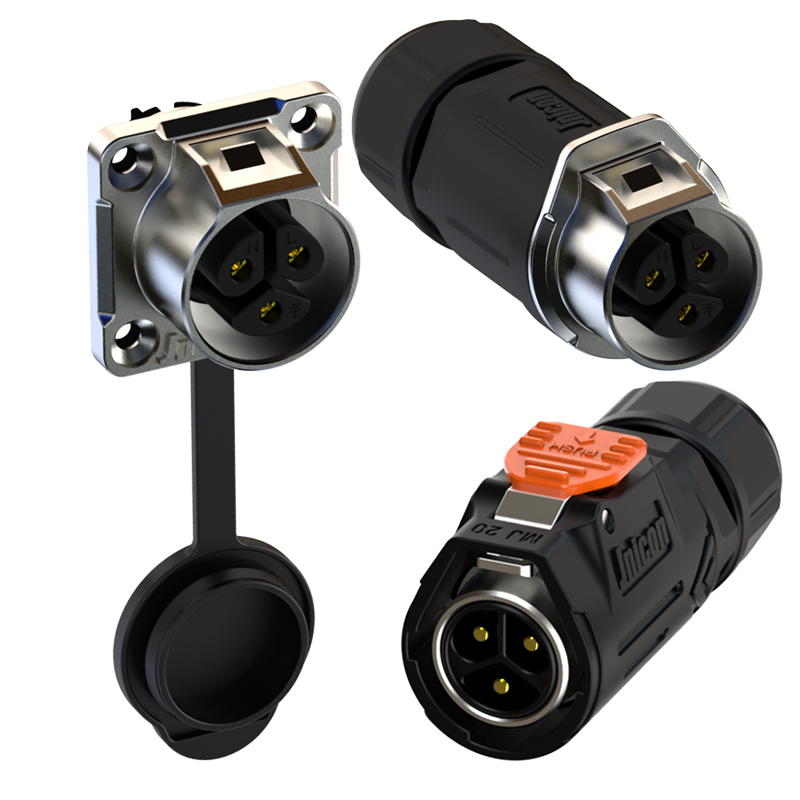

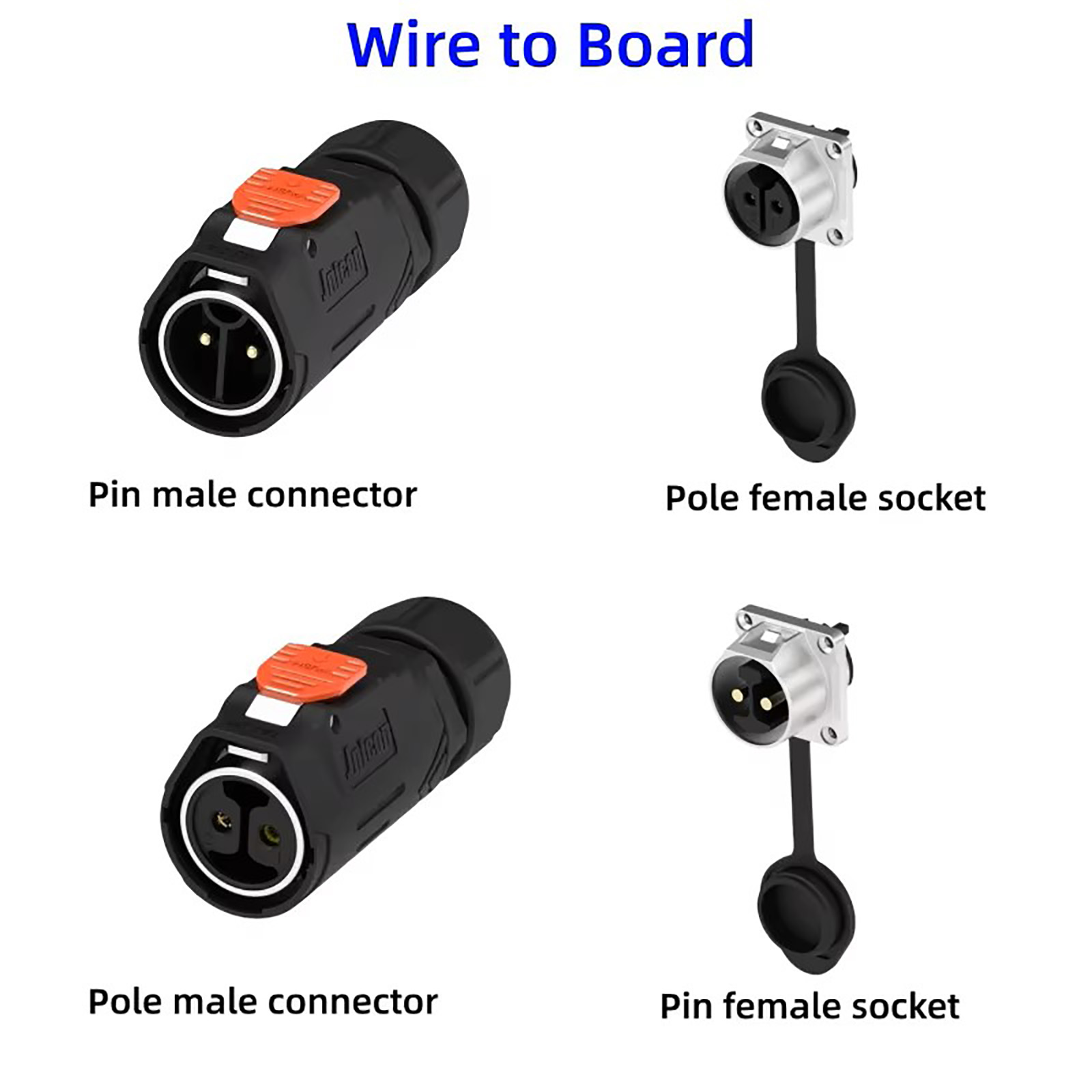

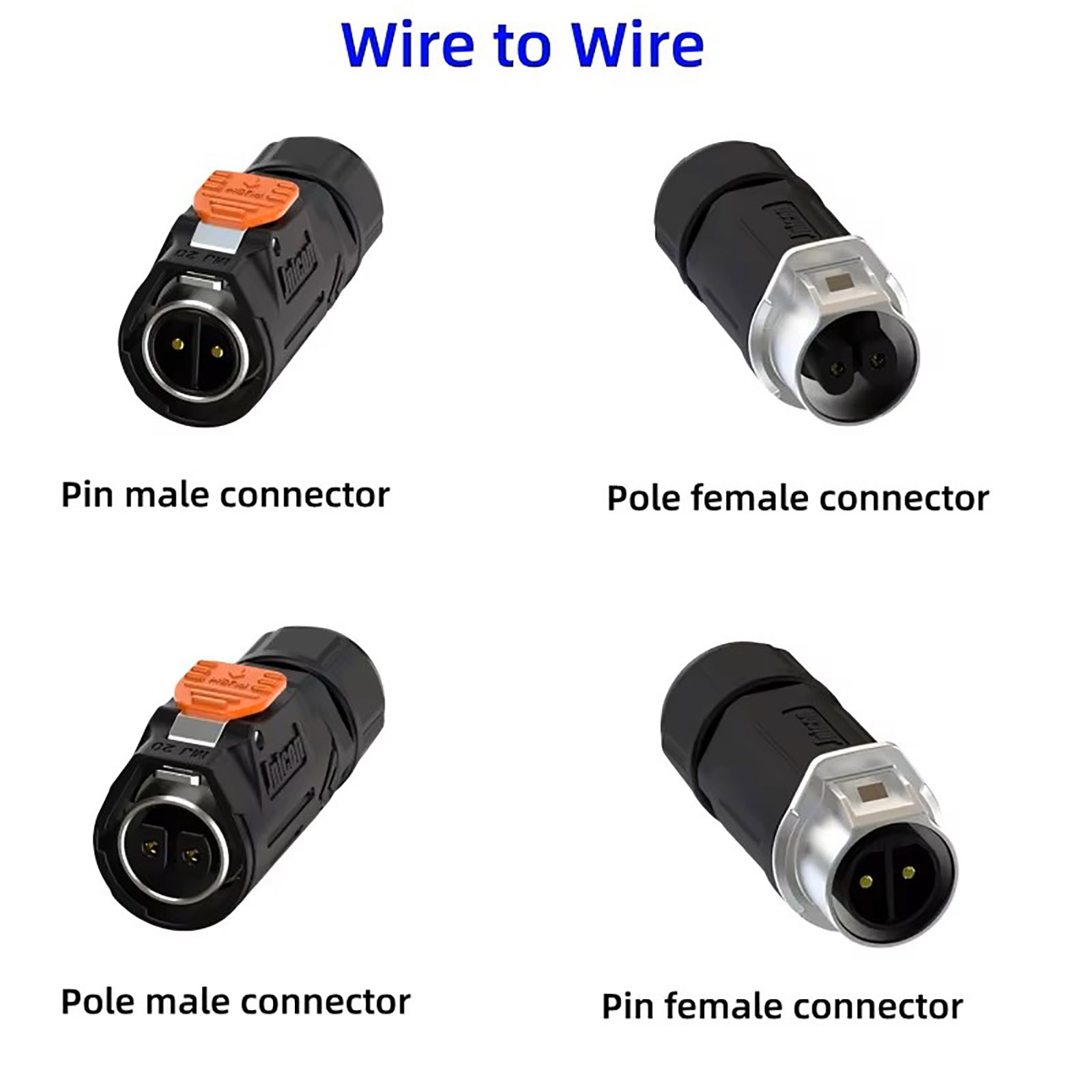

This series is available for cable to cable (in-line) and cable to panel connection.

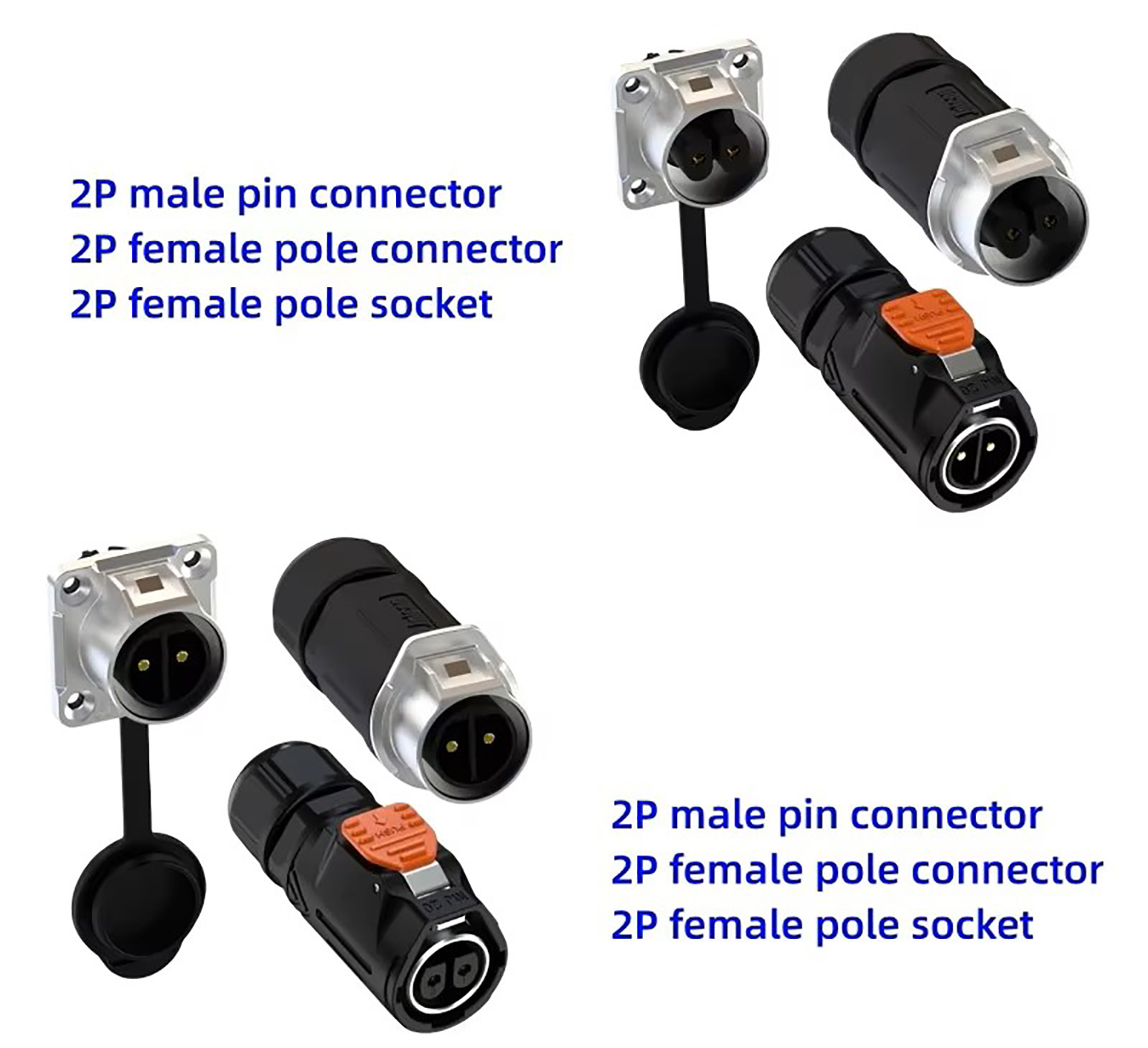

Each side can choose from male or female contact.
⊕ Panel-hole cutout size: 20mm

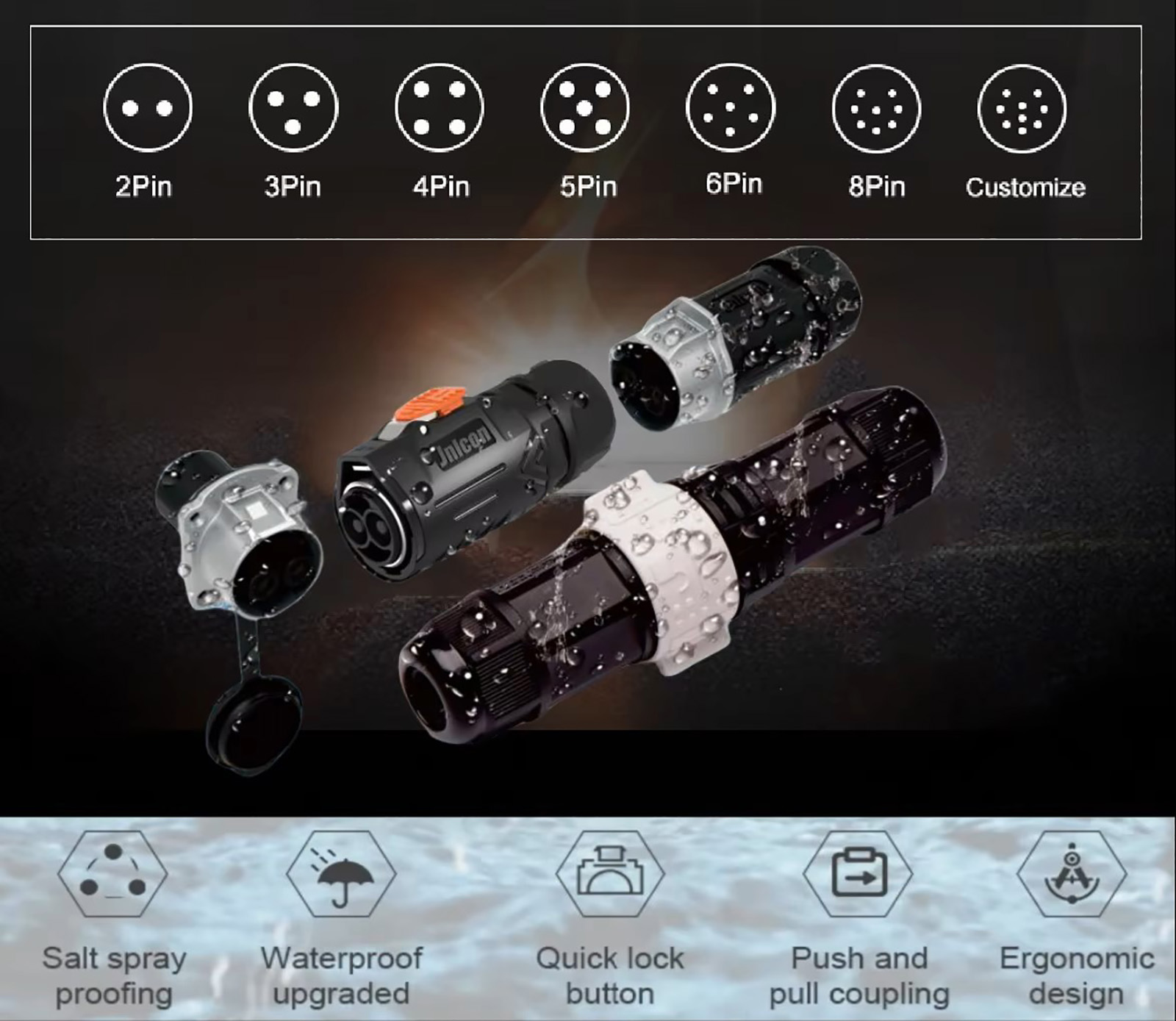

⊕ Number of contacts: 2-8 with gold plated contacts
⊕ Rated current: 20A-5A
⊕ IP rating: IP67 after mated
⊕ Cable outer diameter: Max 13mm²
Connecting Mode |
Push Locking |
||

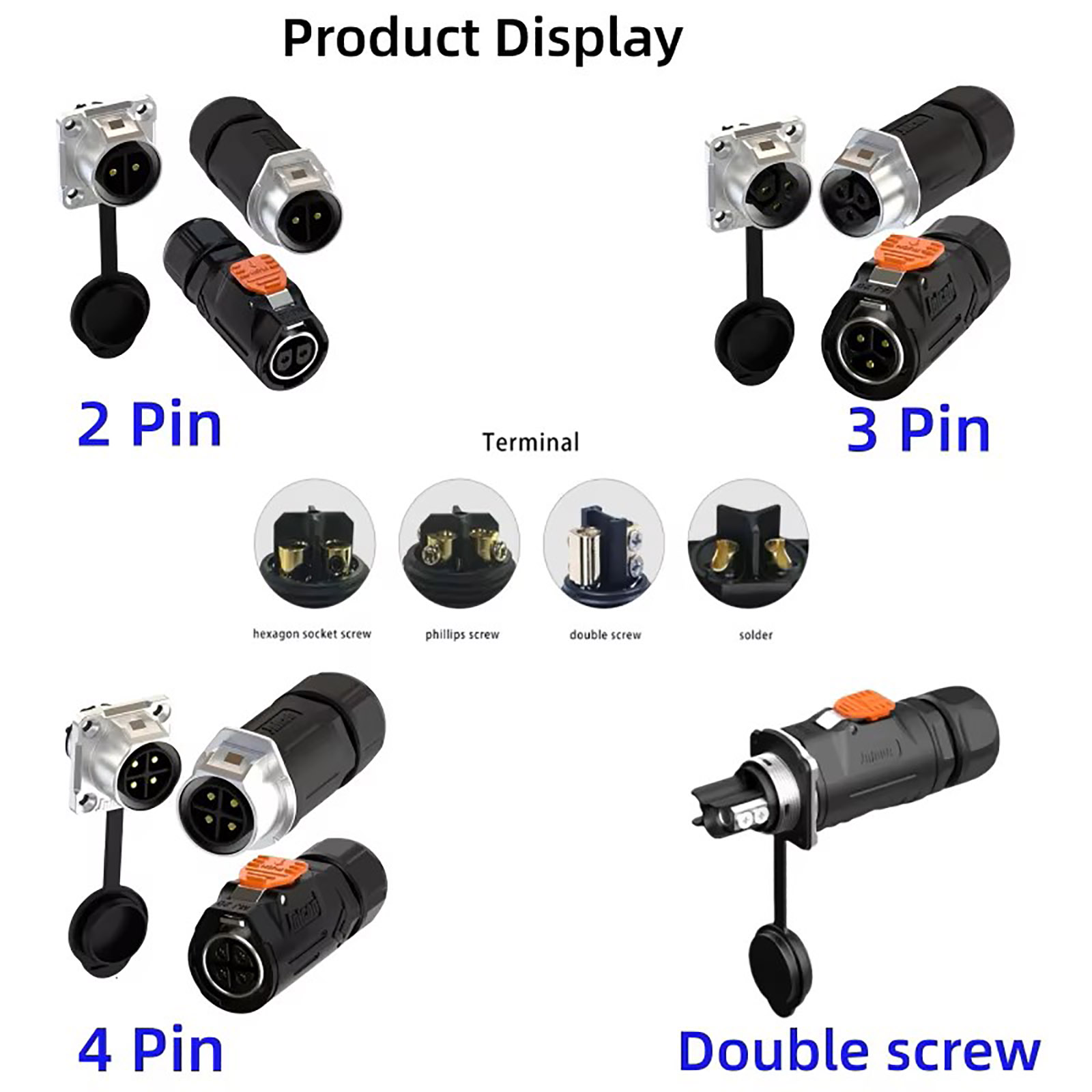

Pins No. |
2 |
3 |
4 |
Rated Current |
20A |
||
Contact Diameter X No. |
ø 2.4 |
||
Withstanding Voltage |
2000V |
||
Protective Level |
IP67 |
||
Cabel Gague |
0.75mm2-2.5mm2 |
||
Diamter Range |
MAX ø 13.0mm |
||
Operating Tem. |
-40℃~105℃ |
||
Copper Needles Material |
copper alloy |
||
Flame Resistant |
94-V0 |
||
This IP67 waterproof connector is designed for high-end products. The Zin alloy metal made shell made it widely used in many high-end areas, such as medical devices, high-end equipments, testing or measuring equipments, communications field,marine equipments etc. It can be used for both data and power.
-
Professional guidance to help you select the ideal product.
-
Robust technical support from our sales representatives and R&D experts.
-
Provision of production photos and videos for your ordered goods.
-
Fast delivery services thanks to our factory-direct production capacity.
-
Reliable after-sales support featuring a 5-year warranty.
-
OEM and ODM customization services are gladly accepted.
Our products hold valid certifications from UL, CE, CQC, TUV, RoHS, CCC, as well as IP67/IP68 ingress protection ratings.
Contact us to get your hands on high-definition images of these authoritative certifications!
Thanks to our superior product quality, we can also assist with the acquisition of any additional certifications you may need.
Jnicon Group is a high-tech enterprise dedicated to advanced connection solution R&D and manufacturing. Its core product portfolio covers industrial connectors, high-current connectors, controllers, 5G base station connectors, LED connectors, marine and yacht connectors, glass sintered connectors as well as communication cables. These high-performance products are extensively applied across a wide spectrum of industries, including new energy vehicles (NEVs), energy storage, electric vehicles, solar inverters, AI automation, 5G communications, aerospace, oil exploration and production, high-speed rail, metro systems, LED lighting and shipbuilding.
