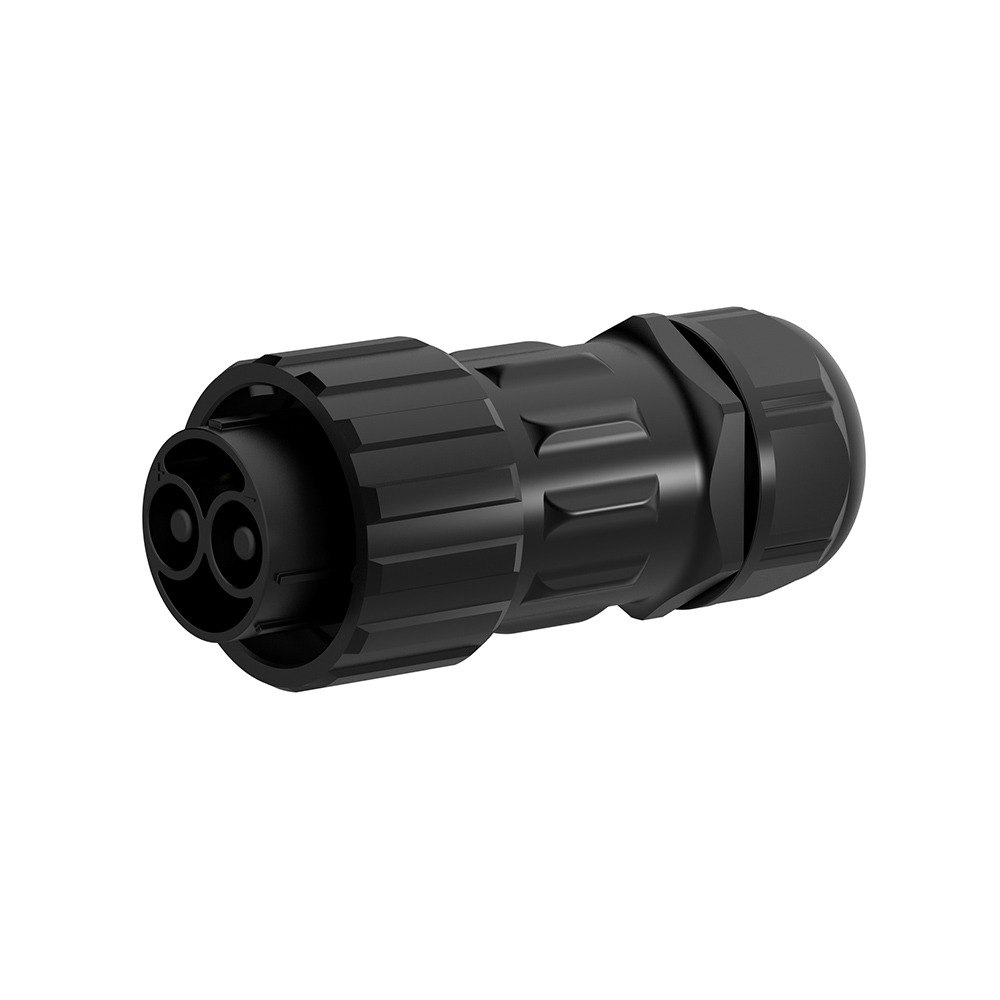

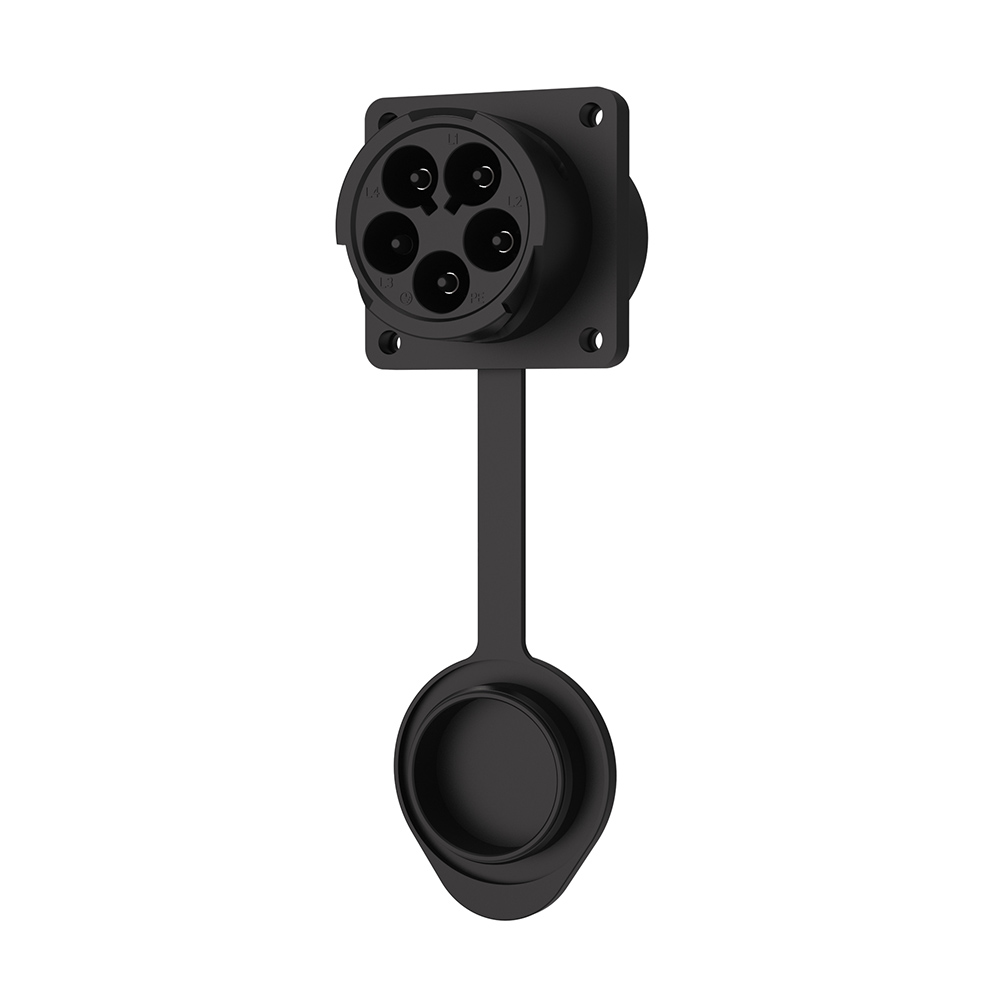

Jnicon M40 Cable Circular Power Plug Waterproof Connector
M40 Series connectors mainly feature:
⊕ Bayonet structure,simple and quick locking design, safe and reliable.
⊕ Crimping wiring way, no screws, no soldering needed.
⊕ Different current rated options: 150A max., welcome ODM.

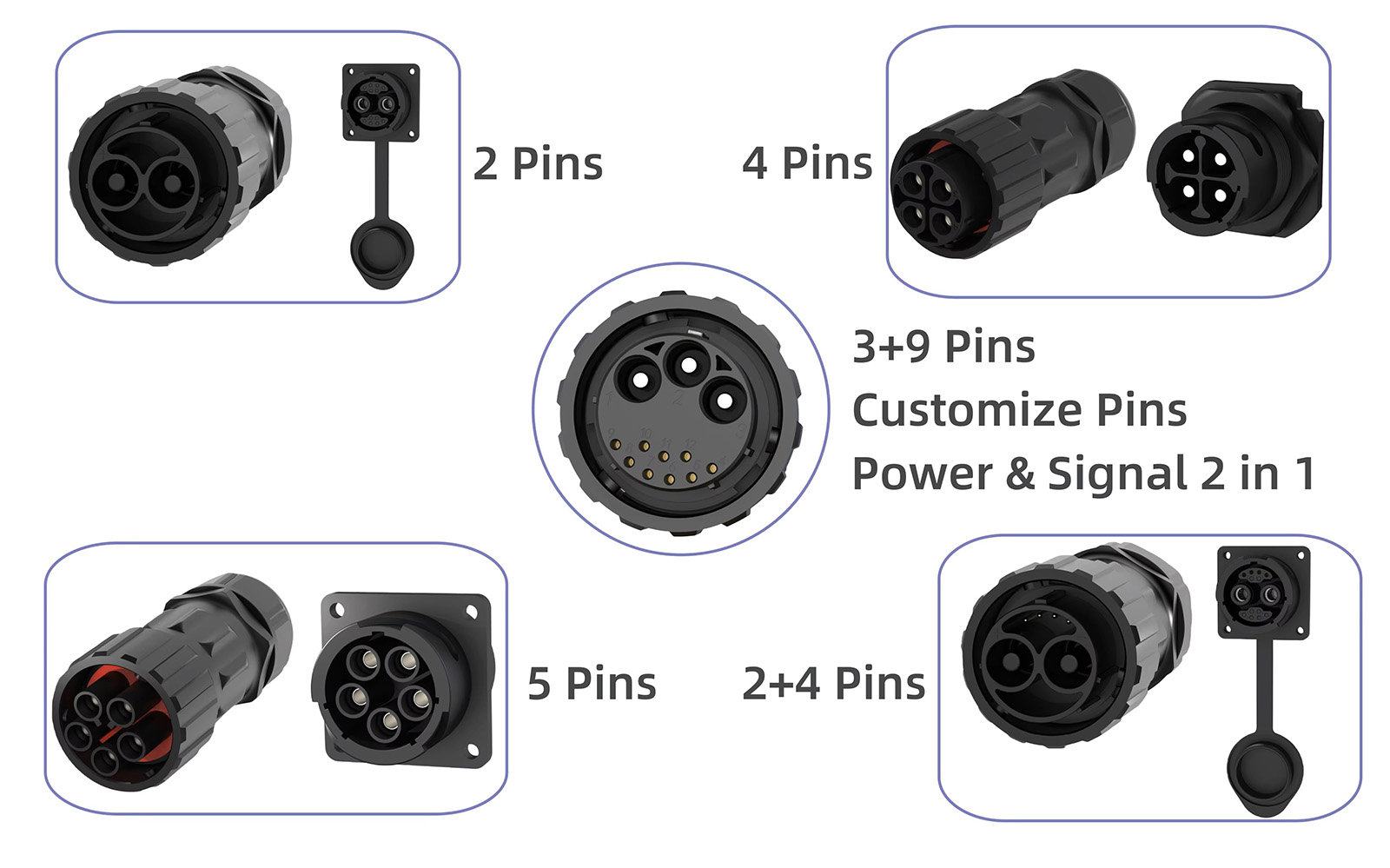

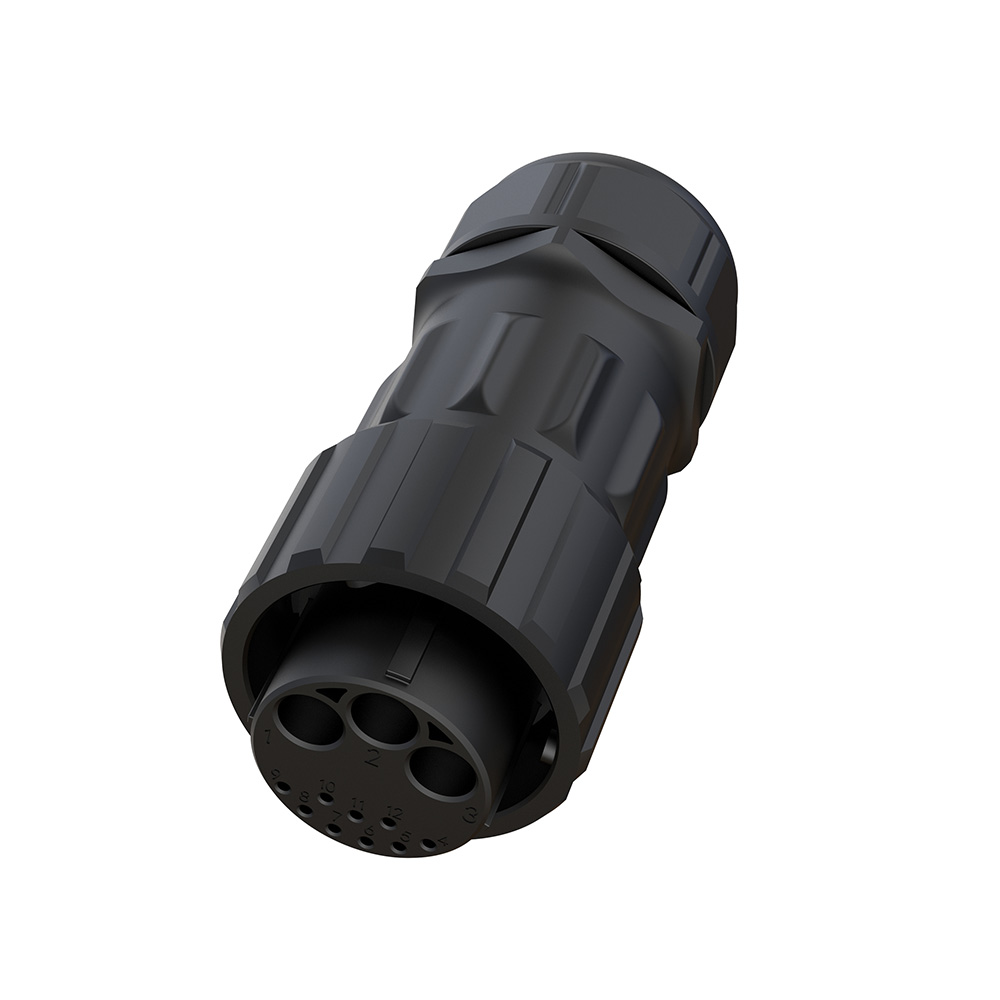

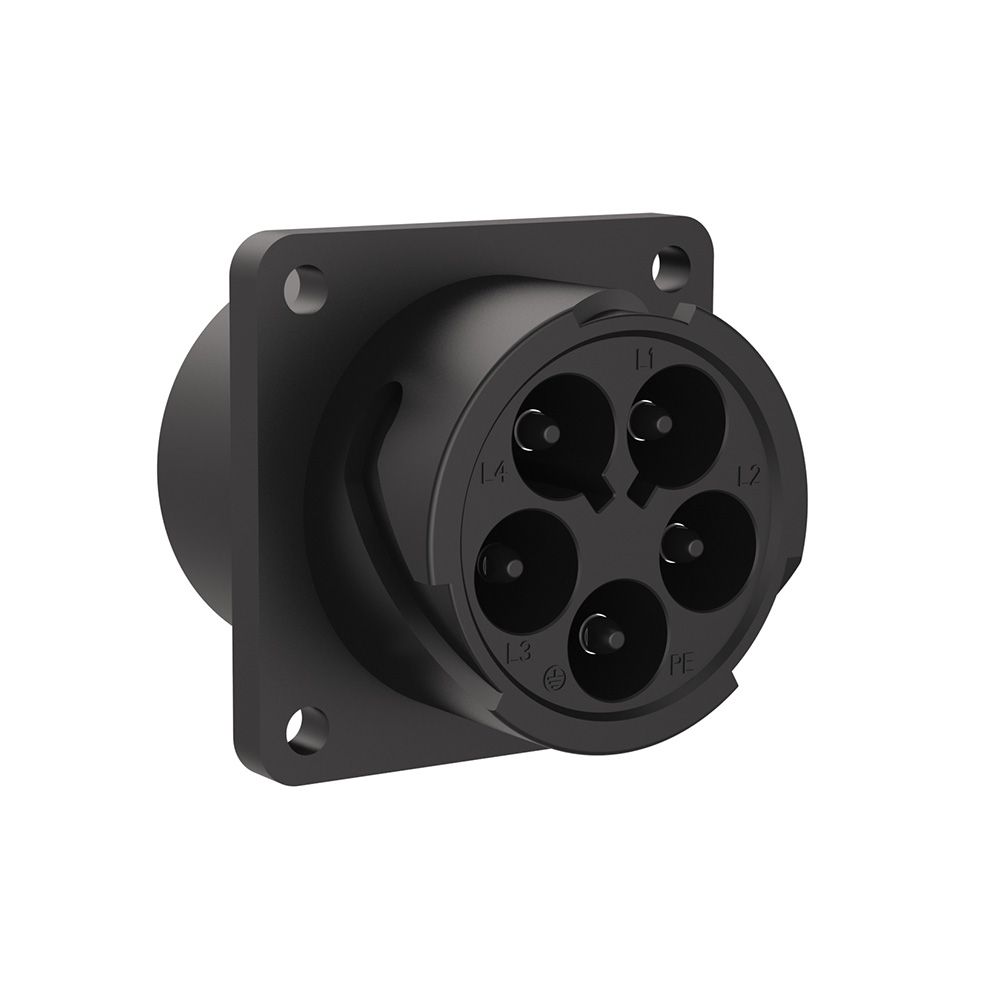

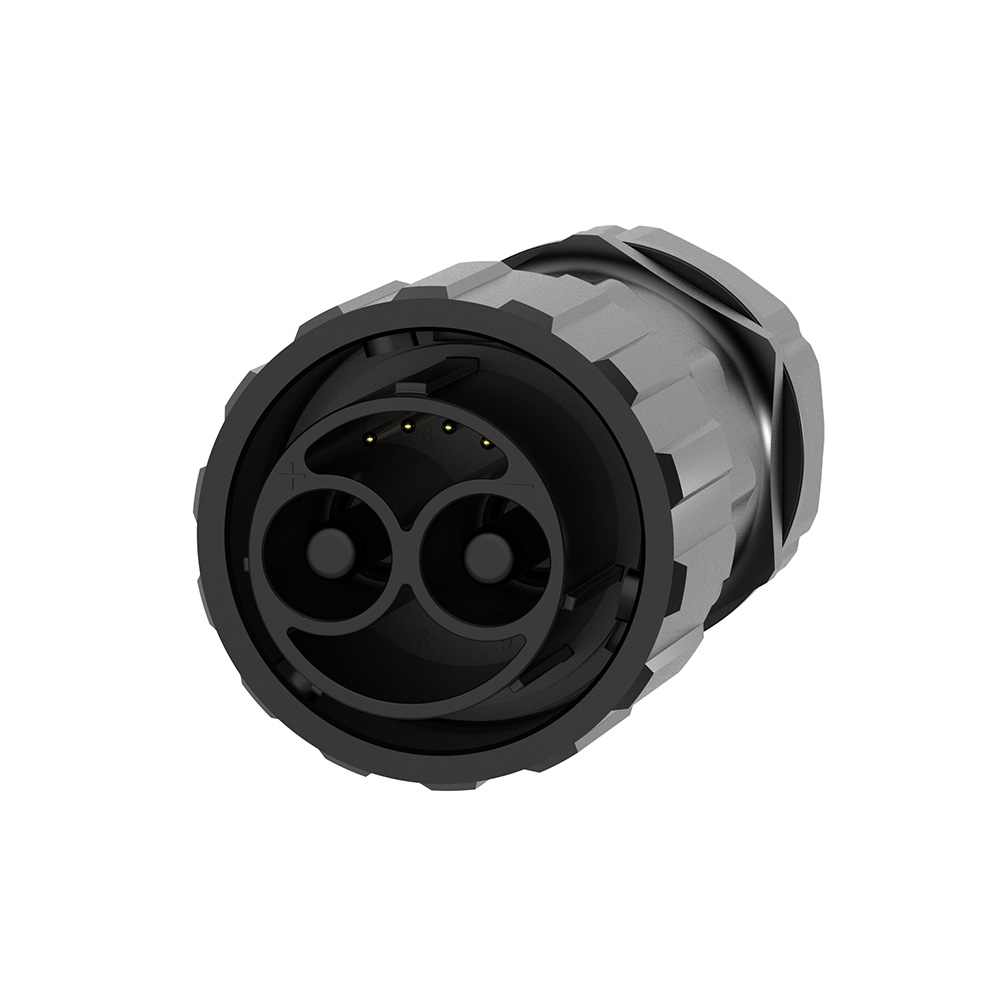

⊕ Different pins arrangement: 2Pin,3Pin,4Pin and 5Pin.
⊕ Electric Shock protection design in Contact Pins.
⊕ IP67 Waterproof rating(when mated).

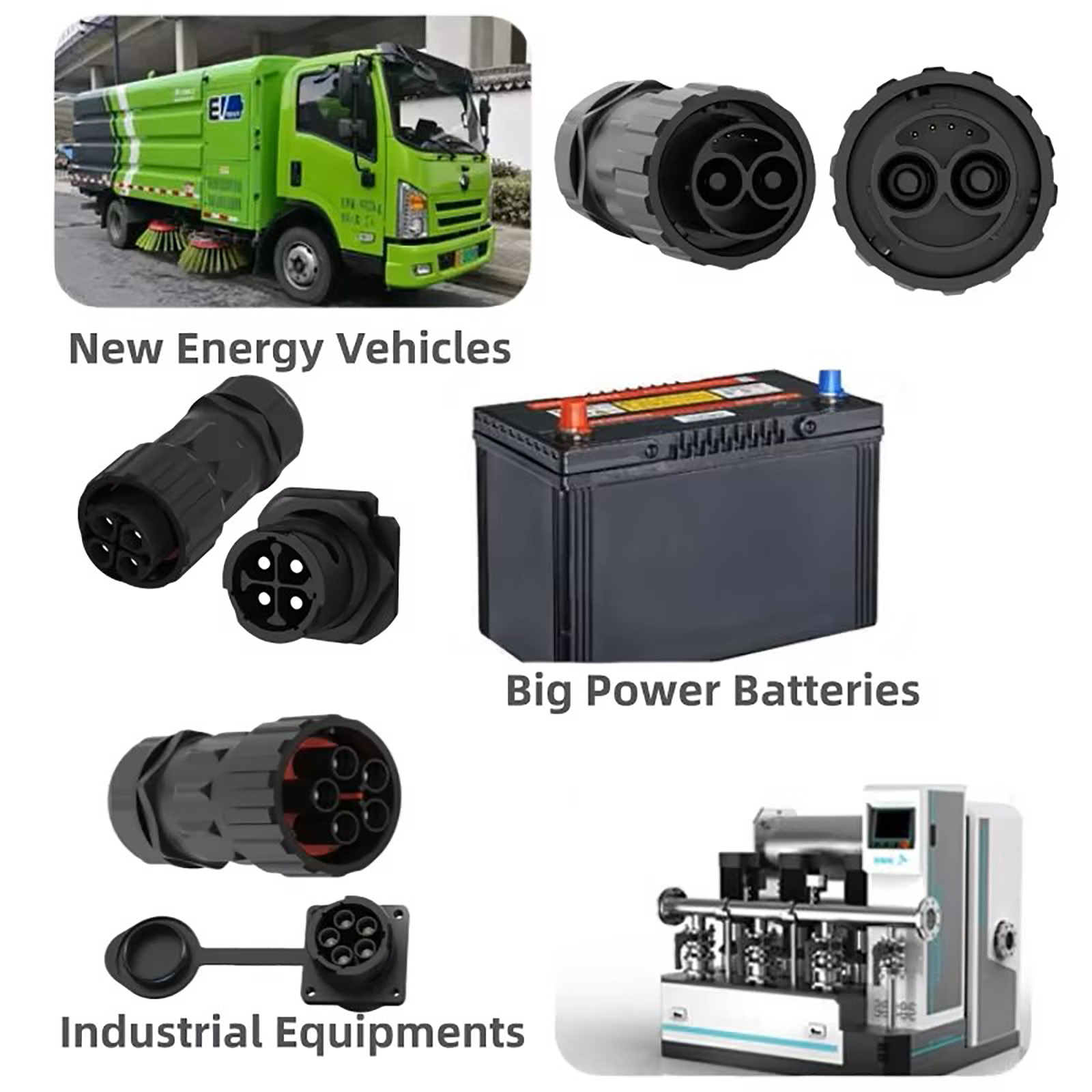

⊕ Massive Used in Photovoltaic Inverter power equipments.
Connecting Mode |
Crimp & Screw Locking |
|||||
Pins No. |
2 |
3 |
4 |
5 |

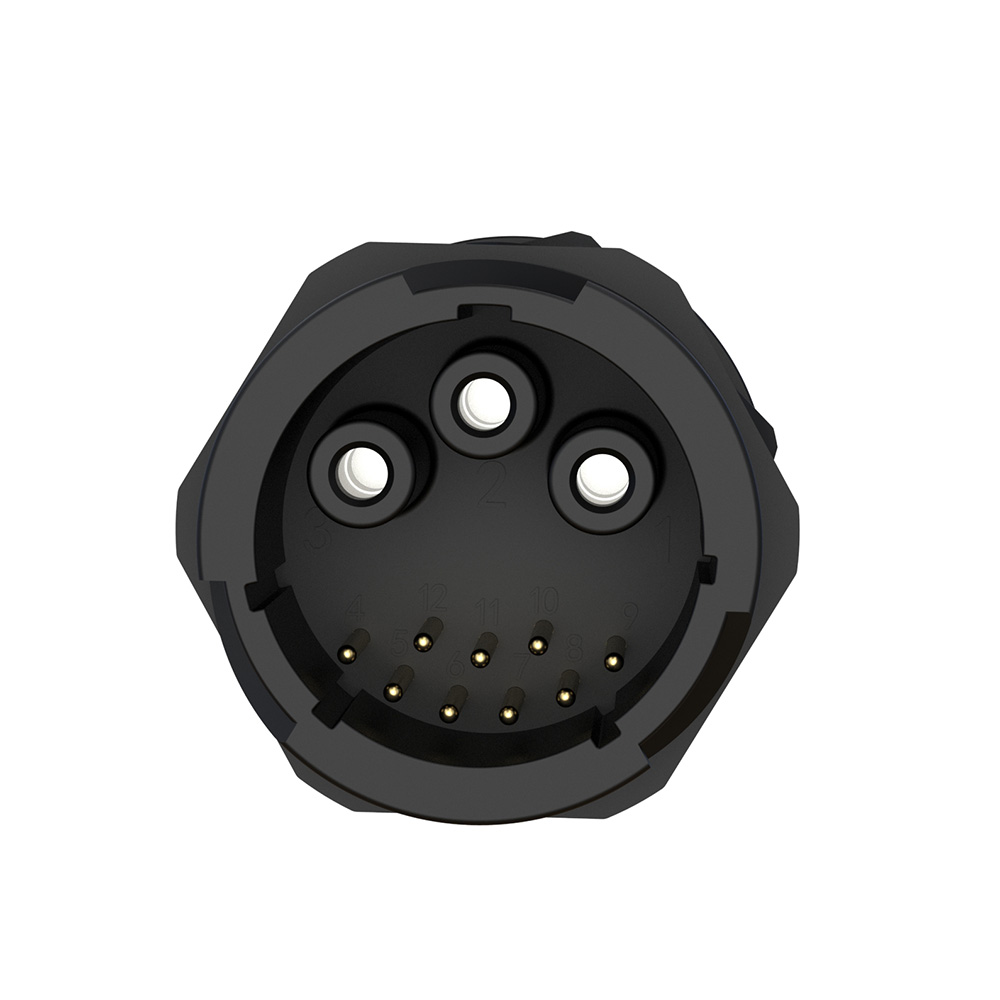

2+4 |
3+9 |
Rated Current |
150A |
120A |
50A |
120A +10A |
50A +10A |
|
Contact Diameter X No. |
ø 8.0 |
ø 6.0 |
ø 3.6 |
ø 6.0+ø 1.5 |
ø 3.6 +ø 1.5 |
|
Withstanding Voltage |
5000V |
3000V |
2000V |
3000V |
||
Protective Level |
IP67 |
|||||
Cabel Gague |
4mm2-35.0mm2 |
4.0mm2-25.0mm2 |
1.0mm2-6.0mm2 |
2.0mm2-16.0mm2 |
1.0mm2-6.0mm2 |
|

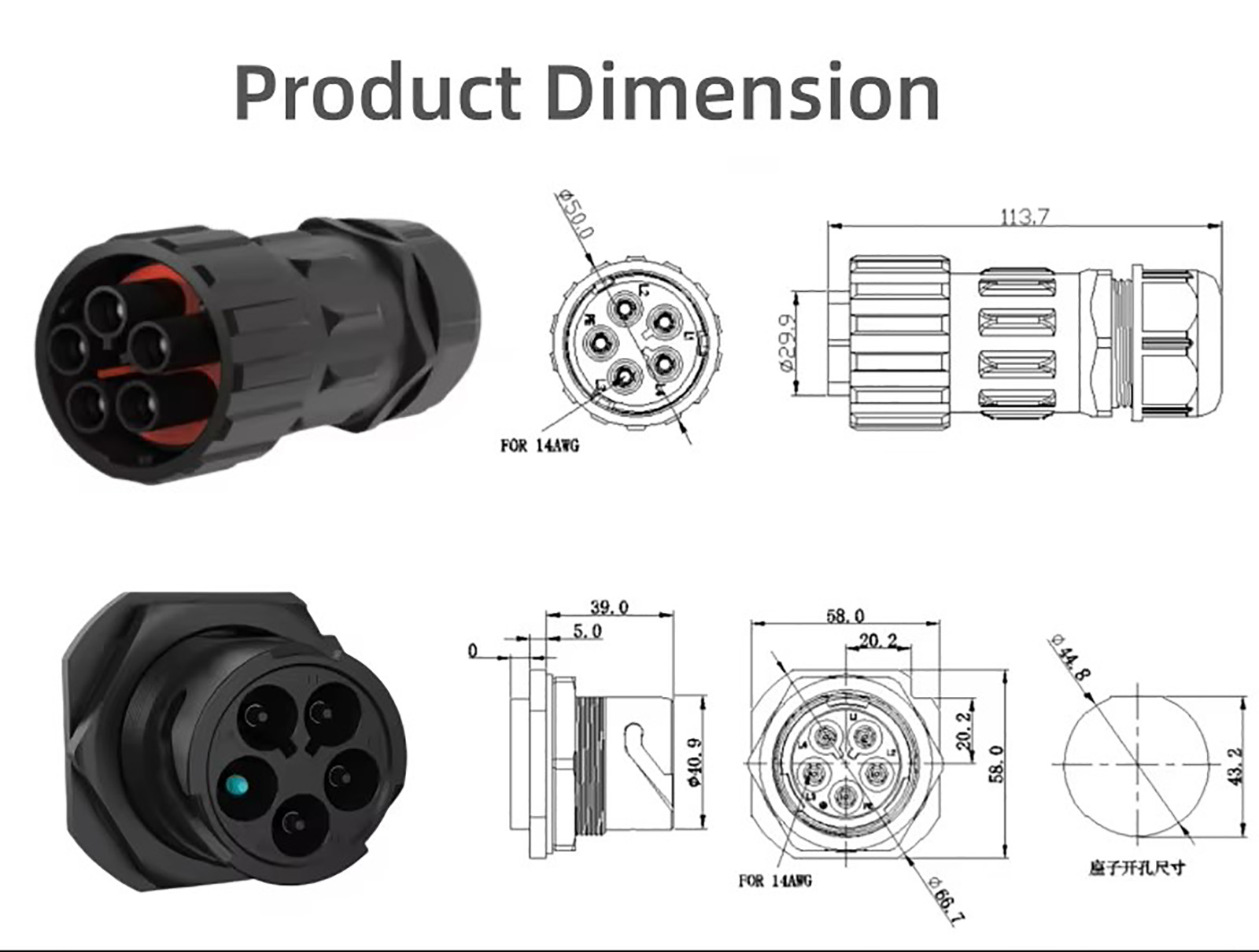

Diamter Range |
MAX ø 25.0mm |
|||||
Operating Tem. |
-40℃~105℃ |
|||||
Copper Needles Material |
copper alloy |
|||||
Flame Resistant |
94-V0 |
|||||
-
We assist you in choosing the most suitable product for your application.
-
Solid technical support from our sales team and R&D department combined.
-
Production photos and videos supplied for every order you place.
-
Fast shipping services backed by our factory-direct supply chain.
-
Quality after-sales support including a 5-year warranty coverage.
-
OEM and ODM customization options are fully supported.
Our products have passed rigorous testing and earned certifications from UL, CE, CQC, TUV, RoHS, CCC, plus IP67/IP68 ratings.
Contact us today and we’ll send you high-definition images of all our certification credentials!
With premium quality as our cornerstone, we are also capable of applying for any extra certifications you need.
