Jnicon IP67 MJ32 Metal Fast Second Lock Waterproof Connector

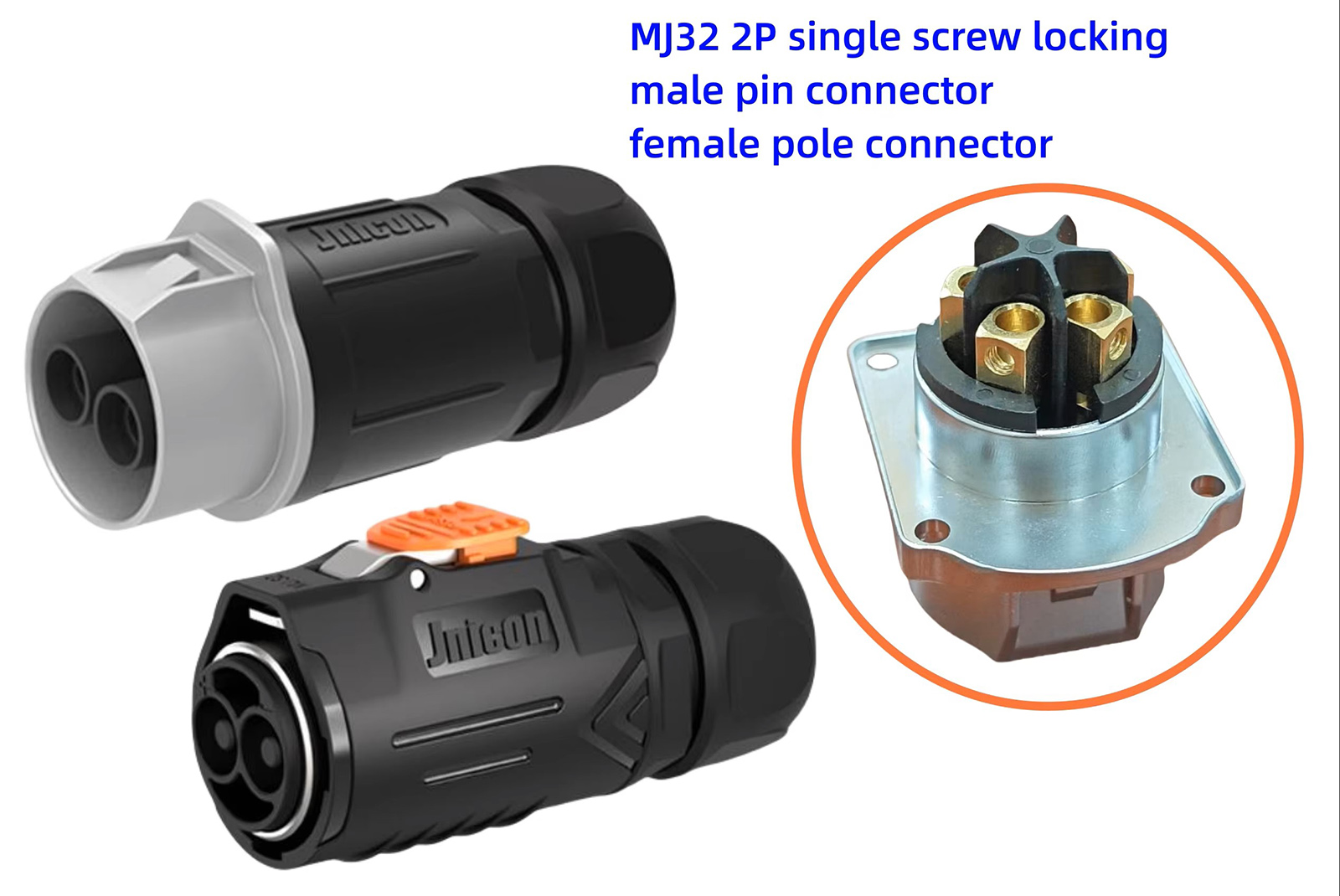

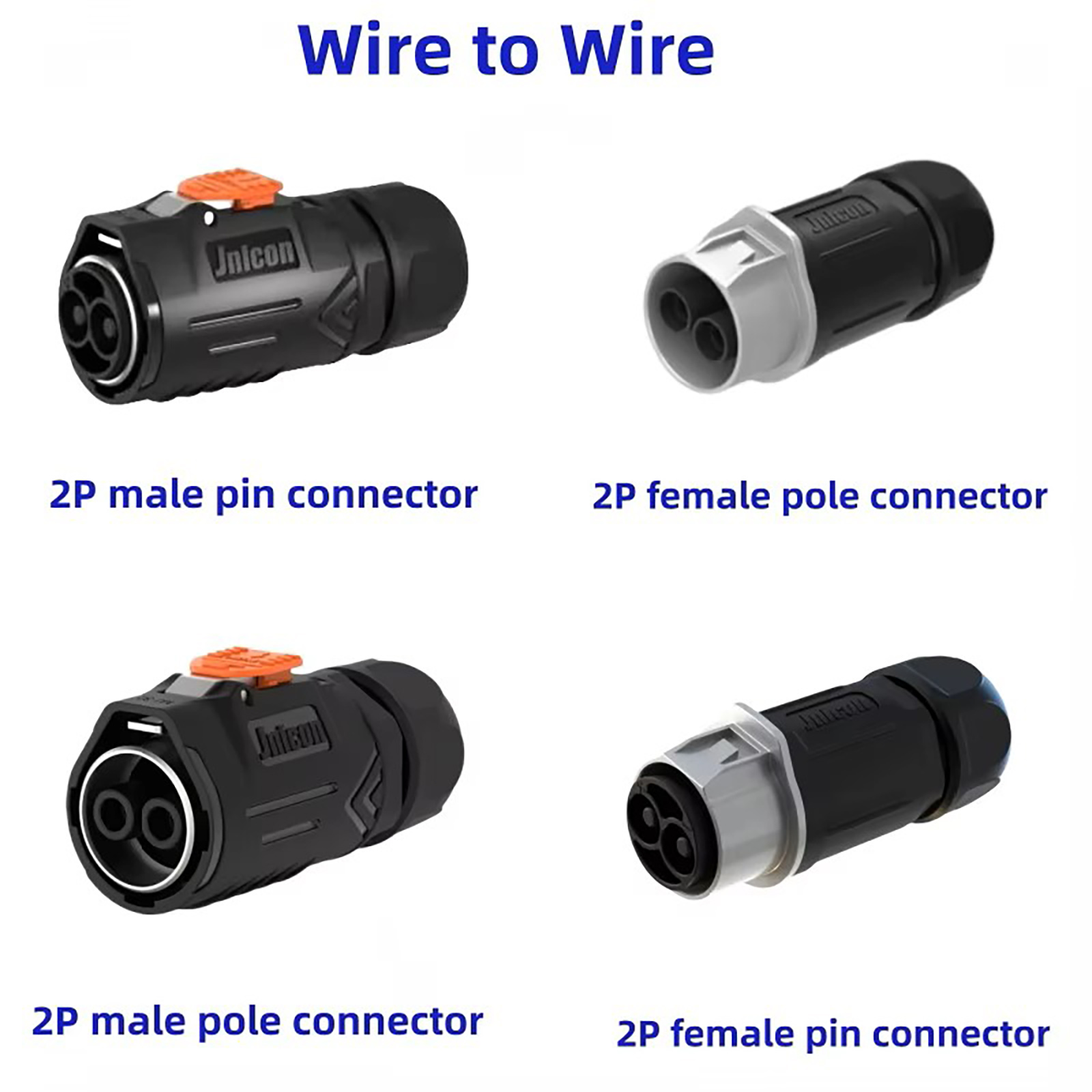

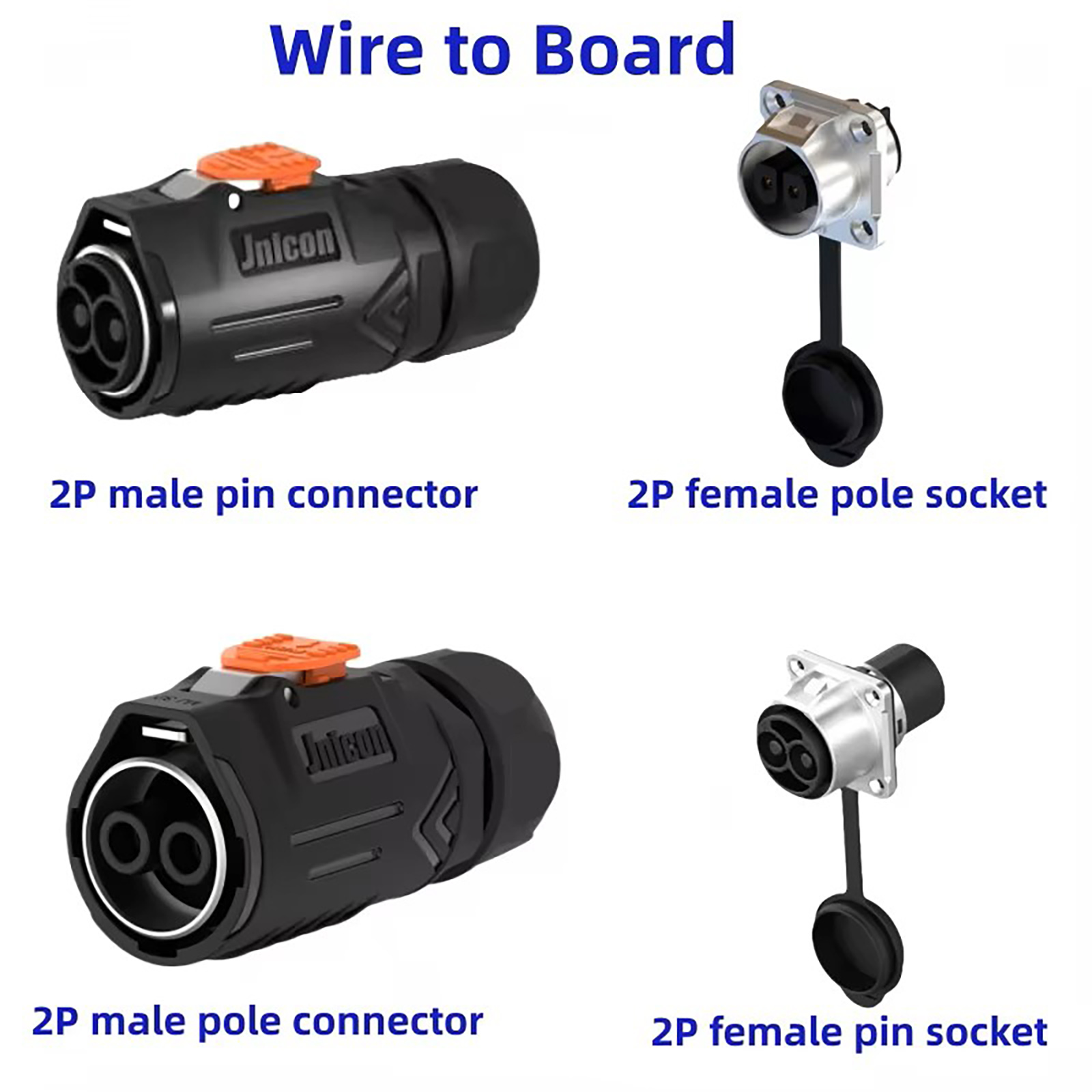

MJ32 Series connectors mainly feature:This series is available for cable to cable (in-line) and cable to panel connection.
Each side can choose from male or female contact.

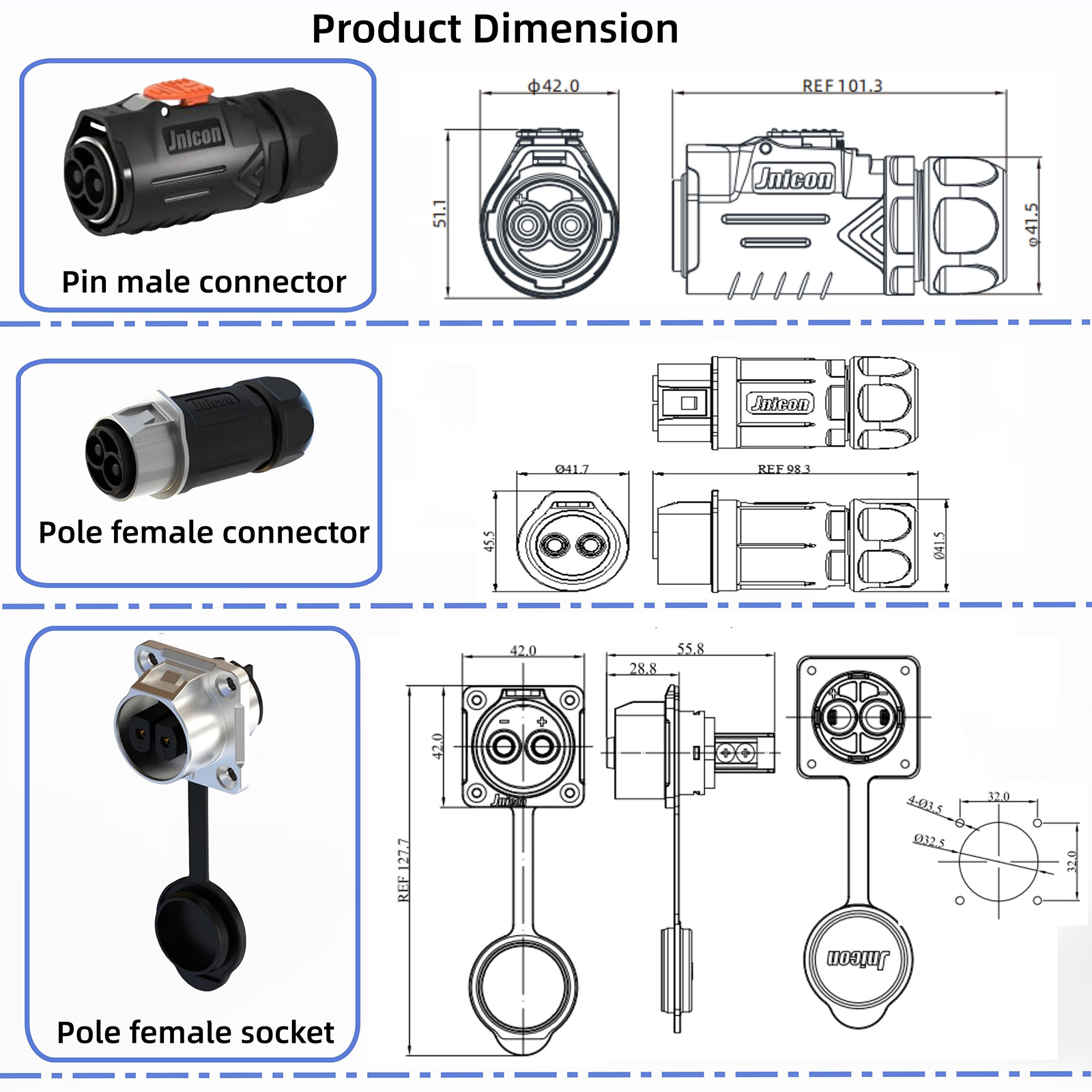

1) Panel-hole cutout size: 32mm

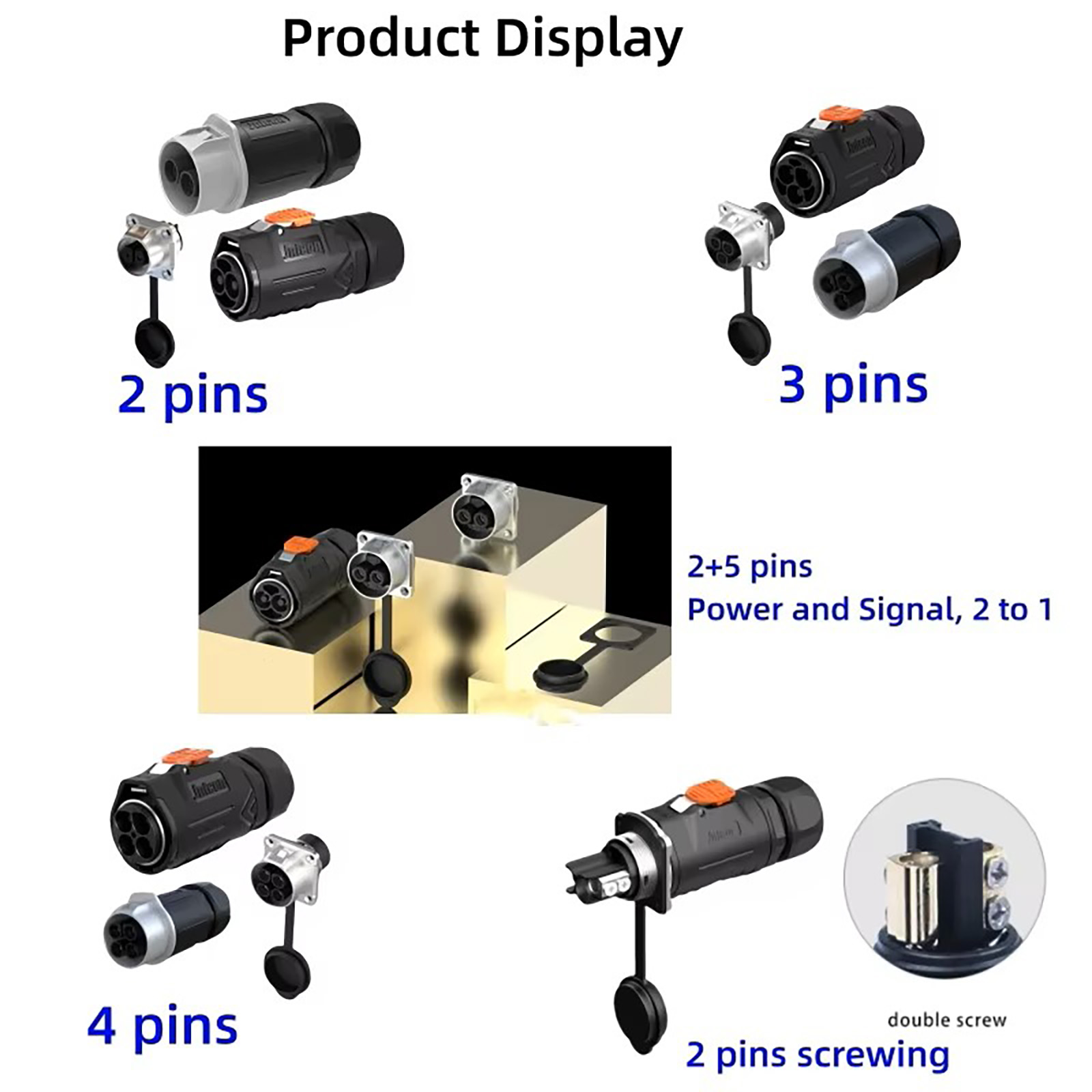

2) Number of contacts: 2-5 with gold plated contacts
3) Rated current: 120A-50A
4) IP rating: IP67 after mated
5) Cable outer diameter: Max 25mm²
Connecting Mode |

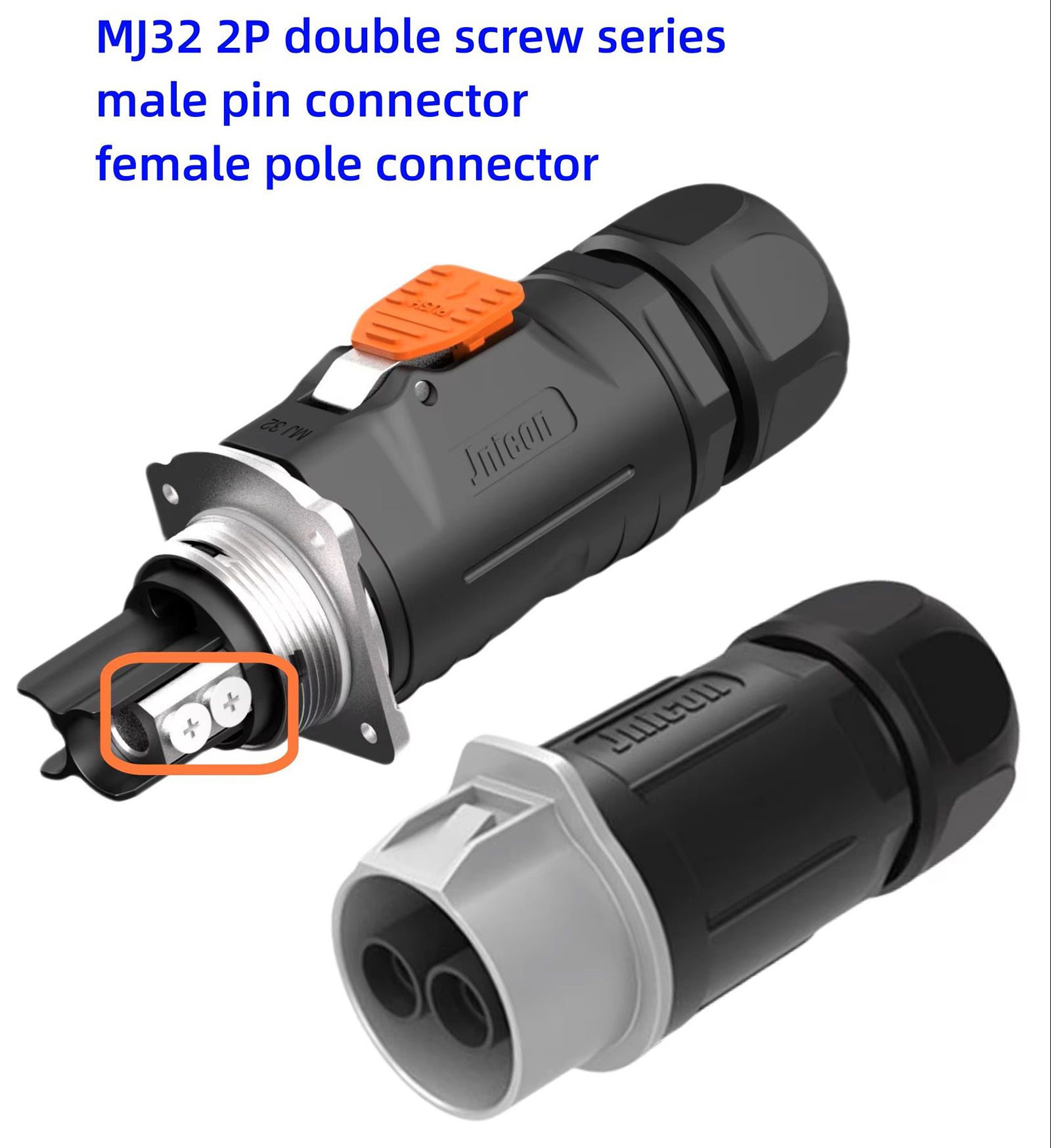

Crimp & Screw Locking |
||||
Pins No. |
2 |
3 |
4 |
2+4 |
2+5 |
Rated Current |
120A |
80A |
120A +10A |
||
Contact Diameter X No. |
ø 6.0 |
ø 4.0 |
ø 6.0+ø 1.5 |
||
Withstanding Voltage |
3000V |
2000V |
3000V |
||
Protective Level |
IP67 |
||||
Cabel Gague |
4mm2-25.0mm2 |
4.0mm2-16.0mm2 |
4mm2-25.0mm2 |
||
Diamter Range |
MAX ø 25.0mm |
||||
Operating Tem. |
-40℃~105℃ |
||||
Copper Needles Material |
copper alloy |
||||
Flame Resistant |
94-V0 |
||||

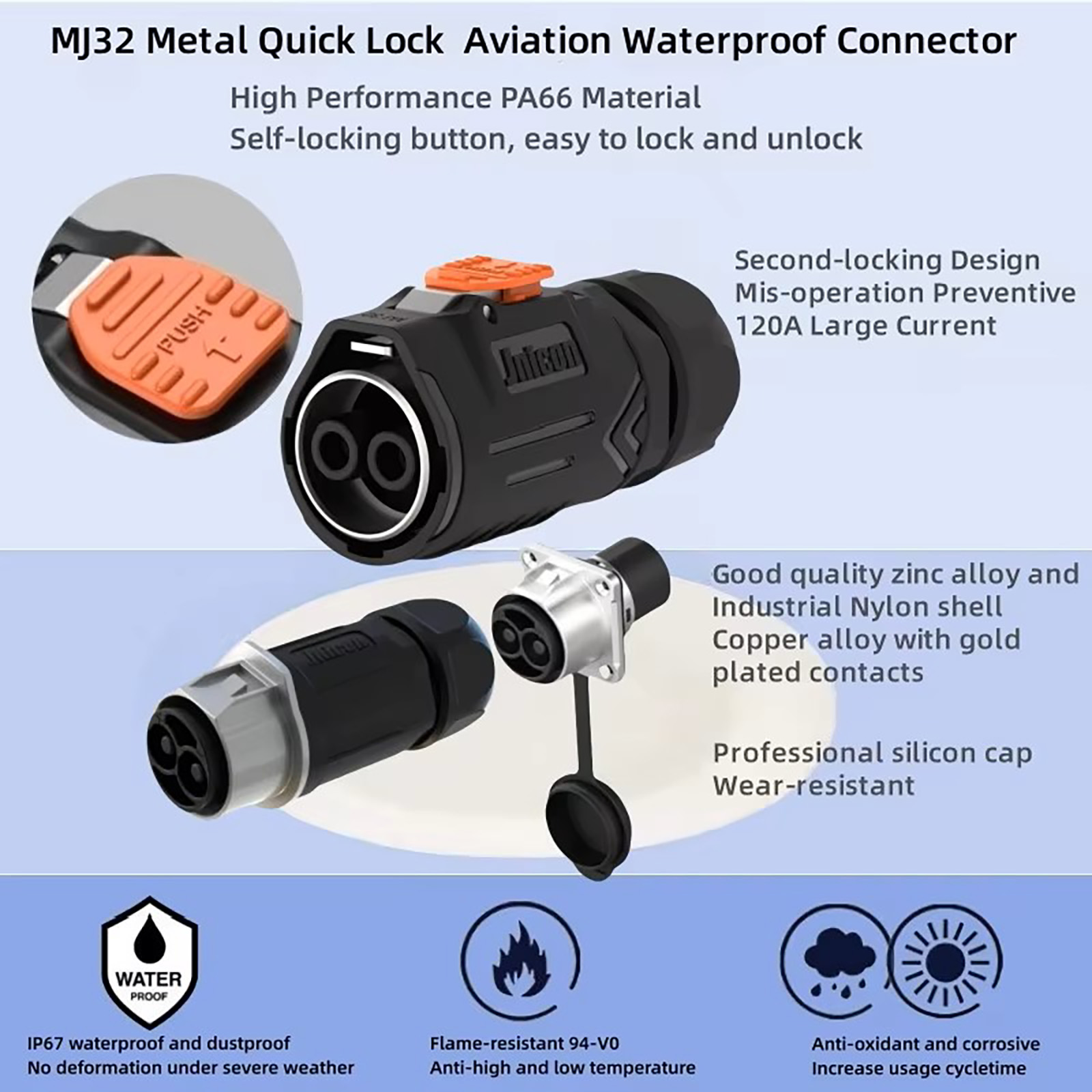

This IP67 waterproof connector is designed for high-end products. The Zin alloy metal made shell made it widely used in many high-end areas,
such as medical devices, high-end equipments, testing or measuring equipments, communications field,marine equipments etc. It can be used for both data and power.
-
Expert product selection support tailored to your business needs.
-
Strong technical backing from our sales staff and R&D specialists.
-
Production visuals provided for all orders to ensure transparency.
-
Fast delivery efficiency supported by our factory-direct advantages.
-
Dependable after-sales service including a 5-year warranty.
-
OEM and ODM customization services are fully accommodated.
Our products are fully certified, including UL, CE, CQC, TUV, RoHS, CCC, and IP67/IP68 protection ratings.
Get in touch with us to request HD copies of these certification documents!
With excellent product quality guaranteed, we can also support you in obtaining any other certifications you may require.
