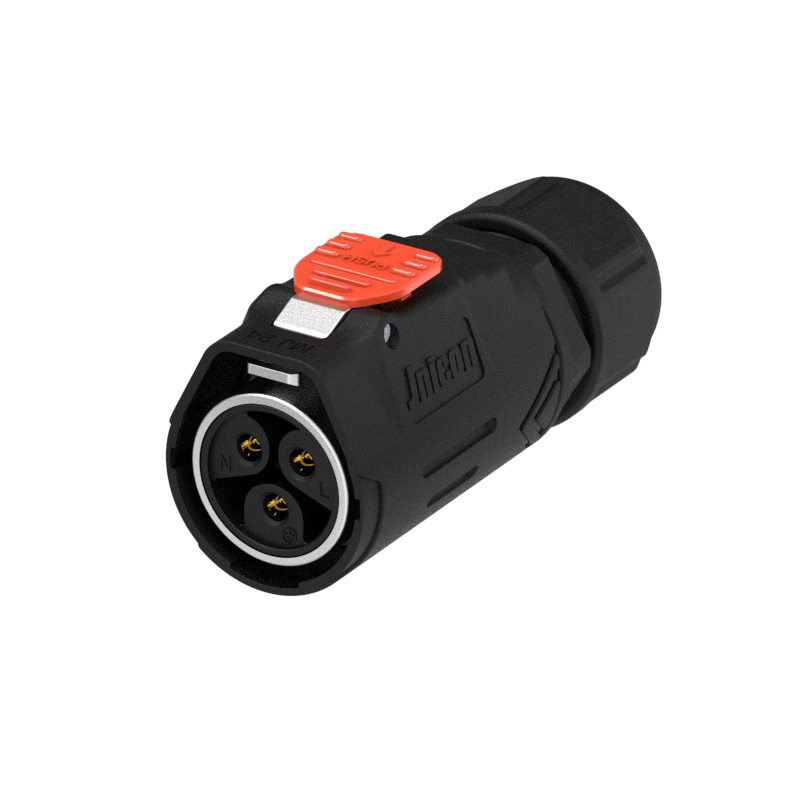

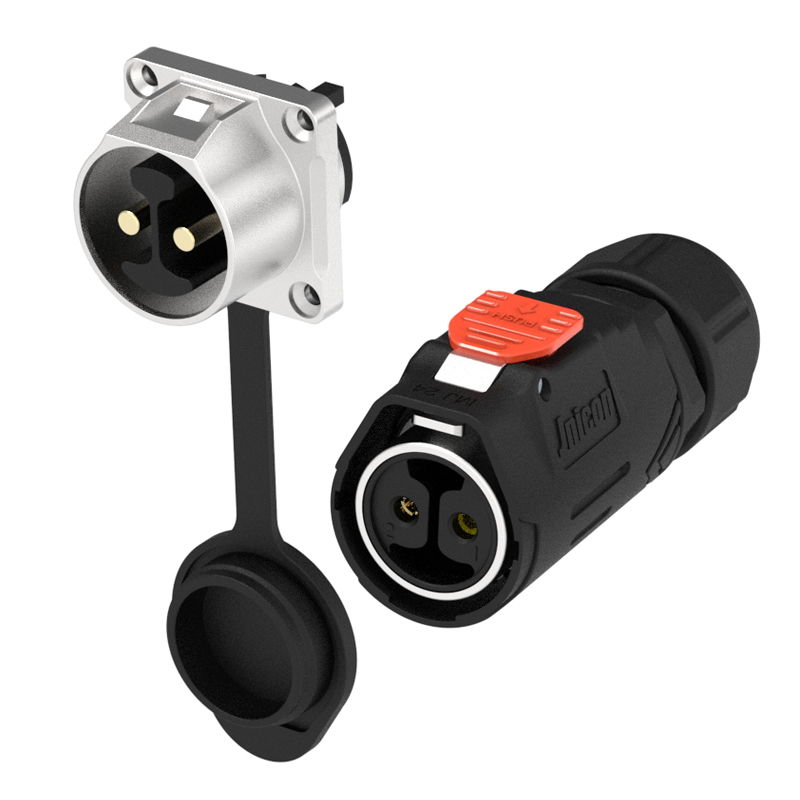

Jnicon IP67 MJ24 New Energy Electrical Metal Waterproof Connector
MJ24 Series connectors mainly feature:

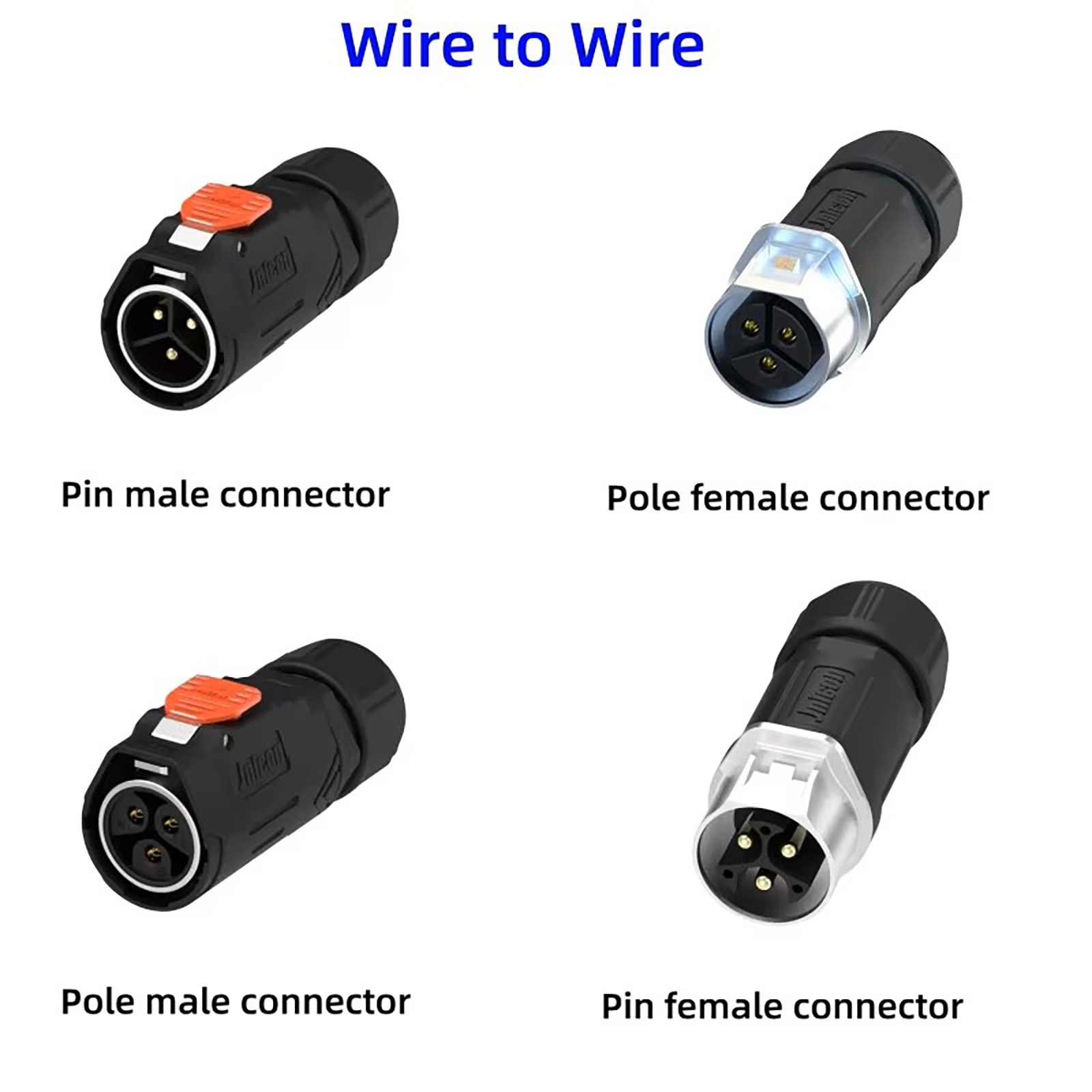

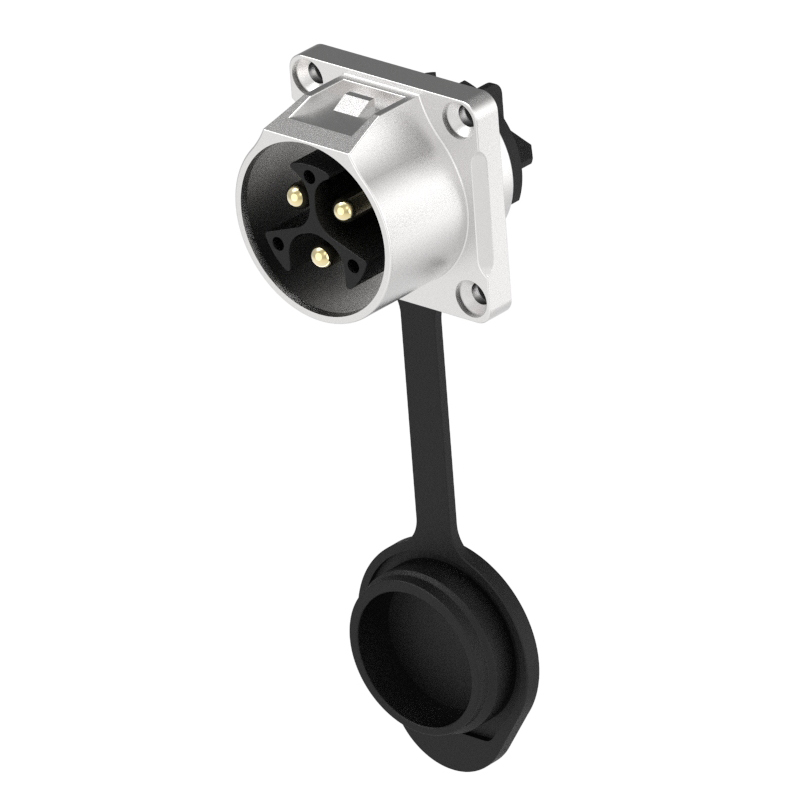

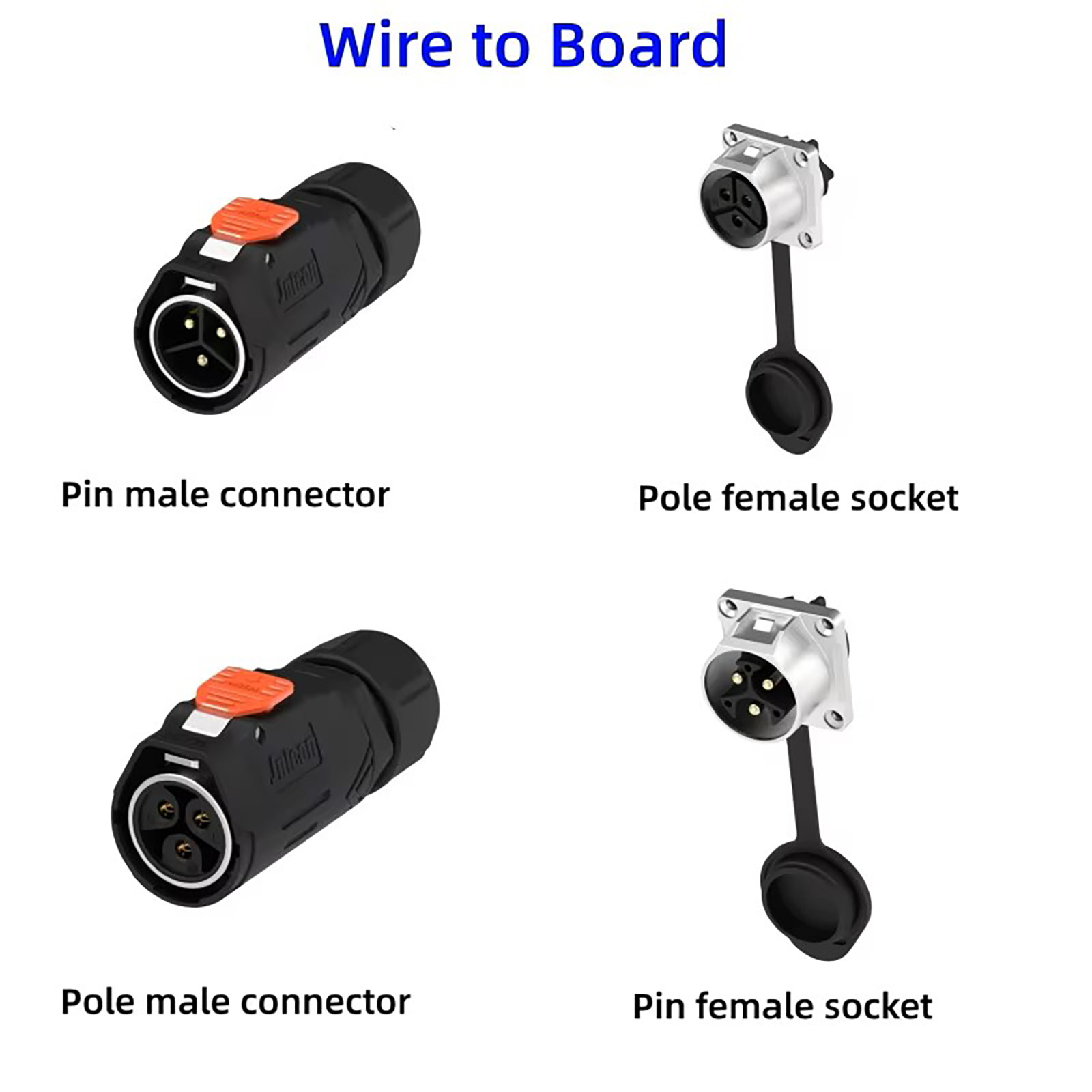

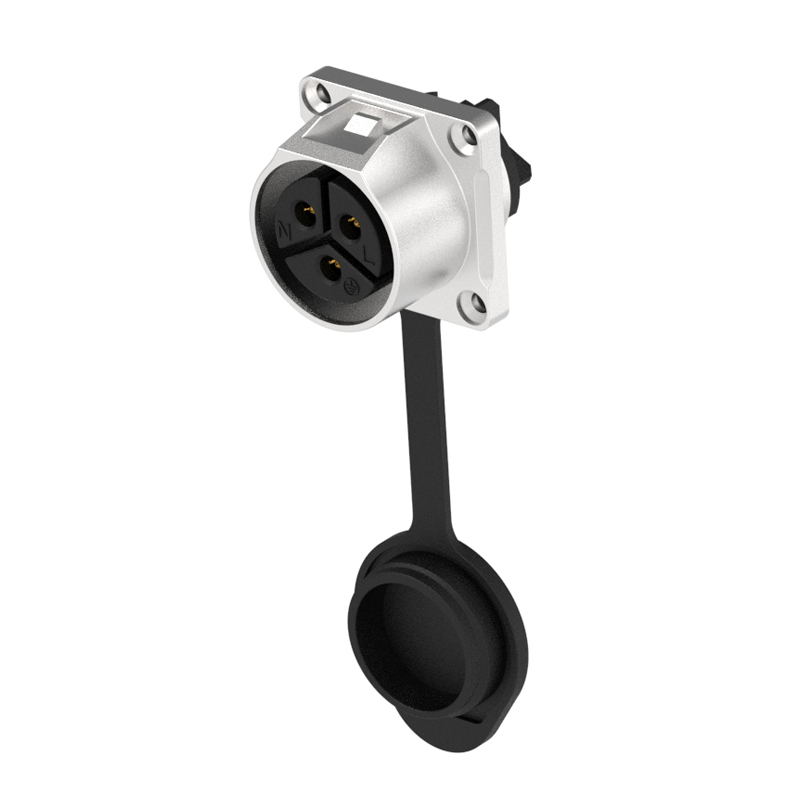

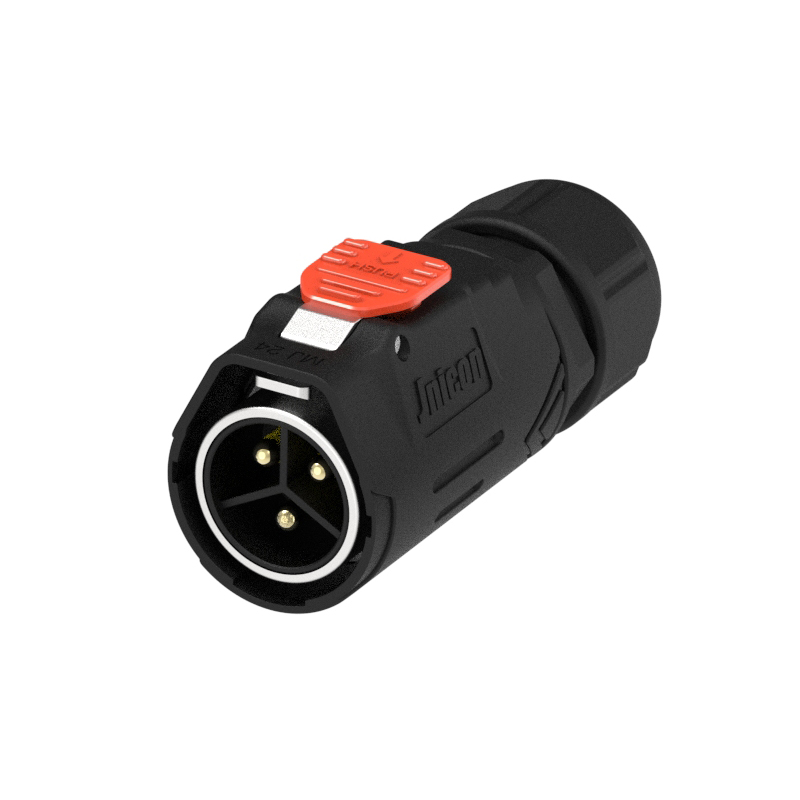

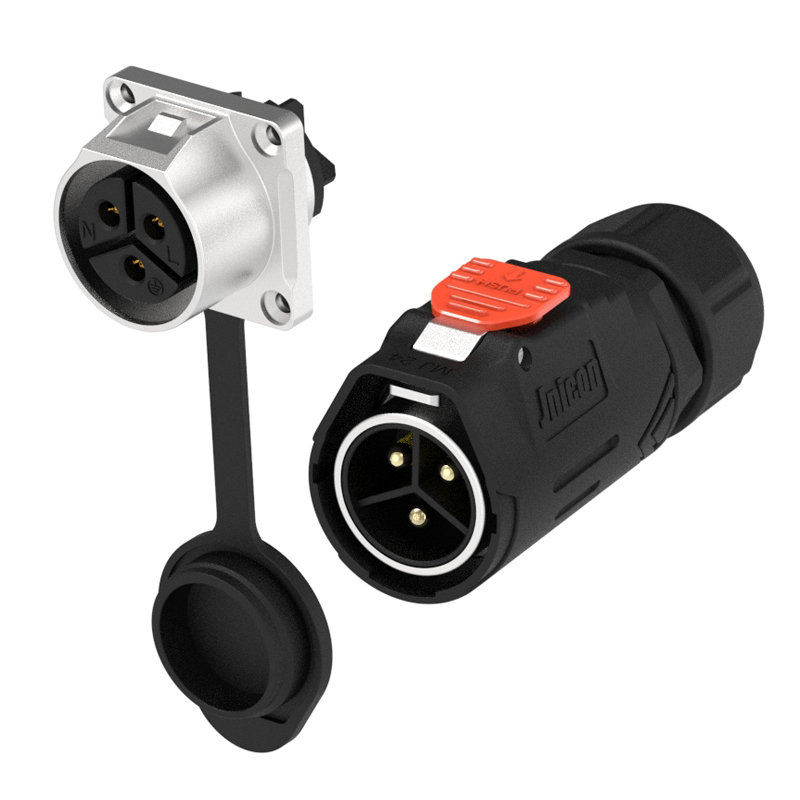

This series is available for cable to cable (in-line) and cable to panel connection. Each side can choose from male or female contact.

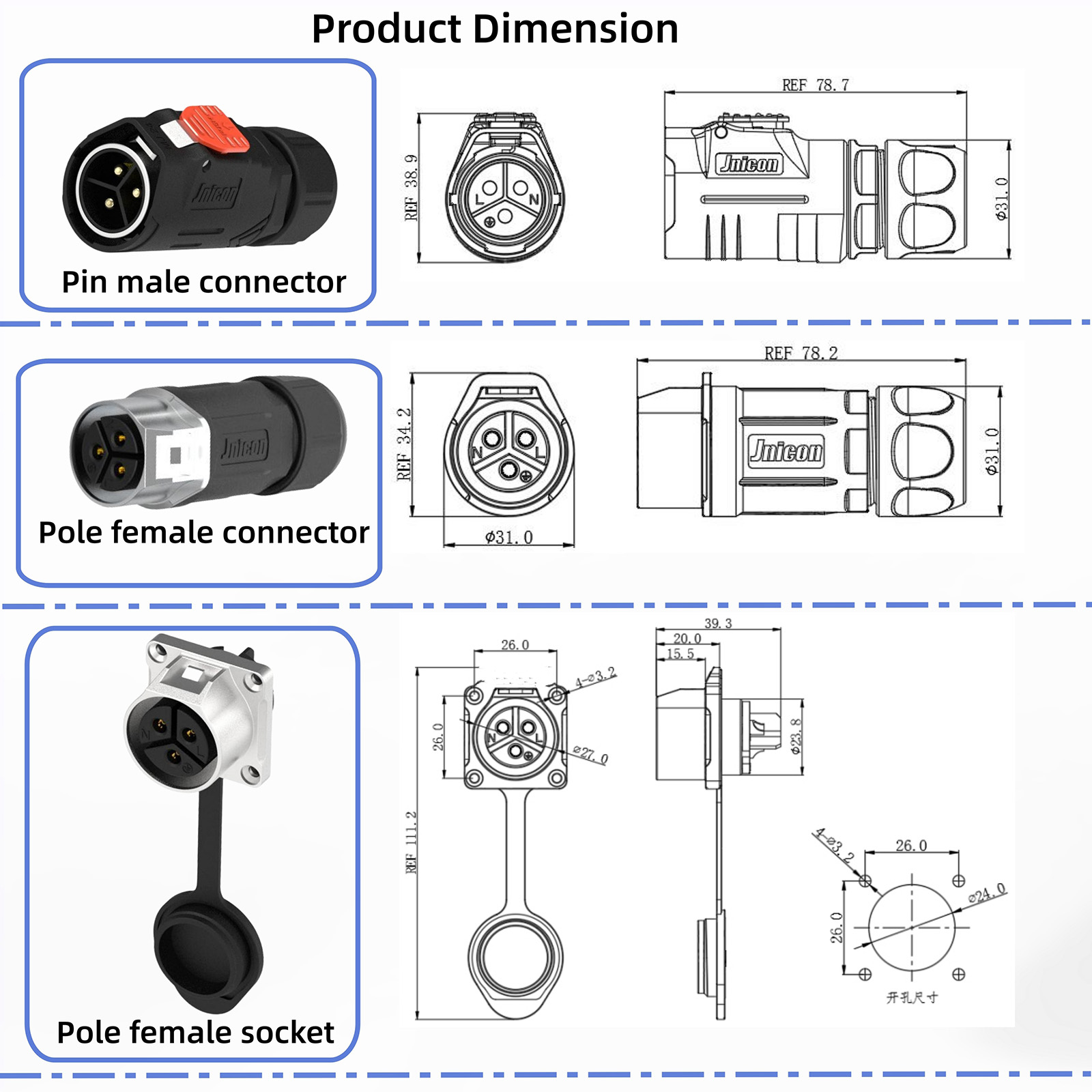

⊕ Panel-hole cutout size: 24mm

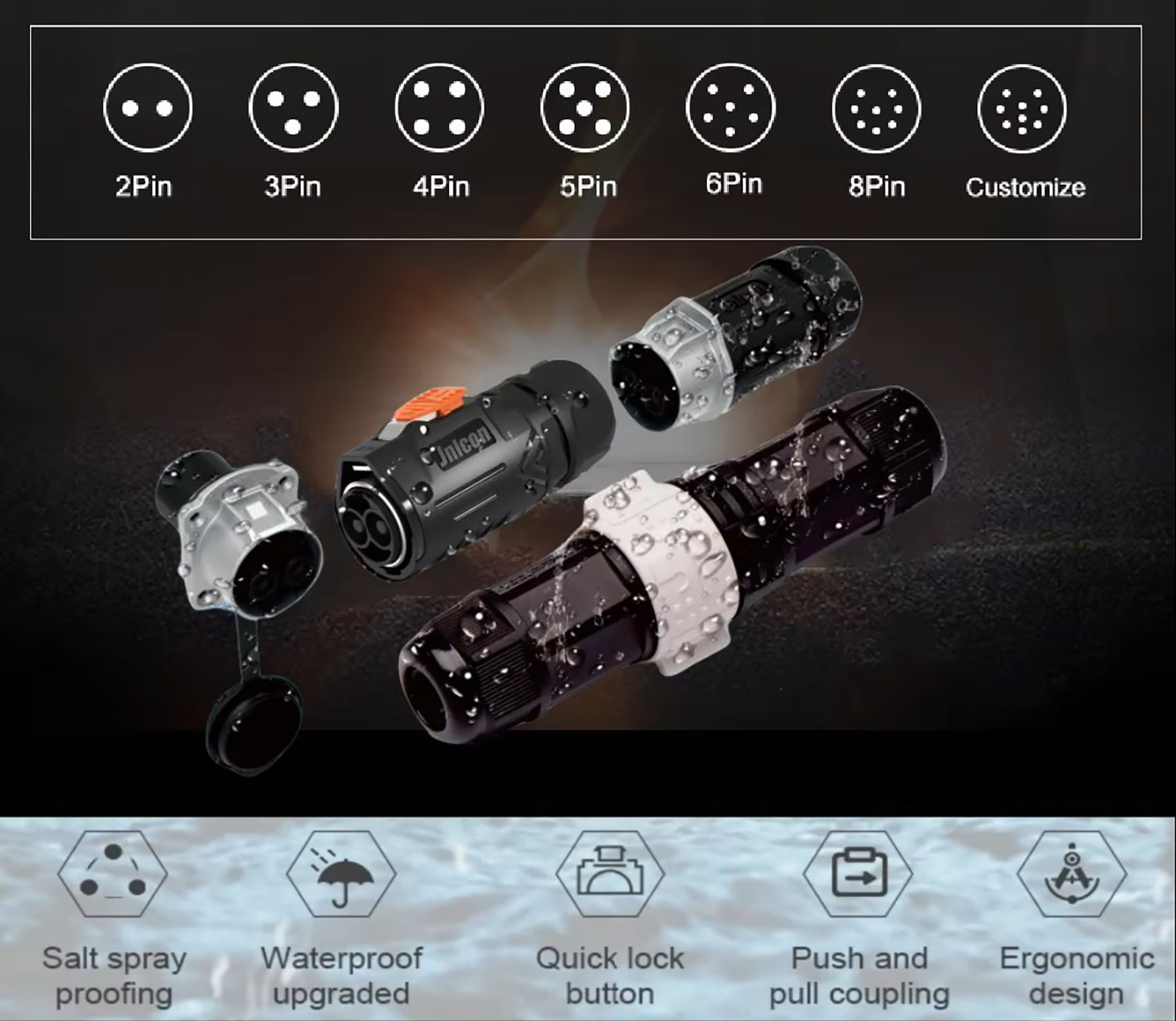

⊕ Number of contacts: 2-5 with gold plated contacts
⊕ Rated current: 50A-30A
⊕ IP rating: IP67 after mated
⊕ Cable outer diameter: Max 16mm²
⊕ Certification: CE, ROHS UL CQC TUV approval
Connecting Mode |

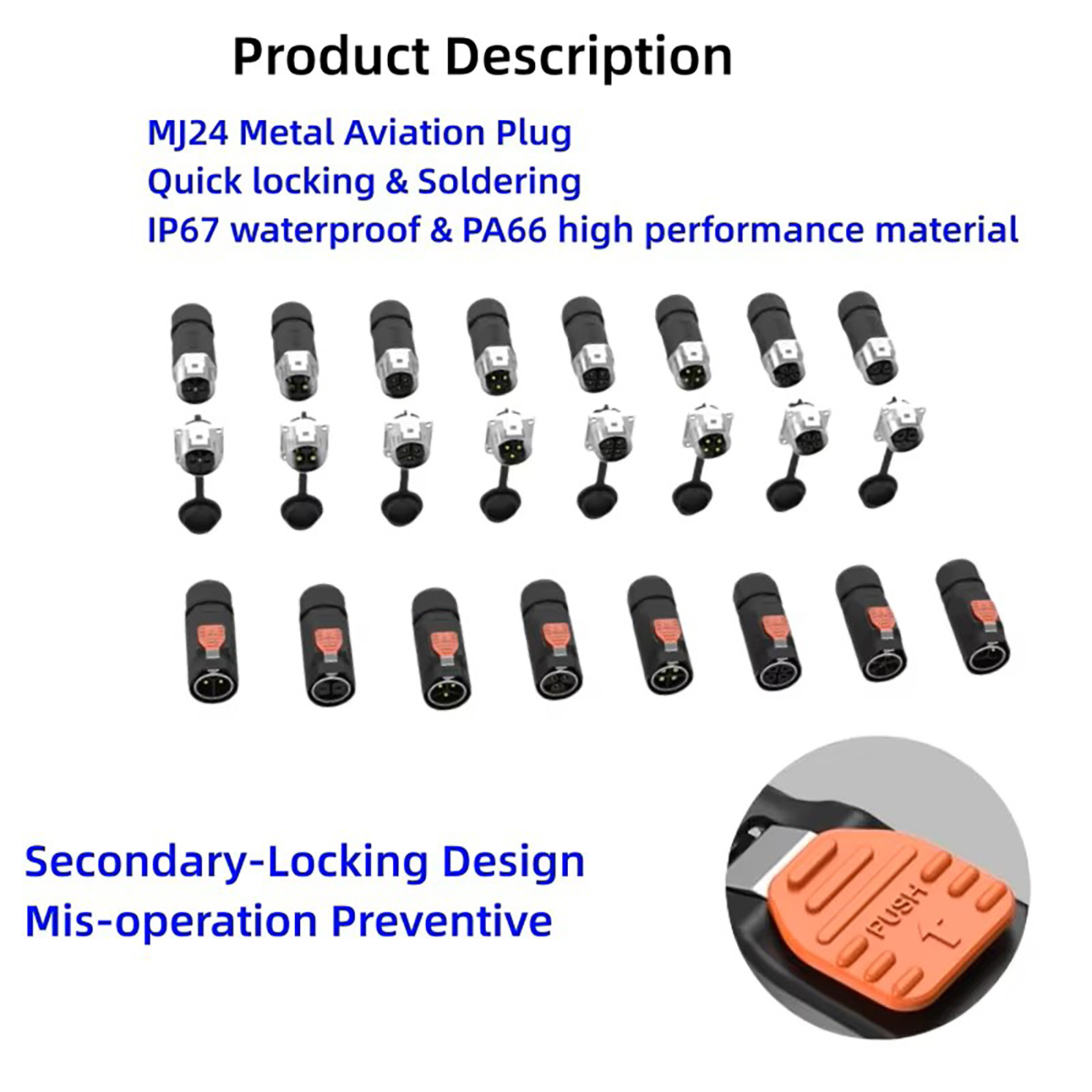

Push Locking |
||||

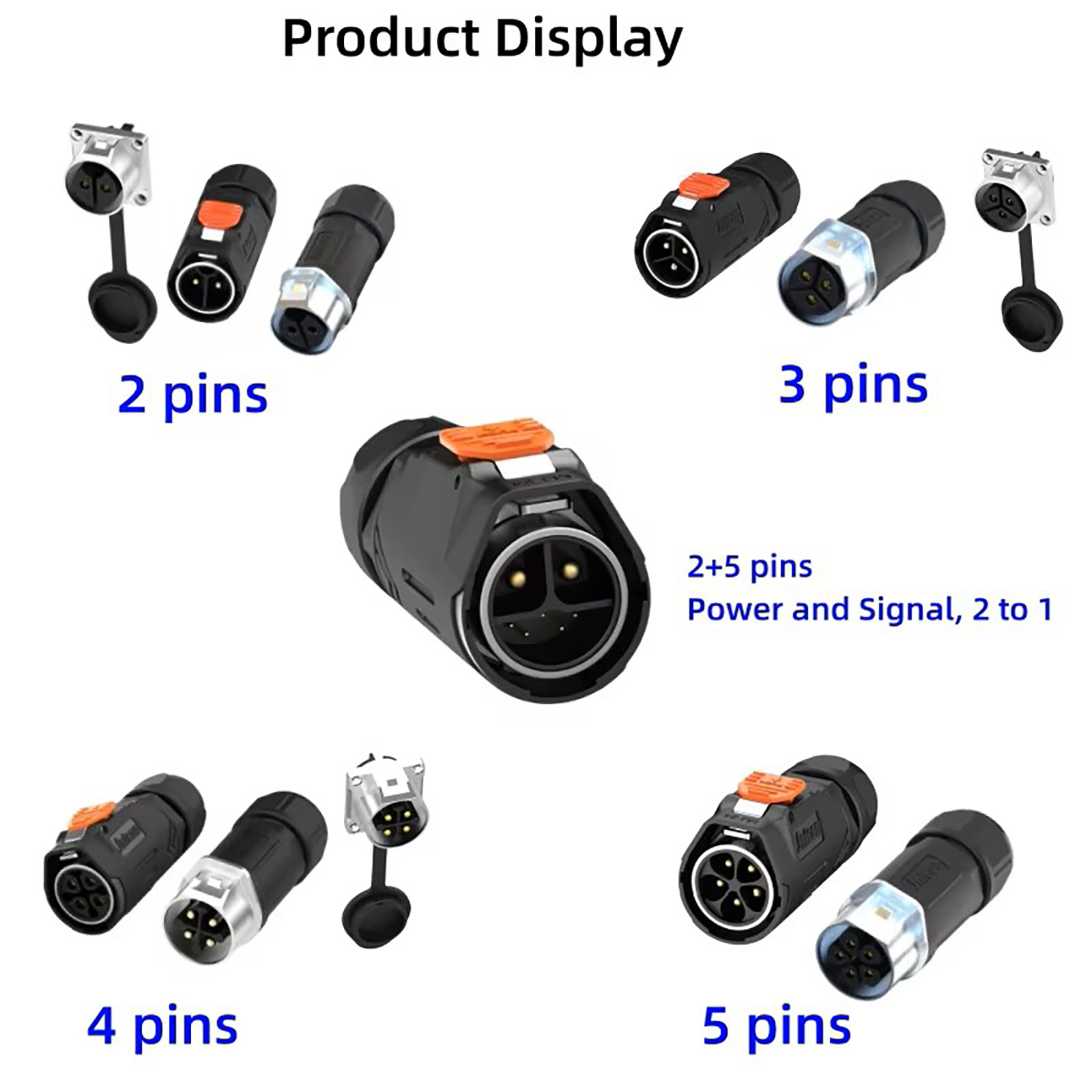

Pins No. |
2 |
3 |
4 |
5 |
2+5 |
Rated Current |
50A |
30A |
50A |
||
Contact Diameter X No. |
ø 3.6 |
ø 2.7 |
ø 3.6+ø 1.0 |
||
Withstanding Voltage |
2000V |
1500V |
2000V |
||
Protective Level |
IP67 |
||||
Cabel Gague |
1.5mm2-6.0mm2 |
1.0mm2-4.0mm2 |
1.5mm2-6.0mm2 |
||
Diamter Range |
MAX ø 16.0mm |
||||
Operating Tem. |
-40℃~105℃ |
||||
Copper Needles Material |
copper alloy |
||||
Flame Resistant |
UL94-V0 |
||||
This IP67 waterproof connector is designed for high-end products. The Zin alloy metal made shell made it widely used in many high-end areas,such as medical devices, high-end equipments, testing or measuring equipments, communications field,marine equipments etc. It can be used for both data and power.
-
