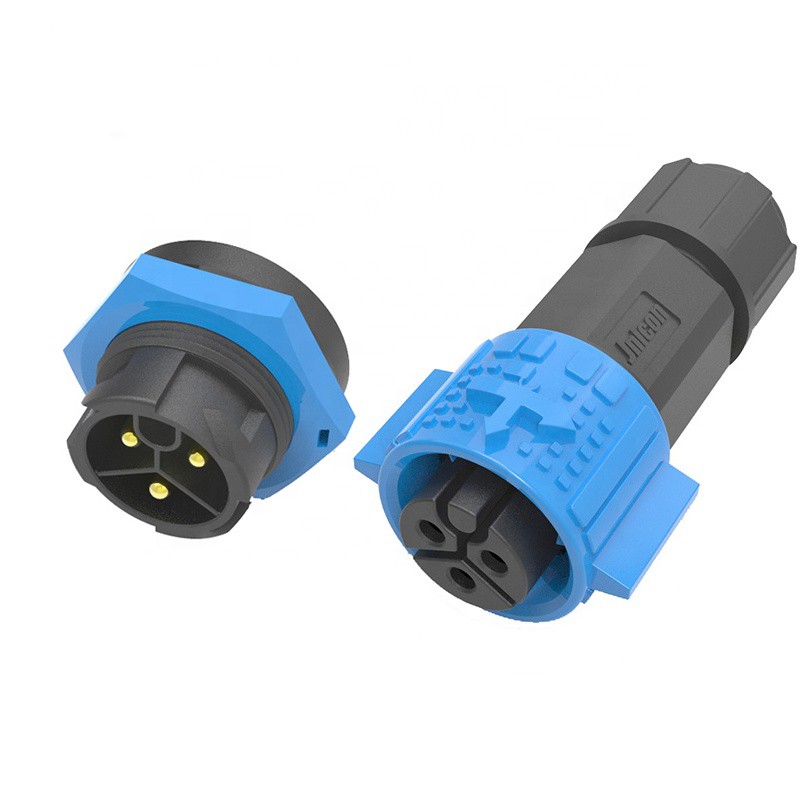

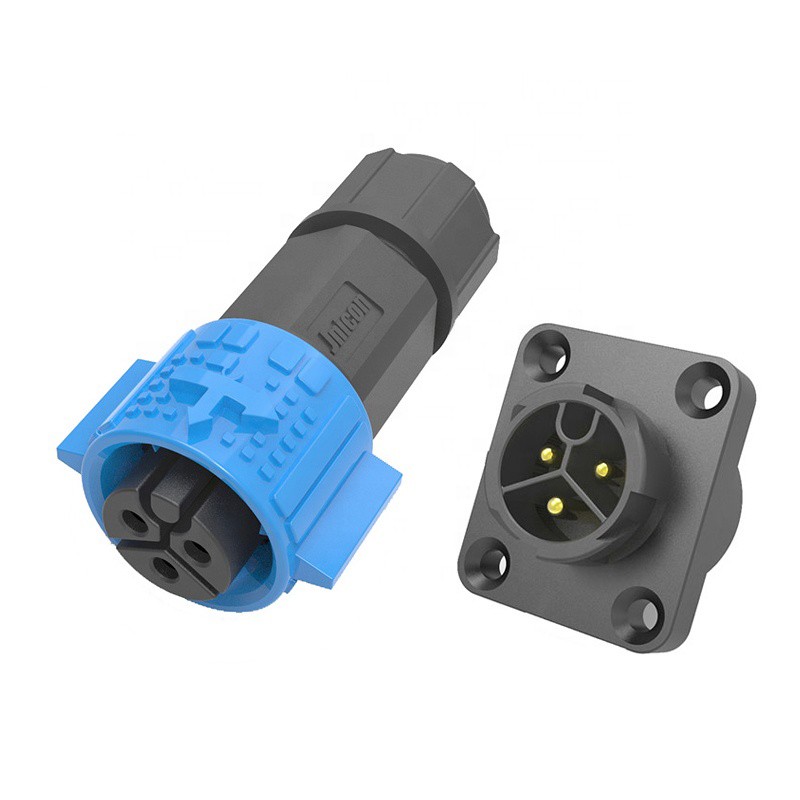

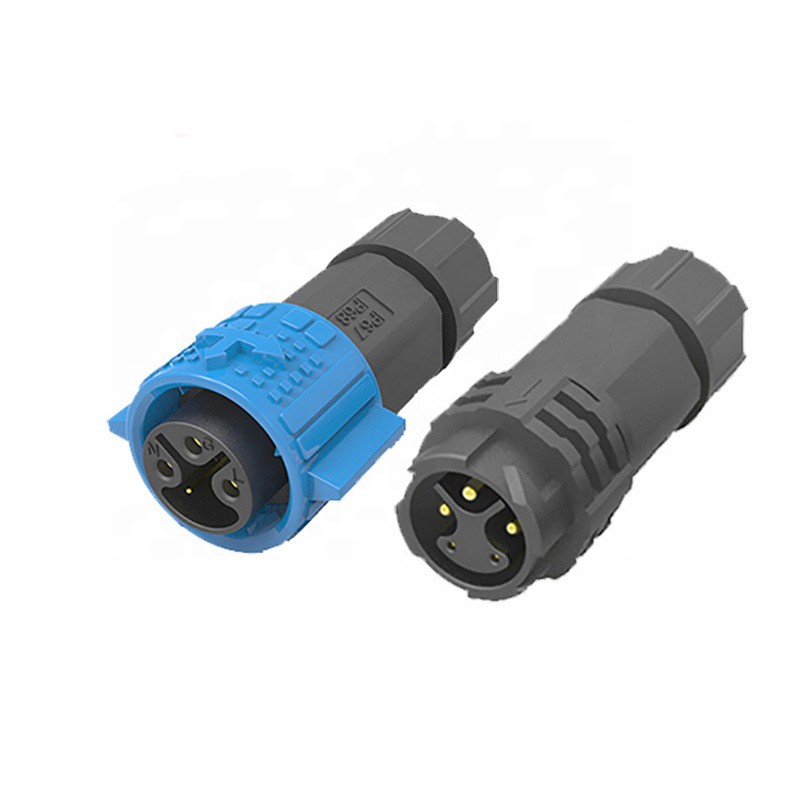

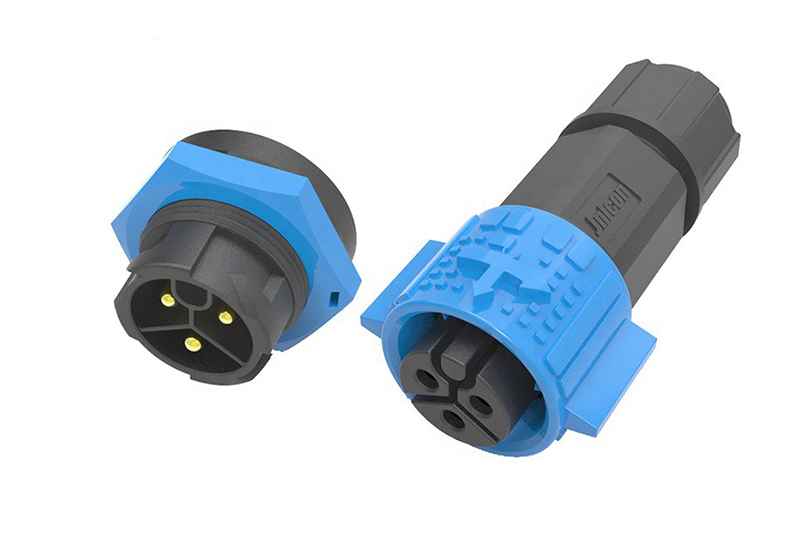

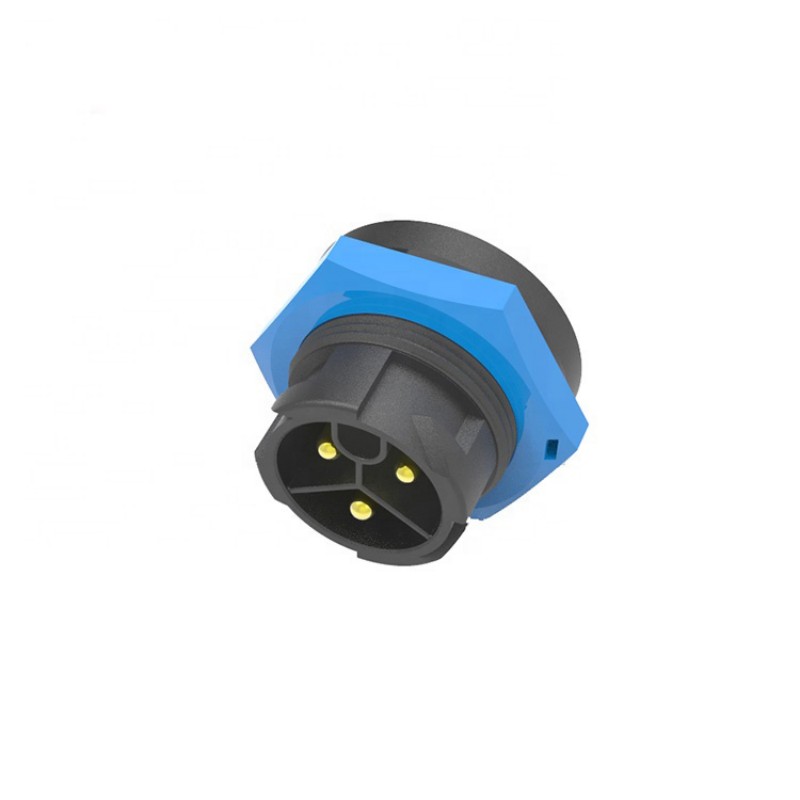

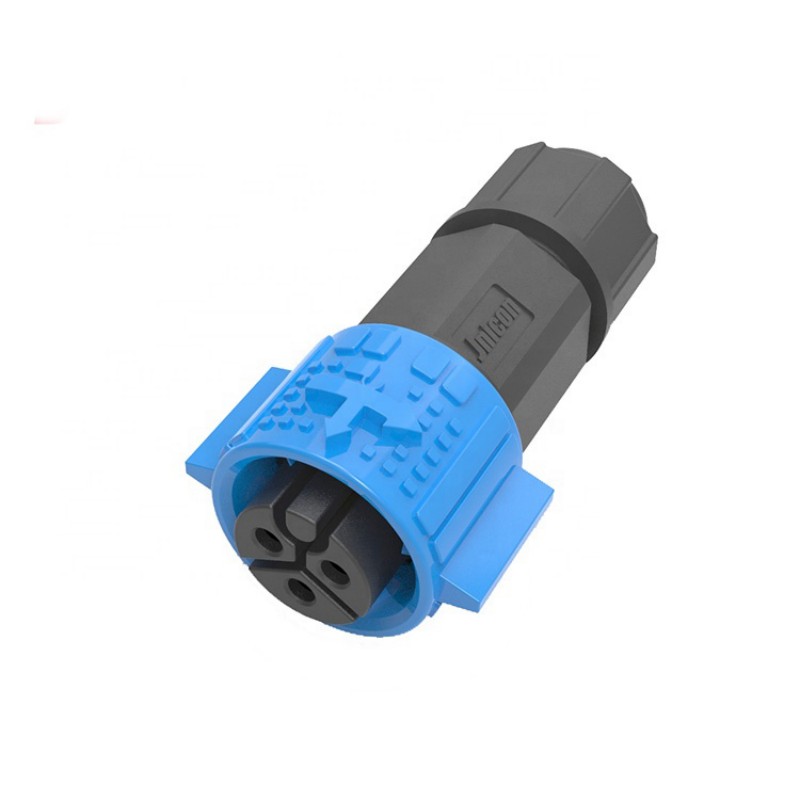

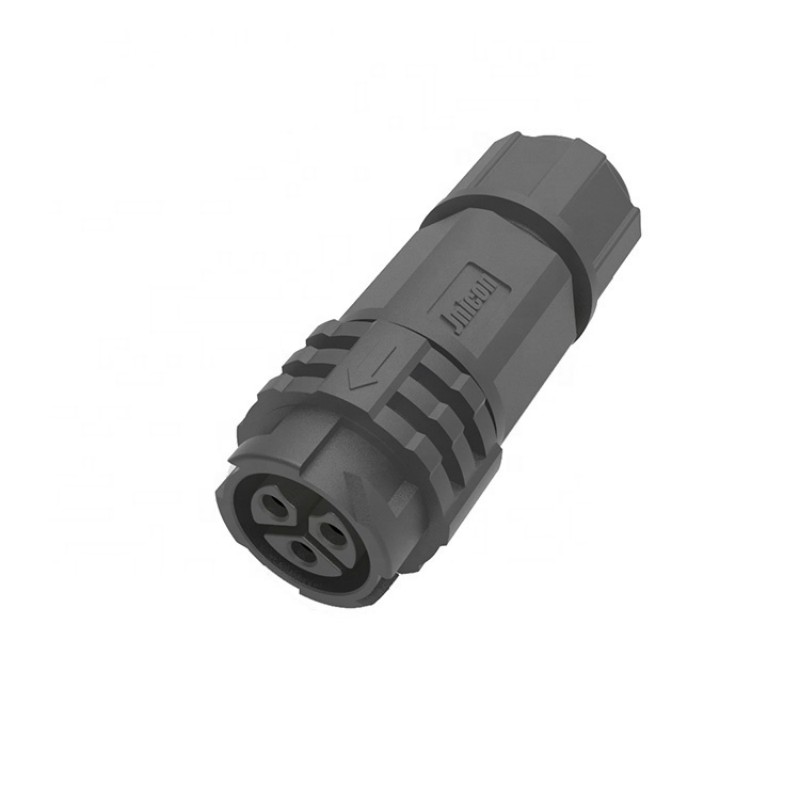

China Jnicon M19 IP67 Waterproof Cable Connectors - Reliable Suppliers and Factory for Custom Solutions
Product Feature
⊕ Advanced structure: Self-locking.
⊕ Multiple pin: 2, 3, 4, 5, 6, 7, 8, 9 to 22pin are optional.
* 2, 3, 4, 5pin for power
* 2+3, 2+4pin for combined power and signal.
* 8, 9, 12, 14, 16, 18pin for signal.
⊕ Assembly: wire to wire type (without cable), wire to wire by over-molding, wire to board.
⊕ Colors: Black, blue, and yellow supported.
⊕ Cable length: Different cable length can be customized.
Product Specification
Connecting Mode |
Push Locking |
|||||||||||||
Pins No. |
2 |
3 |
4 |
5(3+2) |
6(3+3) |
7(3+4) |
8(3+5) |
9 |
10 |
12(3+9) |
14 |
16 |
18 |
22(2+20) |
Rated Current |
20A |
15A |
15A+5A |
5A |
15A+5A |
|||||||||
Contact Diameter X No. |
ø2.4 |
ø2.0 |
ø2.4+ø0.8 |
ø1.0 |
ø2.0+ø0.8 |
|||||||||
Withstanding Voltage |
1500V |
1000V |
1000V |
500V |
500V |
|||||||||
Protective Level |
IP67 |
|||||||||||||
Cable Gauge |
1.5mm²-2.5mm² |
0.5mm²+1.5mm² |
0.3mm²-0.5mm² |
|||||||||||
Diameter Range |
ø 4.5 – ø 11 |
|||||||||||||
Operating Tem. |
-40℃ ~ 105℃ |
|||||||||||||
Copper Needles Material |
Copper Alloy |
|||||||||||||
Flame Resistant |
94-V0 |
|||||||||||||
Our Services
* We will help you to select the right product.
* Strong technical support by our salesman and R&D team.
* Provide production photo & video of your order.
* Fast delivery cause we are the original factory.
* After sales services, 5 years warranty.
* OEM & ODM acceptable.
Certifications
Our products are certificated by UL, CE, CQC, TUV, RoHS, CCC, IP67/IP68. Contact us to get the HD pictures of our certification! The quality is very good, if you need any other certification, we can do it for you too.
Contact Us
Frequently Asked Questions
-
What is the IP rating of the M19 Series waterproof connector?
The M19 Series circular waterproof cable connector is rated IP67, meaning it is fully protected against dust and can withstand temporary immersion in water up to 1 meter deep for 30 minutes.
-
How many pin configurations are available for the M19 Series connector?
The M19 Series offers a wide range of pin options: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, and 22 pins. Configurations cover power-only, signal-only, and combined power & signal layouts.
-
What is the operating temperature range of the M19 connector?
The M19 Series connector operates reliably in temperatures ranging from -40℃ to +105℃, making it suitable for demanding industrial and outdoor applications.
-
Can the cable length and color be customized?
Yes. Cable length can be fully customized according to your project requirements. The connectors are also available in three colors: black, blue, and yellow. OEM & ODM orders are welcome.
-
What certifications does the M19 Series connector hold?
Our products are certified by UL, CE, CQC, TUV, RoHS, CCC, and meet IP67/IP68 protection standards. If you require additional certifications for your market, please contact us and we can arrange it.
-
What assembly types are supported for the M19 Series connector?
The M19 Series supports three assembly types: wire-to-wire (without cable), wire-to-wire by over-molding, and wire-to-board. This flexibility makes it compatible with a wide variety of industrial wiring applications.
